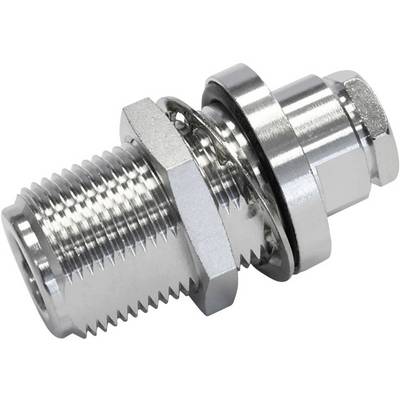

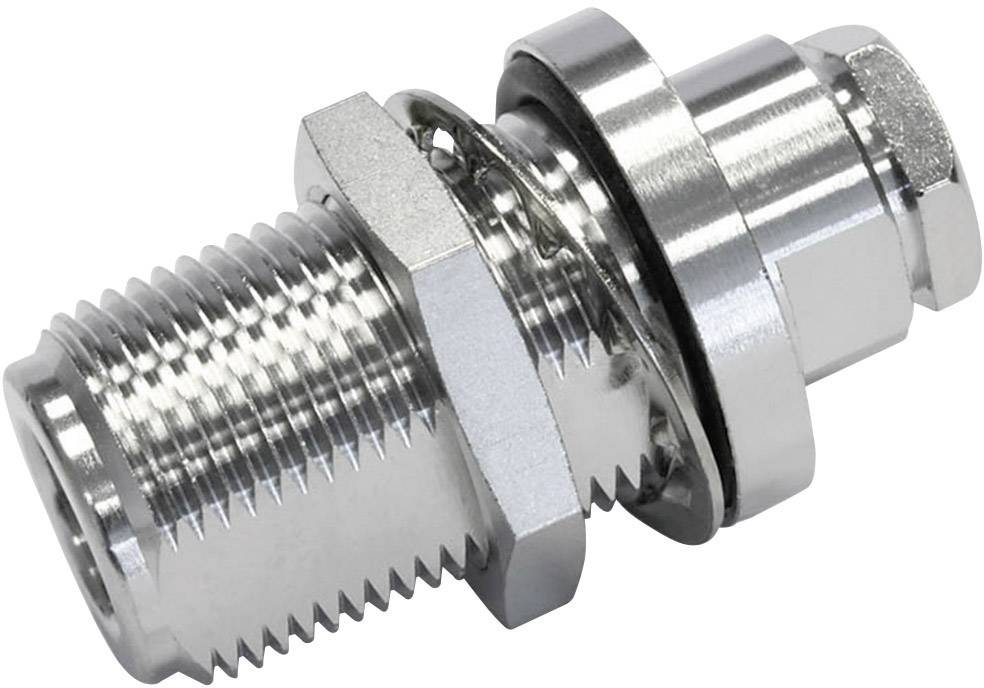

Name: Telegärtner 100024106 100024106 N connector Socket, straight 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1090918
Availability: InStock

Highlights & Details

N-Plug connection

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Cable category: RG 58 C/U

Product type: N connector

Connector type: Socket, straight

Impedance: 50 Ω

Connection: Plug & Clip

Content: 1 pc(s)

Cable Ø: 4.95 mm

Manufacturer part #: 100024106

Insulation resistance: 5 GΩ

Insulation material: PTFE

RoHS-compliant: Yes

Type: 100024106

Seal type: Screw-on

Factory colour: Silver (metallic)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1090918 Telegärtner 100024106 100024106 N connector Socket, straight 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090918 Telegärtner 100024106 100024106 N connector Socket, straight 50 Ω 1 pc(s)

Description

The series includes widespread coaxial connectors medium size N. They have a screw connection and are included in the plug face waterproof. This may vary depending on the design up to a frequency of 11 GHz. The shaft resistance amounts to 50 Ω. Connector variants are available for flexible, semi-flex, semi-rigid and corrugated sheath cable. Cable, depending on the design by crimping, terminals or soldering. Due to their constructive in very good electrical values in the Return Loss (VSWR) and inter-modulation is achieved. The connectors of the series N are vibration-proof and are used in signal and data transmission. N connectors are particularly suitable for coaxial connections for the transmission medium performance at high frequencies.
