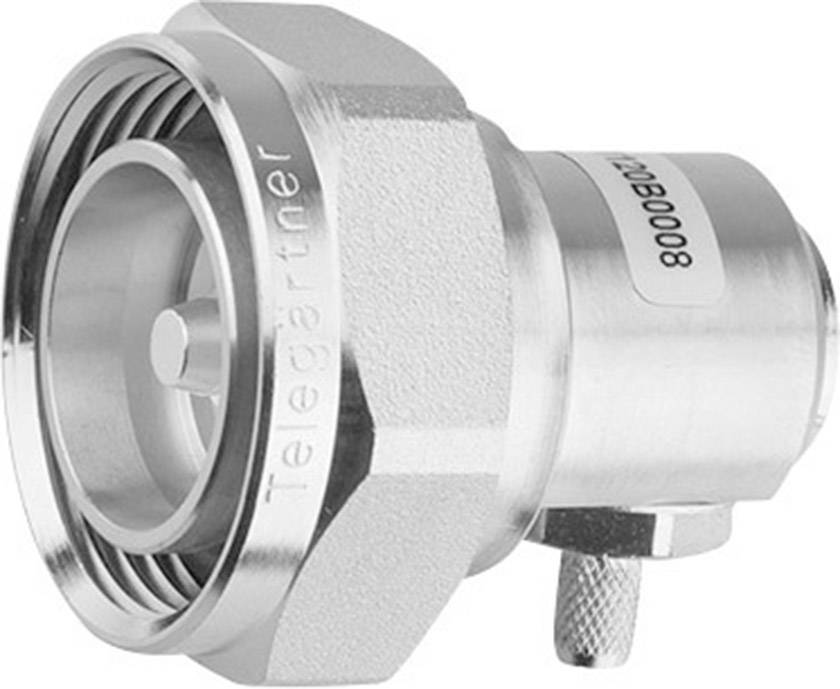

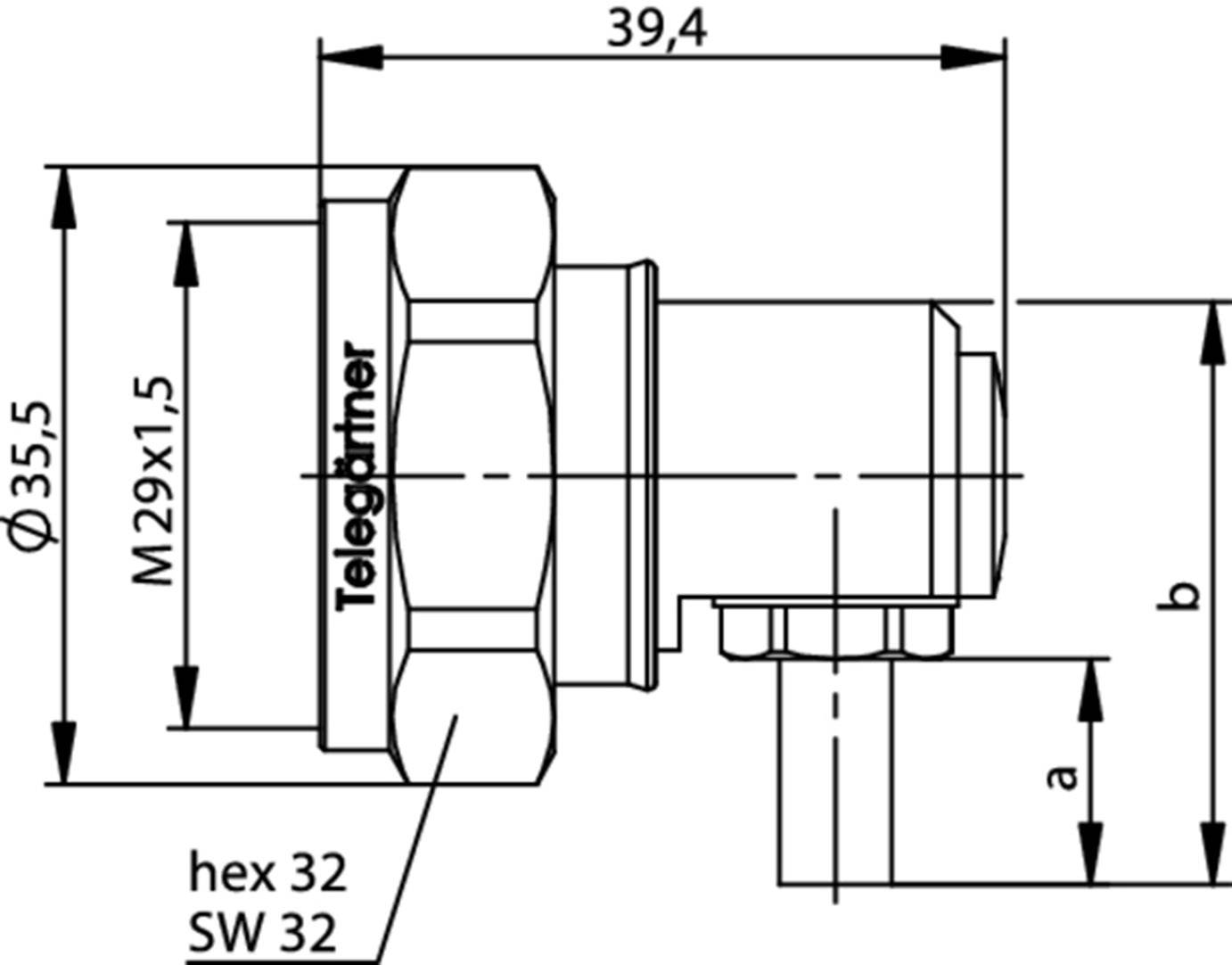

Name: Telegärtner 100024418 100024418 7-16 DIN connector Plug, right angle 50 Ω 1 pc(s)
Brand: Telegärtner
SKU: 1366378
Availability: InStock

Highlights & Details

7-16 DIN connector

The plug socket - name, according to the shape of the inner conductor defined.
This text is machine translated.

Technical specifications

Cable category: RG 214/U

Product type: 7-16 DIN connector

Connector type: Plug, right angle

Impedance: 50 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 10.80 mm

Max. frequency: 7.5 GHz

Case material: Brass tin plated

Manufacturer part #: 100024418

Insulation material: PTFE

Contact material: Brass silver plated

RoHS-compliant: Yes

Temperature range: -55 - 155 °C

Type: 100024418

Seal type: Screw-on

Version: Connection cable

Weight: 100 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1366378 Telegärtner 100024418 100024418 7-16 DIN connector Plug, right angle 50 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1366378 Telegärtner 100024418 100024418 7-16 DIN connector Plug, right angle 50 Ω 1 pc(s)

Description

The 7-16 (DIN) series is a very popular coax connector for use in Mobile Radio equipment. It is a larger sized precision weatherproof connector supplied with a thread coupling. Depending on design, this connector can be used up to 7.5 GHz. Only 50 Ω impedances are available. Connector styles are available for flexible, conformable, semi-rigid and corrugated cable types. Solder, clamp or crimp cable terminations are used for this series. Applications for these connectors are typically radio base station interconnection and test equipment where vibration resistance and environmental protection is required. Special design techniques for this series of connectors have resulted in previously unattainable levels of performance in regard to return loss (VSWR) and intermodulation distortion. 7-16 connectors allow high-power high-frequency transmission in coaxial lines.
