Thermo TECH Polyester Heating foil self-adhesive 230 V AC 4 W IP rating IPX4 (Ø) 140 mm

A round, spiral-shaped pressure sensor with a cable leading from the centre to the outer edge is used to measure pressure changes.
Product type
Heating foil
Operating voltage
230 V AC
Power
4 W
IP rating
IPX4
Surface temperature
40 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 24 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Polyester heating film, self-adhesive

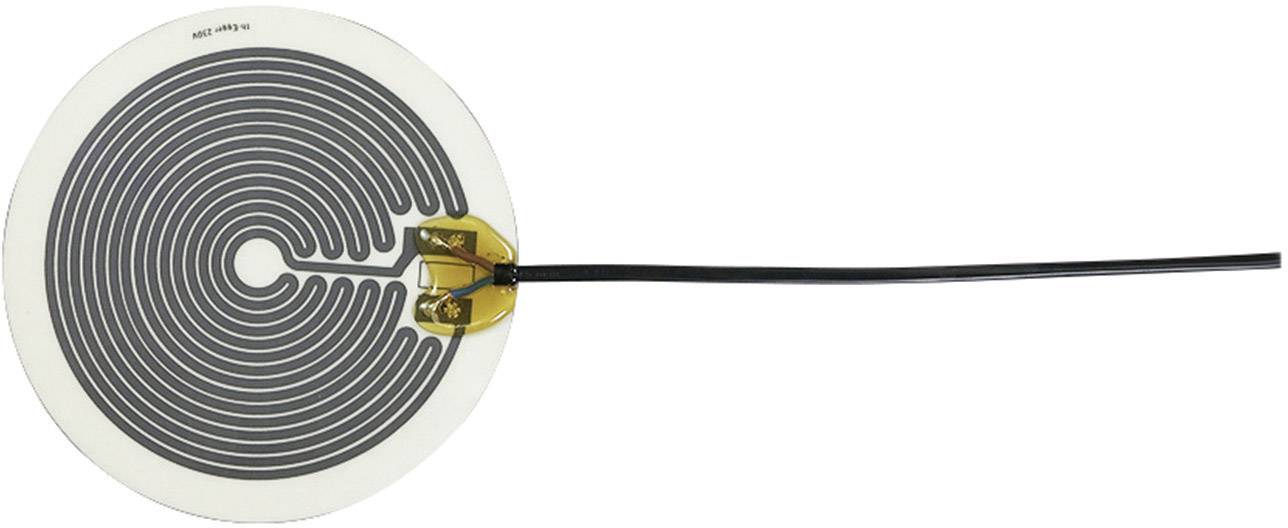

  • Symbol image for Thermo TECH Polyester Heating foil self-adhesive 230 V AC 4 W IP rating IPX4 (Ø) 140 mm

Technical specifications

  • Cable type: H03VVH2-F 2 x 0.75 mm²
  • Height at the connection: 5 mm
Product type

Heating foil

Features

self-adhesive

Operating voltage

230 V AC

4 W

Material

Polyester

Material thickness

0.4 mm

Connection

Open end cable

Lead length

25 cm

IPX4

Surface temperature

40 °C

(Ø)

140 mm

Dim

(Ø) 140 mm

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 1216686 Thermo TECH Polyester Heating foil self-adhesive 230 V AC 4 W IP rating IPX4 (Ø) 140 mm

User & Safety Instructions

User & Safety Instructions 1216686 Thermo TECH Polyester Heating foil self-adhesive 230 V AC 4 W IP rating IPX4 (Ø) 140 mm

Description

Heating foil made from Polyester with self adhesive rear side, splice- and rupture proof, suitable for universal application areas. For protection against freezing temperatures; surfaces, equipment, housings, circuits, even various fluids, as well as anti-fog protection for bathroom mirror. Highest Security- and performance quallity. With sealed connection cable.

This text is machine translated.

Hints

Due to high heating power, in relation to the surface, the heating film depending on the situation, without sufficient cooling or temperature control, overheat and be damaged! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
