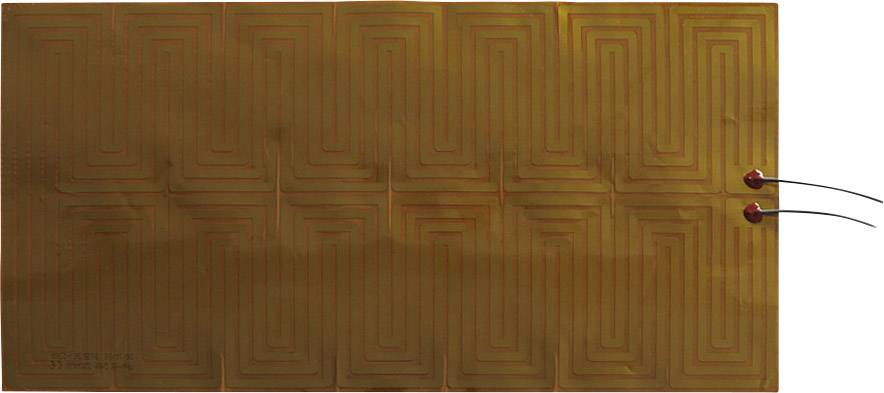

Thermo TECH Polyimide Heating foil self-adhesive 24 V DC, 24 V AC 100 W IP rating IPX4 (L x W) 420 mm x 220 mm
Product type
Heating foil
Operating voltage
24 V DC
24 V AC
Power
100 W
IP rating
IPX4
Surface temperature
+60 °C
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 59.99 / piece)
€ 59.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details
Polyimide heating film, self-adhesive
Our service for you
Technical specifications
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
24 V DC
24 V AC
100 W
- Material
Polyimide
- Material thickness
0.2 mm
- Connection
Open end cable
- Lead length
250 mm
IPX4
- Surface temperature
+60 °C
- Length
420 mm
- Width
220 mm
- Dim
(L x W) 420 mm x 220 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1594201 Thermo TECH Polyimide Heating foil self-adhesive 24 V DC, 24 V AC 100 W IP rating IPX4 (L x W) 420 mm x 220 mm
User & Safety Instructions
User & Safety Instructions 1594201 Thermo TECH Polyimide Heating foil self-adhesive 24 V DC, 24 V AC 100 W IP rating IPX4 (L x W) 420 mm x 220 mm
Description
Hints
Due to the high heating power, relative to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and thus be destroyed! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
