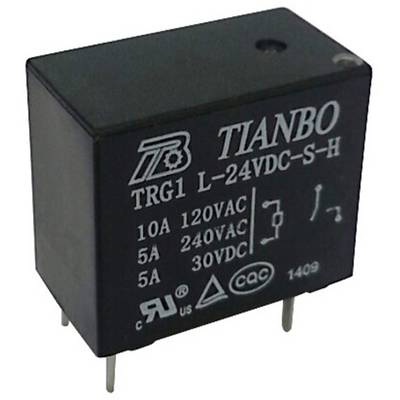

Tianbo Electronics TRG1 L-S-H 24VDC PCB relay 24 V DC 3 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
24 V DC
Control mode
monostable, 1 coil
Contact type
1 maker
Switching voltage (max.)
30 V DC
277 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
Technical specifications
- Product type
PCB relay
- Type
TRG1 L-S-H 24VDC
- Coil nominal voltage
24 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
2880 Ω
- Coil voltage rating
0.2 W
- Contact type
1 maker
- Contact material
Silver alloy
- Switching voltage (max.)
30 V DC
277 V AC
- Switching current (max.)
3 A
- Max. switching capacity
600 VA
90 W
- Connection
Solder pins
- Response time
15 ms
- Fall time
4 ms
- Electrical lifespan
100 000 Switching cycles
- Durability
1000 0000 switching cycles
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
18.2 mm
- Width
10.2 mm
- Height
19.3 mm
- Dim
(L x W x H) 18.2 x 10.2 x 19.3 mm
- Content
1 pc(s)
