Buy TracoPower TEP 75-2413WI-CMF DC/DC converter (module) 24 V DC 15 V DC 5 A 75 W No. of outputs: 1 x Content 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

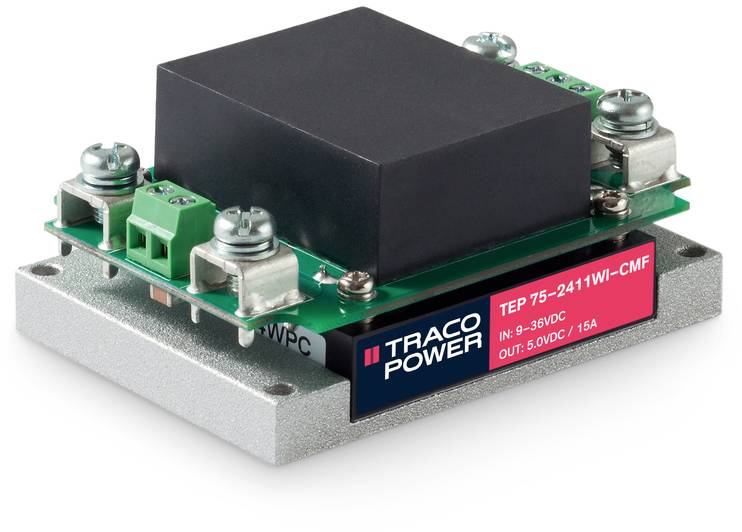

Electronic component by Traco Power with the marking 'TEP 75-2411WI-CMF', input 9-36V DC, output 5.0V DC/15A.

Electronic component by Traco Power with the marking 'TEP 75-2411WI-CMF', input 9-36V DC, output 5.0V DC/15A.

TracoPower

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: DC/DC converter (module)

Type: TEP 75-2413WI-CMF

Nominal voltage: 24 V DC

Min. input voltage: 9 V DC

Input voltage (max.): 36 V DC

No. of outputs: 1 x

Output voltages: 15 V DC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Efficiency (max.): 88 %

: 75 W

Insulation voltage: 1600 V DC

Connection: Screw terminal

Operating temperature (min.): -40 °C

Operating temperature (max.): 75 °C

Dim: (L x W x H) 85 x 61 x 38.8 mm

Height: 38.8 mm

Length: 85 mm

Width: 61 mm

Output voltage (max.): 15 V DC

Output voltage (min.): 15 V DC

Weight: 97 g

Content: 1 pc(s)

Type: TEP 75-2413WI-CMF

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1510116 TracoPower TEP 75-2413WI-CMF DC/DC converter (module) 24 V DC 15 V DC 5 A 75 W No. of outputs: 1 x Content 1 pc(s)

Datasheet 1510116 TracoPower TEP 75-2413WI-CMF DC/DC converter (module) 24 V DC 15 V DC 5 A 75 W No. of outputs: 1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1510116 TracoPower TEP 75-2413WI-CMF DC/DC converter (module) 24 V DC 15 V DC 5 A 75 W No. of outputs: 1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 1510116 TracoPower TEP 75-2413WI-CMF DC/DC converter (module) 24 V DC 15 V DC 5 A 75 W No. of outputs: 1 x Content 1 pc(s)

Description

4:1 input range, chassis mounting with screw terminal block and filter according to EN 55022, class A. Approvals for railways according to EN 50155, short-circuit proof, external on/off, adjustable output voltage with ext. Resistance, reverse polarity protection at the entrance.

This text is machine translated.

Description

4:1 input range, chassis mounting with screw terminal block and filter according to EN 55022, class A. Approvals for railways according to EN 50155, short-circuit proof, external on/off, adjustable output voltage with ext. Resistance, reverse polarity protection at the entrance.

This text is machine translated.
