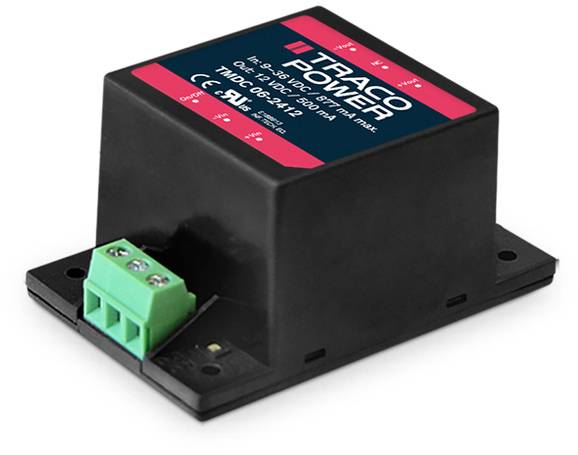

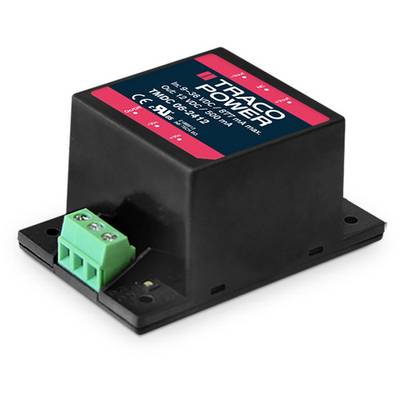

TracoPower TMDC 06-4813 DC/DC converter 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Minimum order quantity: 10
Total (€ 41.17 / piece)
€
Technical specifications
- Product type
DC/DC converter
- Type
TMDC 06-4813
- Min. input voltage
18 V DC
- Input voltage (max.)
75 V DC
- No. of outputs
1 x
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
84 %
6 W
- Insulation voltage
3000 V DC
- Connection
Screw terminal
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 53 x 34 x 26.50 mm
- Height
26.50 mm
- Length
53 mm
- Width
34 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15.0 V DC
- Output voltage (min.)
15.0 V DC
- Weight
49 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3372238 TracoPower TMDC 06-4813 DC/DC converter 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3372238 TracoPower TMDC 06-4813 DC/DC converter 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372238 TracoPower TMDC 06-4813 DC/DC converter 400 mA 6 W No. of outputs: 1 x Content 1 pc(s)
