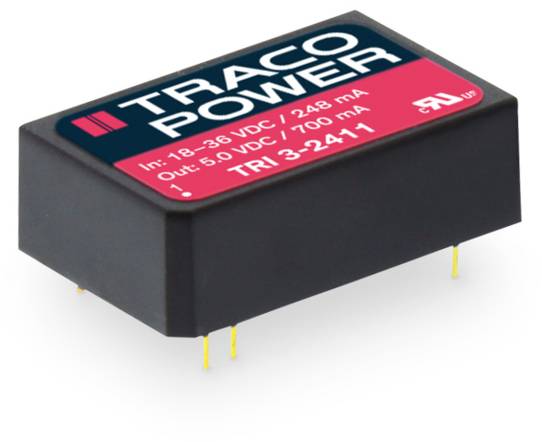

TracoPower TRI 3-2413 DC/DC converter (print) 235 mA 3.5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 47.99 / piece)
€ 47.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TRI 3-2413
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Max. output current
235 mA
- Output current (max.) - rounded
235 mA
- Efficiency (max.)
87 %
3.5 W
- Insulation voltage
5000 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 31.80 x 20.30 x 12 mm
- Height
12 mm
- Length
31.80 mm
- Width
20.30 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15.0 V DC
- Output voltage (min.)
15.0 V DC
- Weight
15.50 g
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3372312 TracoPower TRI 3-2413 DC/DC converter (print) 235 mA 3.5 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 3372312 TracoPower TRI 3-2413 DC/DC converter (print) 235 mA 3.5 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3372312 TracoPower TRI 3-2413 DC/DC converter (print) 235 mA 3.5 W No. of outputs: 1 x Content 1 pc(s)
