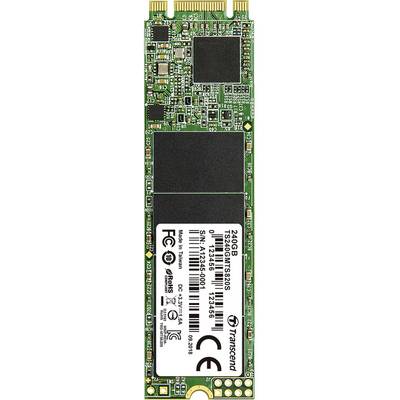

Name: Transcend 820S 240 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Retail TS240GMTS820S
Brand: Transcend
SKU: 1930668
Availability: InStock

Highlights & Details

TRANSCEND SSD M.2 MTS820 240GB TLC

240 GB storage capacity
M.2 SSD (SATA III 6 GB/s)
TLC NAND flash memory
Free download of Transcend SSD Scope software
This text is machine translated.

Technical specifications

Product type: SATA M.2 internal SSD 2280

Series: 820S

Form factor: M.2 Module 2280

Interfaces: M.2 SATA 6 Gbps

Memory capacity: 240 GB

Reading: 540 MBps

Writing: 500 MBps

Design height: 3.5 mm

NAS compatibility (yes/no): Yes

Width: 22 mm

Height: 3.5 mm

Depth: 80 mm

Type: Retail

Operating temperature (max.): 70 °C

Operating temperature (min.): 0 °C

Operating temperature range: 0 up to 70 °C

total bytes written (TBW) (max.): 80 TB

Chip set: 3D NAND Flash

Weight: 8 g

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1930668 Transcend 820S 240 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Retail TS240GMTS820S

Warranty Terms

Warranty Terms 1930668 Transcend 820S 240 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Retail TS240GMTS820S

Description

SATA III 6Gb/s MTS820 M.2 SSD
Equipped with a SATA III 6Gb/s interface and a very compact design, Transcends MTS820S M.2 SSD is ideally suited for small applications, which offer very limited space but still require a high performance. The MTS820S M.2 SSD is extremely secure thanks to high-quality flash chips and an advanced firmware algorithm.

Properties
Space-saving M.2 SSD (80mm) – ideal for laptops and Ultrabooks
SATA III 6Gb/s interface and SLC caching technology for outstanding transmission speed
RAID and LDPC (Low-Density Parity Check) coding for special data security
Supports the DevSleep mode, which completely switches off the SATA interface and thus saves more power than a conventional HDD
DDR3 DRAM cache
Supports S.M.A.R.T., TRIM and NCQ commands

This text is machine translated.

Scope of delivery

M.2 SSD.

Description

SATA III 6Gb/s MTS820 M.2 SSD
Equipped with a SATA III 6Gb/s interface and a very compact design, Transcends MTS820S M.2 SSD is ideally suited for small applications, which offer very limited space but still require a high performance. The MTS820S M.2 SSD is extremely secure thanks to high-quality flash chips and an advanced firmware algorithm.

Properties
Space-saving M.2 SSD (80mm) – ideal for laptops and Ultrabooks
SATA III 6Gb/s interface and SLC caching technology for outstanding transmission speed
RAID and LDPC (Low-Density Parity Check) coding for special data security
Supports the DevSleep mode, which completely switches off the SATA interface and thus saves more power than a conventional HDD
DDR3 DRAM cache
Supports S.M.A.R.T., TRIM and NCQ commands

This text is machine translated.
