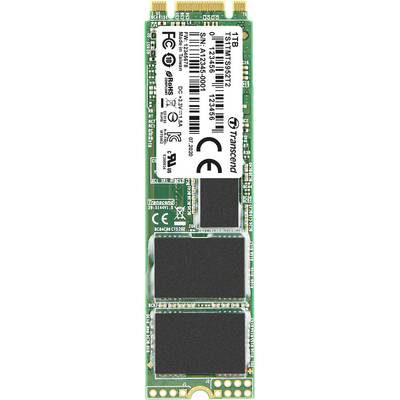

Name: Transcend MTS952T2 1 TB NVMe/PCIe M.2 internal SSD M.2 SATA 6 Gbps Industrial TS1TMTS952T2
Brand: Transcend
SKU: 2302571
Availability: BackOrder

Highlights & Details

TRANSCEND MTS952T2 SATA III M.2 SSD

Memory capacity: 1 TB
With DRAM cache
Space-saving M.2 form factor (80mm) - ideal for small portable PCs
30µ" PCB gold contacts
Key components are reinforced with Corner Bond technology as standard
Endurance: 3K P/E cycles (program/erase cycles) guaranteed
Dynamic thermal throttling
Advanced Global Wear Leveling and block management for exceptional reliability
Improved garbage collection
Built-in LDPC ECC (Error Correction Code) functionality
Improved S.M.A.R.T. function for special durability
Complies with RoHS 2.0 standards
TRIM Command for better performance
NCQ Command for better performance
Energy-saving DevSleep (Device Sleep) mode

Technical specifications

Product type: NVMe/PCIe M.2 internal SSD

Series: MTS952T2

Form factor: M.2 Module 2280

Interfaces: M.2 SATA 6 Gbps

Memory capacity: 1 TB

Reading: 560 MBps

Writing: 520 MBps

IOPS read speed (max.): 95000 IOPS

IOPS write speed (max.): 85000 IOPS

Width: 80 mm

Height: 22 mm

Depth: 3.58 mm

Type: Industrial

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2302571 Transcend MTS952T2 1 TB NVMe/PCIe M.2 internal SSD M.2 SATA 6 Gbps Industrial TS1TMTS952T2

User & Safety Instructions

User & Safety Instructions 2302571 Transcend MTS952T2 1 TB NVMe/PCIe M.2 internal SSD M.2 SATA 6 Gbps Industrial TS1TMTS952T2

Warranty Terms

Warranty Terms 2302571 Transcend MTS952T2 1 TB NVMe/PCIe M.2 internal SSD M.2 SATA 6 Gbps Industrial TS1TMTS952T2

Description

Transcend's MTS952T2 M.2 SSD offers high transfer speeds thanks to SATA III 6Gb/s interface. The SSD features the latest 3D NAND technology for high memory efficiency, 30µ" PCB gold contacts and Corner Bond technology for long durability, DRAM cache for fast access, extended operating temperature range from -20°C to 75°C and a shelf life of 3K write/erase cycles for reliable operation.
