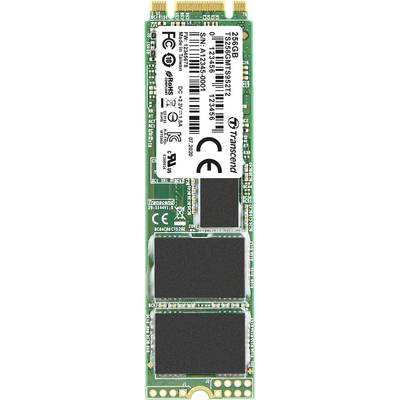

Name: Transcend MTS952T2 256 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Industrial TS256GMTS952T2
Brand: Transcend
SKU: 2302573
Availability: InStock

Highlights & Details

TRANSCEND MTS952T2 SATA III M.2 SSD

Memory capacity: 256 GB
With DRAM cache
Space-saving M.2 form factor (80mm) - ideal for small portable PCs
30µ" PCB gold contacts
Key components are reinforced with Corner Bond technology as standard
Endurance: 3K P/E cycles (program/erase cycles) guaranteed
Dynamic thermal throttling
Advanced Global Wear Leveling and block management for exceptional reliability
Improved garbage collection
Built-in LDPC ECC (Error Correction Code) functionality
Improved S.M.A.R.T. function for special durability
Complies with RoHS 2.0 standards
TRIM Command for better performance
NCQ Command for better performance
Energy-saving DevSleep (Device Sleep) mode

Technical specifications

Product type: SATA M.2 internal SSD 2280

Series: MTS952T2

Form factor: M.2 Module 2280

Interfaces: M.2 SATA 6 Gbps

Memory capacity: 256 GB

Reading: 560 MBps

Writing: 520 MBps

IOPS read speed (max.): 95000 IOPS

IOPS write speed (max.): 85000 IOPS

Width: 80 mm

Height: 22 mm

Depth: 3.58 mm

Type: Industrial

Operating temperature (max.): 75 °C

Operating temperature (min.): -20 °C

Operating temperature range: -20 up to 75 °C

total bytes written (TBW) (max.): 3520 TB

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2302573 Transcend MTS952T2 256 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Industrial TS256GMTS952T2

User & Safety Instructions

User & Safety Instructions 2302573 Transcend MTS952T2 256 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Industrial TS256GMTS952T2

Warranty Terms

Warranty Terms 2302573 Transcend MTS952T2 256 GB SATA M.2 internal SSD 2280 M.2 SATA 6 Gbps Industrial TS256GMTS952T2

Description

Transcend's MTS952T2 M.2 SSD offers high transfer speeds thanks to SATA III 6Gb/s interface. The SSD features the latest 3D NAND technology for high memory efficiency, 30µ" PCB gold contacts and Corner Bond technology for long durability, DRAM cache for fast access, extended operating temperature range from -20°C to 75°C and a shelf life of 3K write/erase cycles for reliable operation.

This text is machine translated.

Description

Transcend's MTS952T2 M.2 SSD offers high transfer speeds thanks to SATA III 6Gb/s interface. The SSD features the latest 3D NAND technology for high memory efficiency, 30µ" PCB gold contacts and Corner Bond technology for long durability, DRAM cache for fast access, extended operating temperature range from -20°C to 75°C and a shelf life of 3K write/erase cycles for reliable operation.
