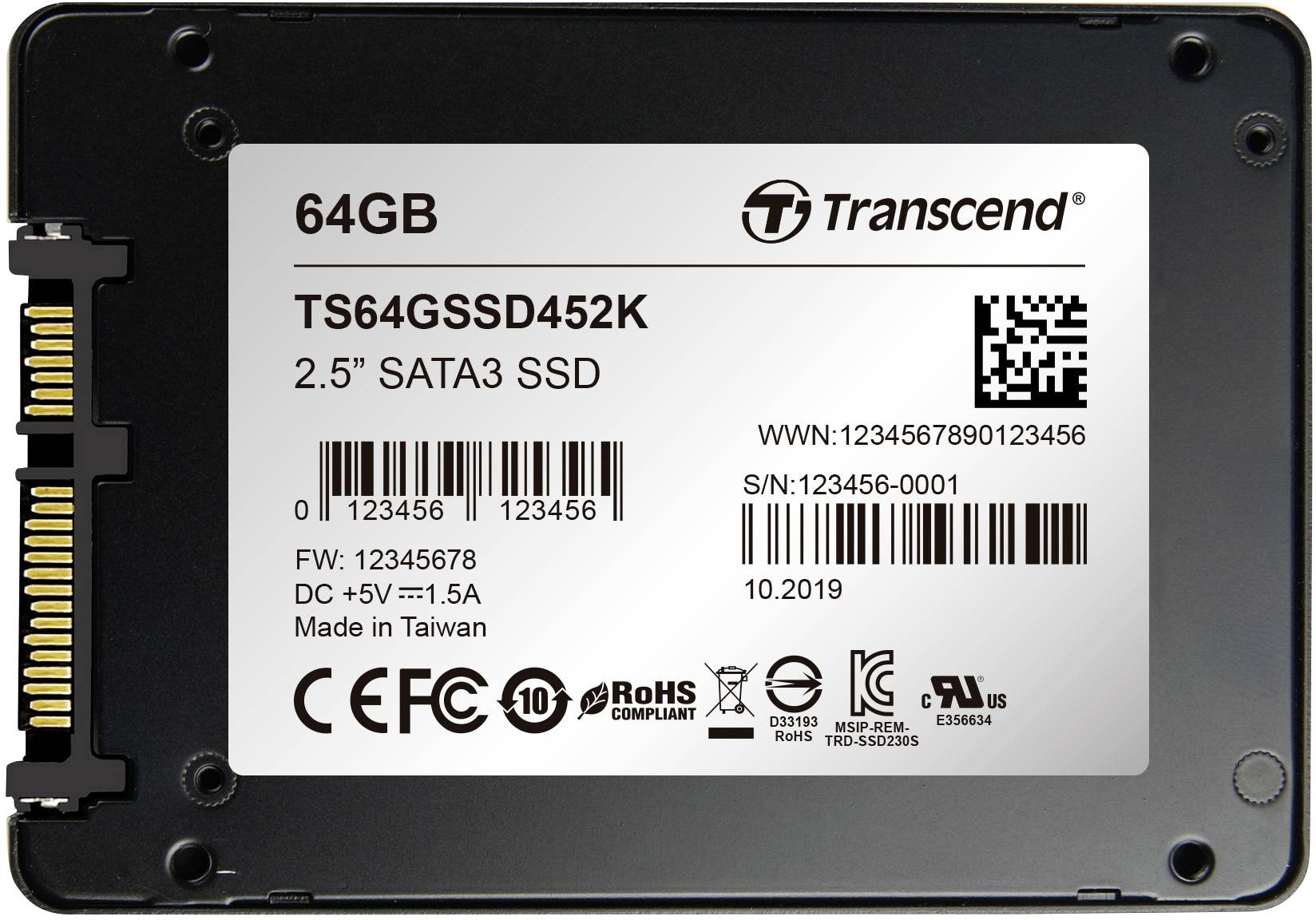

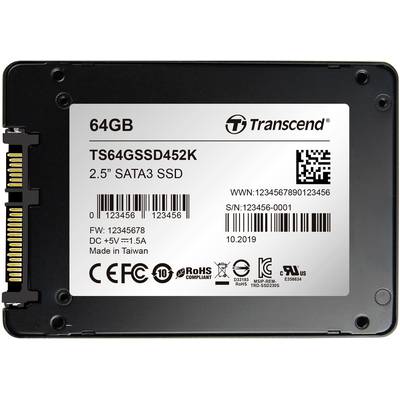

Name: Transcend SSD452K 64 GB 2.5" (6.35 cm) internal SSD SATA 6 Gbps Industrial TS64GSSD452K
Brand: Transcend
SKU: 2302536
Availability: InStock

Highlights & Details

TRANSCEND SSD452K 2.5" SATA SSD

Memory capacity: 64 GB
With DRAM cache
Endurance: 3K P/E cycles (Program/Erase cycles)
Operational reliability in extended temperature range (-40℃ to 85℃)
Advanced Global Wear Leveling and block management for exceptional reliability
Improved garbage collection
Built-in LDPC ECC (Error Correction Code) functionality
Improved S.M.A.R.T. function for special durability
Complies with RoHS 2.0 standards
TRIM Command for better performance
NCQ Command for better performance
Energy-saving DevSleep (Device Sleep) mode (optional)

Technical specifications

Product type: 2.5" (6.35 cm) internal SSD

Series: SSD452K

Format: 2.5 inch

Form factor: 6.35 cm (2.5")

Interfaces: SATA 6 Gbps

Memory capacity: 64 GB

Reading: 560 MBps

Writing: 520 MBps

IOPS read speed (max.): 90000 IOPS

IOPS write speed (max.): 85000 IOPS

Design height: 6.8

Width: 69.85 mm

Height: 6.8 mm

Depth: 100 mm

Type: Industrial

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2302536 Transcend SSD452K 64 GB 2.5" (6.35 cm) internal SSD SATA 6 Gbps Industrial TS64GSSD452K

User & Safety Instructions

User & Safety Instructions 2302536 Transcend SSD452K 64 GB 2.5" (6.35 cm) internal SSD SATA 6 Gbps Industrial TS64GSSD452K

Warranty Terms

Warranty Terms 2302536 Transcend SSD452K 64 GB 2.5" (6.35 cm) internal SSD SATA 6 Gbps Industrial TS64GSSD452K

Description

transcend's SSD452K features a SATA III 6Gb/s interface and the latest 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be stacked vertically. Compared to 64-slice 3D NAND, this increase in density significantly improves storage efficiency. The SSD452K is equipped with DRAM cache for ultra-fast access and is fully tested in-house to ensure reliability in mission-critical applications. It has a durability of 3K program/erase cycles.

transcend also offers the SSD452K as SSD452K-I variant with extended temperature range (-40℃ ~ 85℃), in order to ensure a sustained functionality, improved endurance and optimum reliability in business-critical applications.

This text is machine translated.

Description

transcend's SSD452K features a SATA III 6Gb/s interface and the latest 3D NAND technology, which allows 96 layers of 3D NAND flash chips to be stacked vertically. Compared to 64-slice 3D NAND, this increase in density significantly improves storage efficiency. The SSD452K is equipped with DRAM cache for ultra-fast access and is fully tested in-house to ensure reliability in mission-critical applications. It has a durability of 3K program/erase cycles.

transcend also offers the SSD452K as SSD452K-I variant with extended temperature range (-40℃ ~ 85℃), in order to ensure a sustained functionality, improved endurance and optimum reliability in business-critical applications.

This text is machine translated.
