TRU COMPONENTS 1566769 Heatshrink w/o adhesive Transparent 18 mm 9 mm Shrinkage:2:1 5 m

White corrugated cardboard moving/storage box with hand holes and taped edges, shown closed on a plain background.
Empty, silver tube with a screw cap, commonly used for cream or ointment packaging.

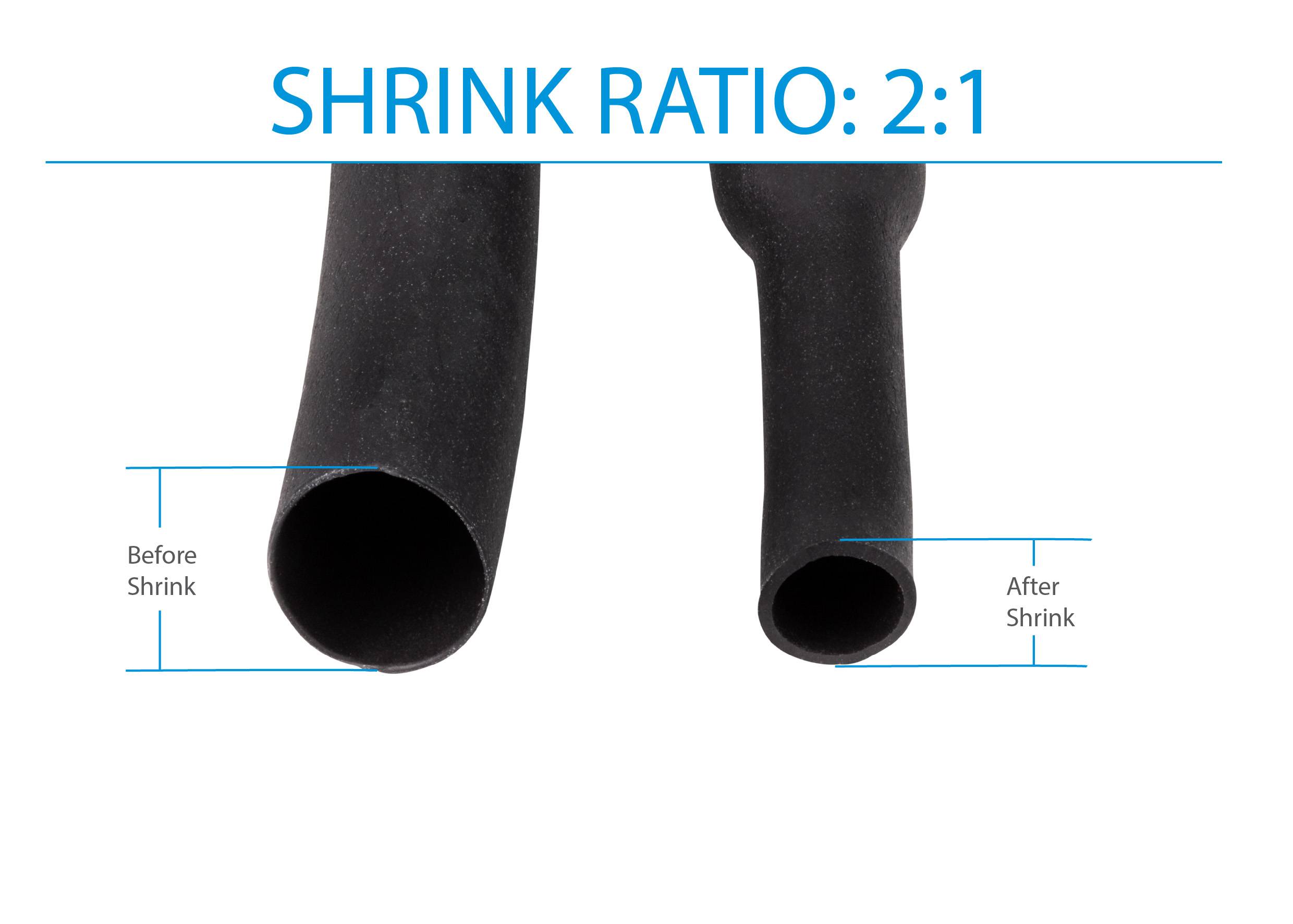

'Image showing two tubes. The left tube labeled 'Before Shrink' is wider than the right tube labeled 'After Shrink.' Text above reads 'Shrink Ratio: 2:1'.'
A blue line indicates a length of 5 meters above a gray rectangular block labeled 18 mm in height, showcasing scale comparison.
1/4
Product type
Heatshrink w/o adhesive
Nominal inside diameter (pre-shrinkage)
18 mm
Nominal diameter (post-shrinkage)
9 mm
Heatshrink features
Chemical-resistant
Highly flexible
Content
5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov
63 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 2.20)
€ 10.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Heat Shrink Tubing In Dispenser Box, No Hot Melt Adhesive 5 m N/A

  • Shrink ratio 2 : 1

Our service for you

Technical specifications

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

18 mm

Nominal diameter (post-shrinkage)

9 mm

Factory colour

Transparent

Shrinkage

2:1

Heatshrink features

Chemical-resistant

Highly flexible

Content

5 m

Shrink temperature (min.)

+70 °C

Min. temperature

-55 °C

Max. temperature

+125 °C

Manufacturer part #

1566769

Halogen-free

No

RoHS-compliant

Yes

Type

B2G5-8 CL

Wall thickness (post-shrinkage)

0.77 mm

Documents & Downloads

Datasheet

Datasheet 1566769 TRU COMPONENTS 1566769 Heatshrink w/o adhesive Transparent 18 mm 9 mm Shrinkage:2:1 5 m

User & Safety Instructions

User & Safety Instructions 1566769 TRU COMPONENTS 1566769 Heatshrink w/o adhesive Transparent 18 mm 9 mm Shrinkage:2:1 5 m

Description

Thin-walled heat shrink tubing for insulation and marking. In a convenient dispenser box for ease of use. For cable marking, cable bundling and electrical insulation for cable connections.
