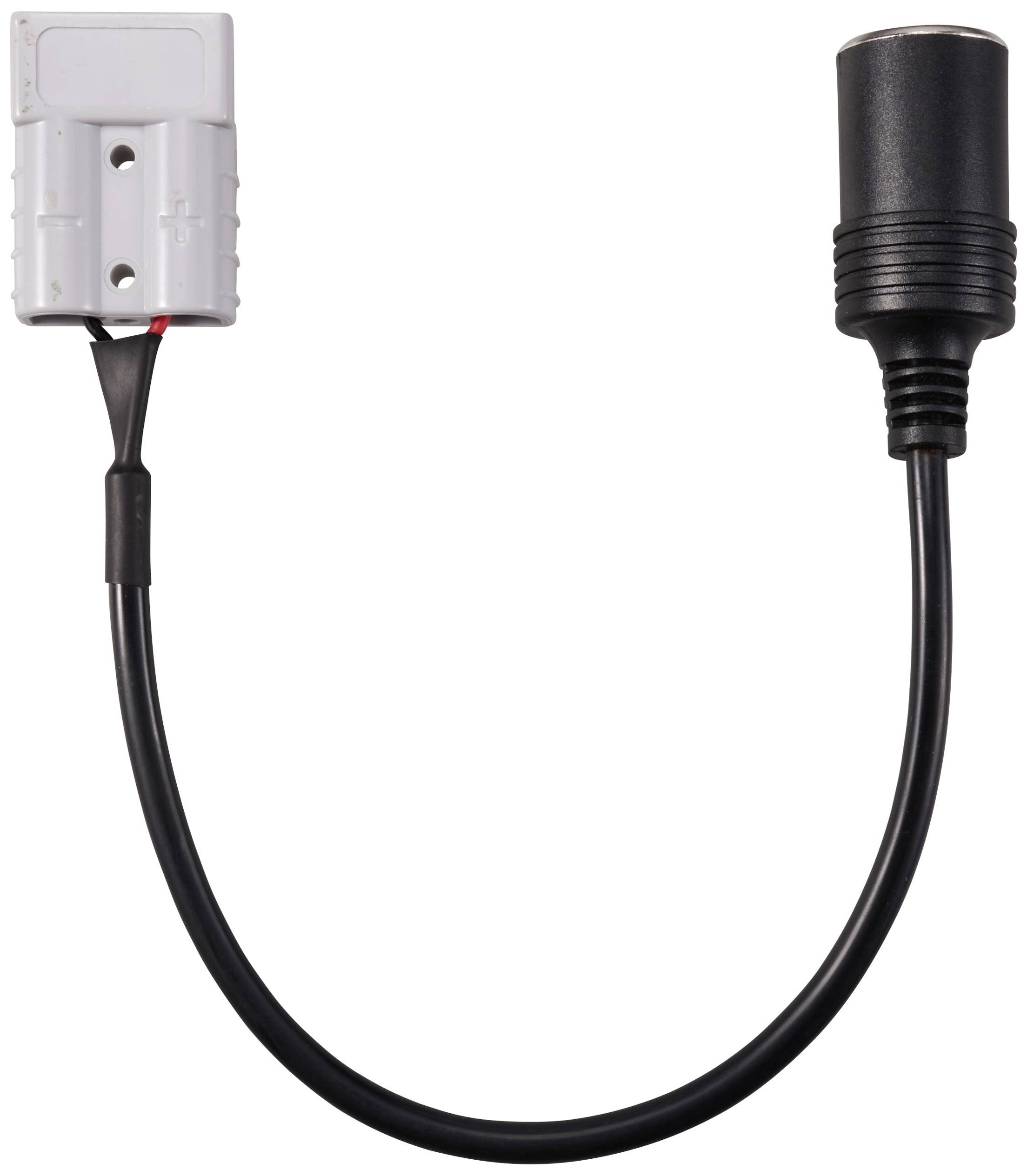

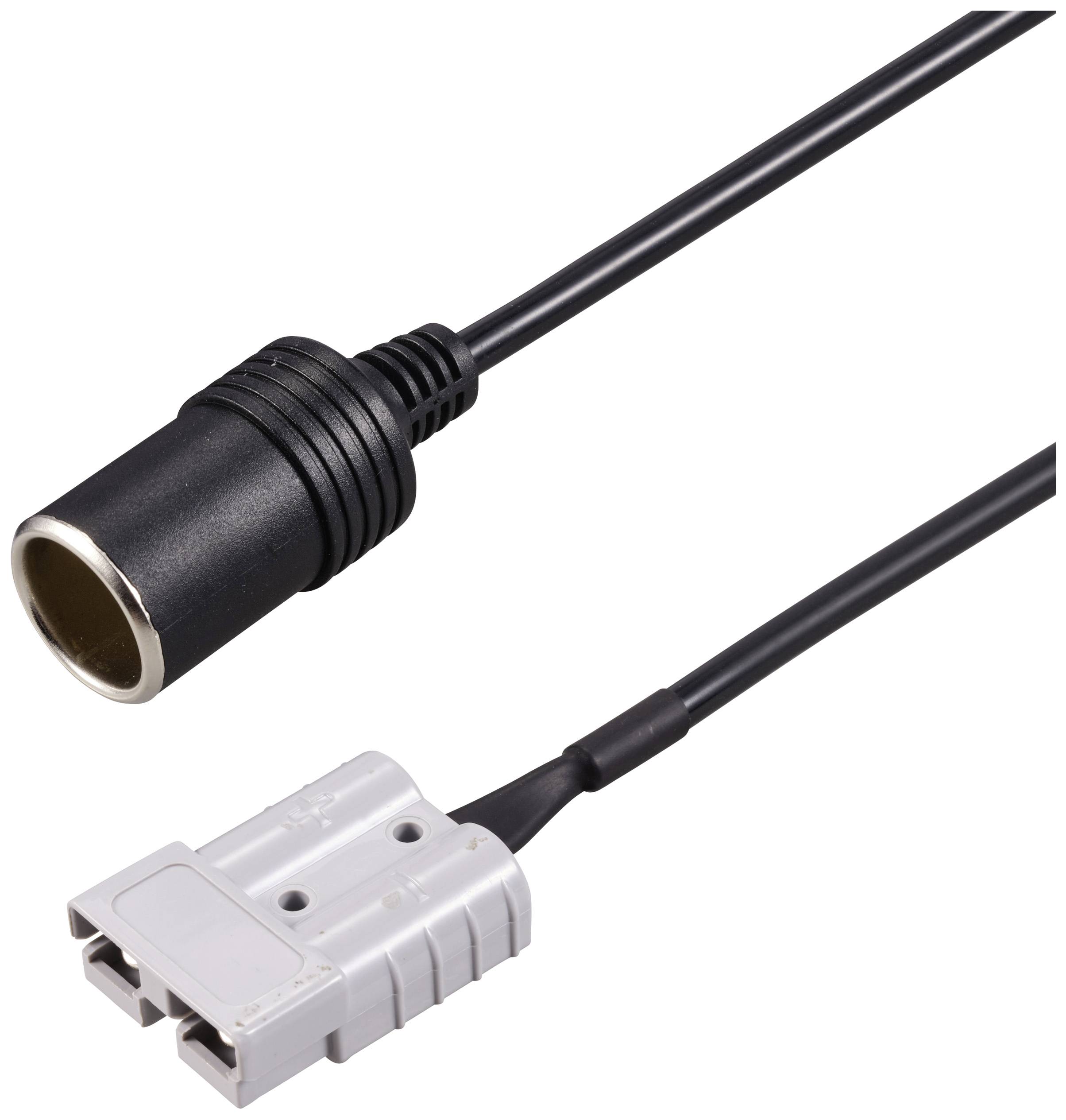

TRU COMPONENTS TC-12195696 Adapter cable 1.30 mm² 8 A Cable length 30 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Technical specifications
- Rated voltage: 12/24 V DC
- Contact resistance: <20 mΩ
- Insulation resistance: >500 MΩ
- Flame retardant grade: UL 94V-0
- Cigarette plug body: PVC costed iron
- Contact: Brass
- Battery connector housing: Polycarbonate (PC)
- Terminal contact: Silver-plated copper
- Cable conductor: Bare copper
- Insulation jacket: PVC / CW-1
- Cable length
30 cm
- Cross section per core
1.30 mm²
- Factory colour
Black
- Current load
8 A
- Cross section
1.30 mm²
- Test current
8 A
- Rated voltage
12/24 V/DC
- Connector cross section
1.30 mm²
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3048924 TRU COMPONENTS TC-12195696 Adapter cable 1.30 mm² 8 A Cable length 30 cm
User & Safety Instructions
User & Safety Instructions 3048924 TRU COMPONENTS TC-12195696 Adapter cable 1.30 mm² 8 A Cable length 30 cm
Description
Hints
These connectors must be used in matching pairs/sets to ensure performance, compatibility and security.
