Name: TRU COMPONENTS TC-12773944 Filter regulator G 1/4 Enclosure material Aluminium Sealant NBR
Brand: TRU COMPONENTS
SKU: 3193486
Availability: InStock

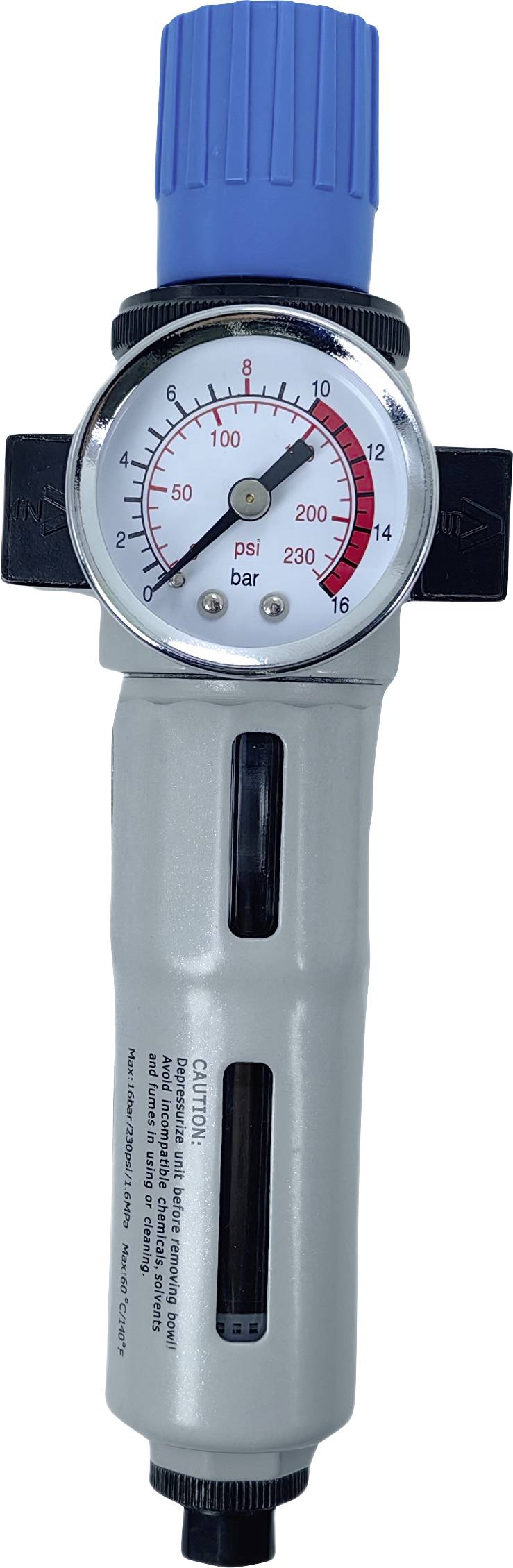

Air pressure regulator with a dial indicating 0 to 230 psi, and a blue adjustment knob.

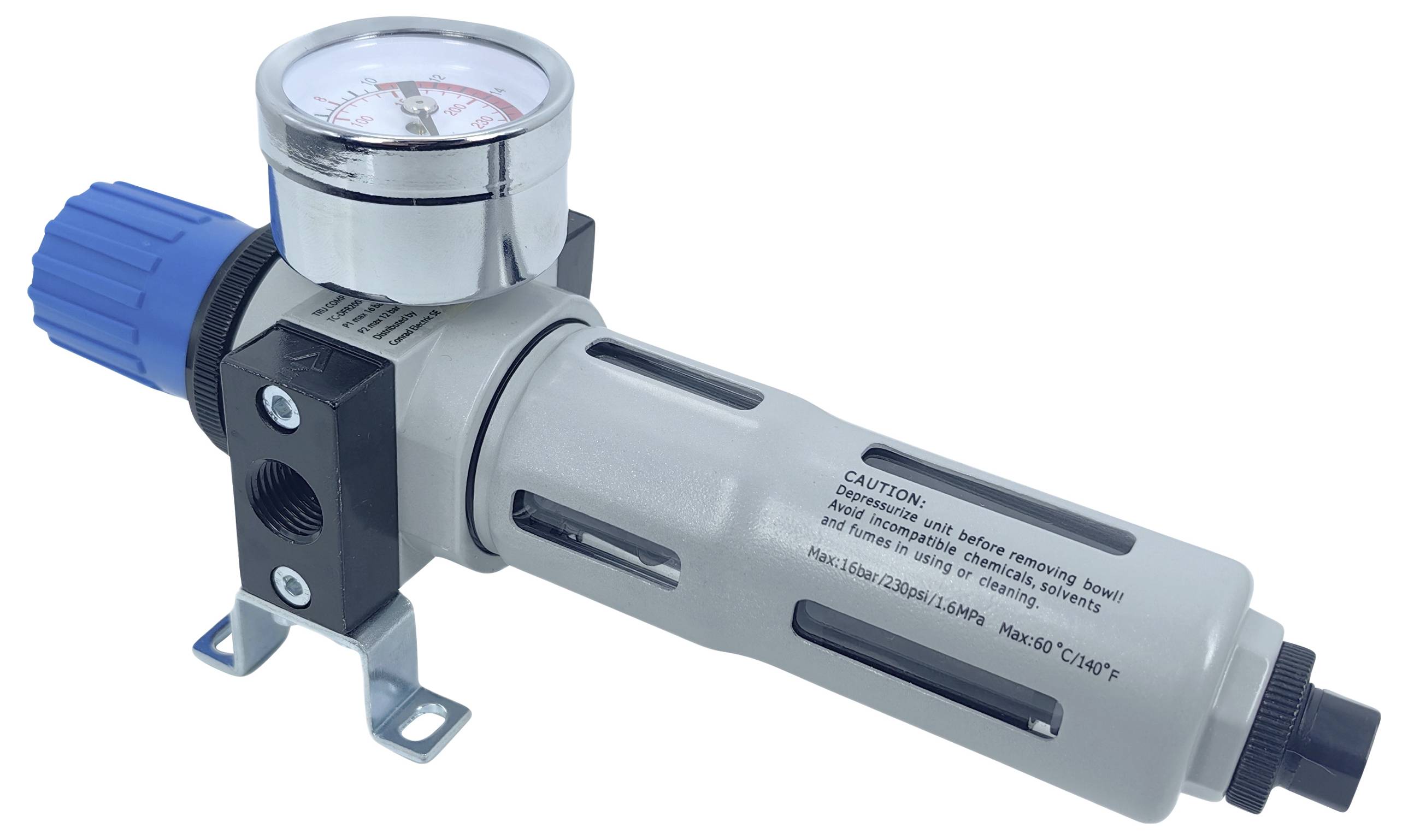

Pressure regulator with manometer, blue control knob and grey housing. Mountable holder and warning notice on the housing.

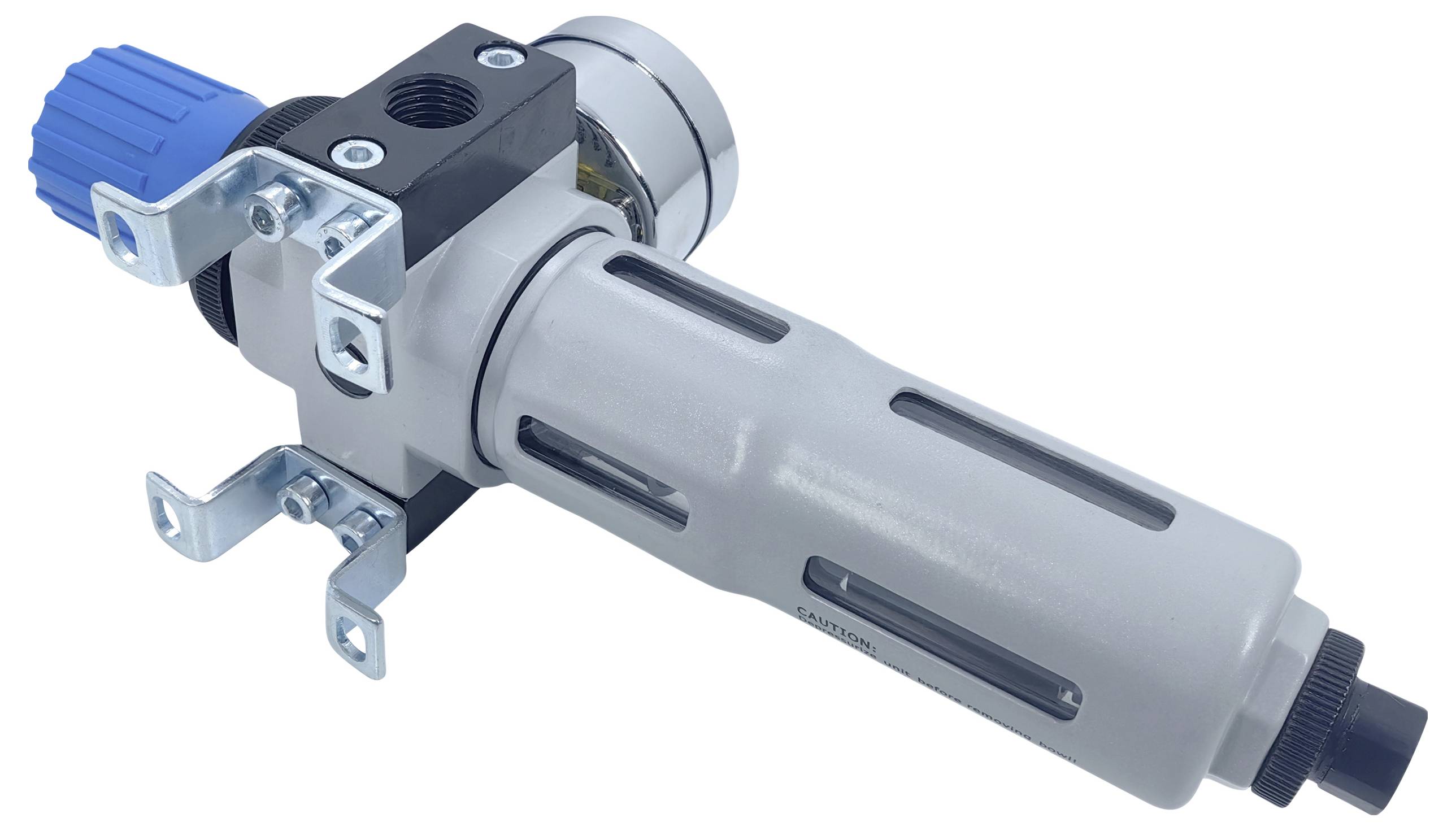

Device image shows a pneumatic compressed air regulator and filter module with a blue adjustment screw and metal brackets.

Pressure regulator with blue rotary knob and manometer on top. White housing, mounted on metal bracket. Text inscription: 'CAUTION: Release unit before removing bowl'.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 45.99 / piece)

€ 45.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Filter regulator G 1/4" compressed air 0.5 - 12 bar, automatic drain

Port size: G1/4"
Gauge thread: G1/8"
Max. flowrate: 1700 l/min
Max. input pressure: 16 Bar
Regulating pressure range: 0.5 - 12 bar

Technical specifications

Operating medium: Compressed Air

Type: TC-12773944

Product type: Filter regulator

Enclosure material: Aluminium

Connection: G 1/4

Max. flow: 1700 L/min

Max. operating pressure: 12 bar

Manufacturer part #: TC-12773944

Operating pressure (min.): 0.5 bar

Sealant: NBR

Medium: Compressed air

Features: P port connector (G1/4)

QNn value: 1700 l/min

Control pressure (max.): 12 bar

Control pressure (min.): 0.5 bar

Max. ambient temperature: +60 °C

Min. ambient temperature: -10 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3193486 TRU COMPONENTS TC-12773944 Filter regulator G 1/4 Enclosure material Aluminium Sealant NBR

User & Safety Instructions

User & Safety Instructions 3193486 TRU COMPONENTS TC-12773944 Filter regulator G 1/4 Enclosure material Aluminium Sealant NBR

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
