Buy TRU COMPONENTS TC-13845736 Filter regulator G 3/4

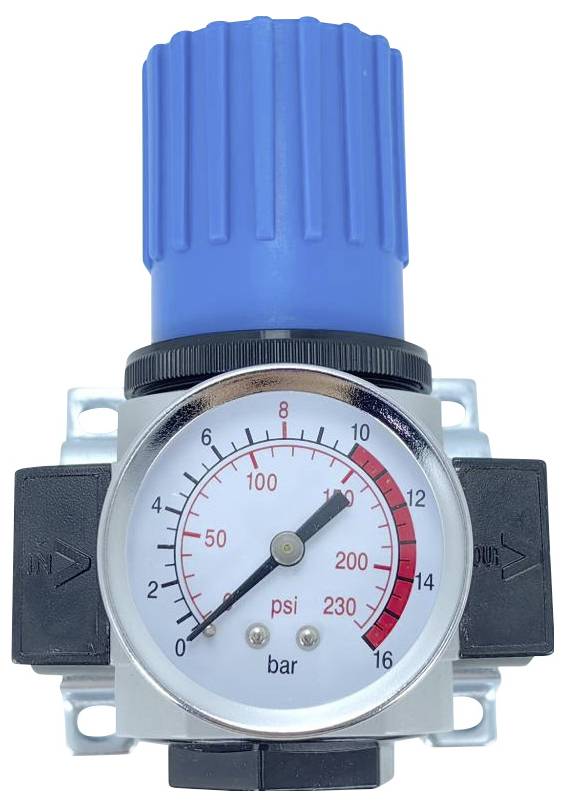

Pressure gauge with a blue valve, displaying a range from 0 to 230 psi and 0 to 16 bar, used for regulating air pressure.

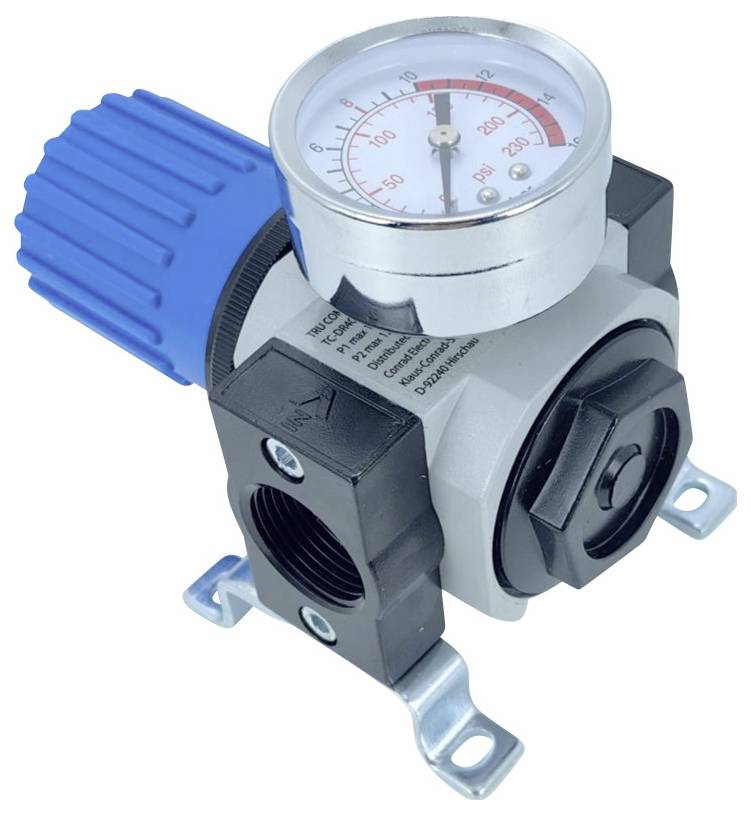

A pneumatic pressure regulator with a blue adjustment knob and a gauge displaying pressure levels from 0 to 200 psi. The gauge is set at 60 psi.

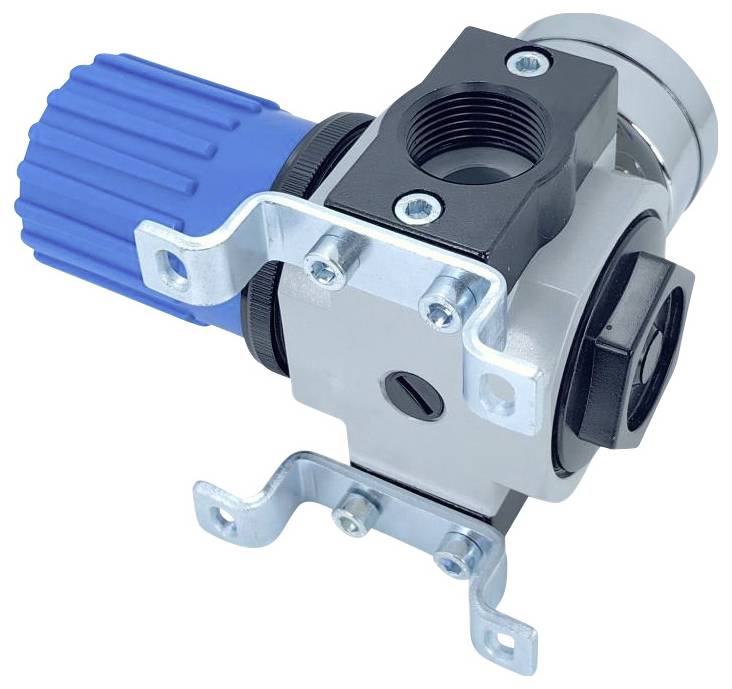

A blue and metallic pressure regulator with mounting brackets, showing an inlet port and a gauge connection, used in pneumatic systems.

1/3

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 33.61 / piece)

€ 33.61

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Pressure regulator, 12 bar, G3/4” (26.44 mm)

Port size: G3/4"
Gauge thread: G1/4"
Max. flowrate: 3500 l/min
Max. input pressure: 16 Bar
Regulating pressure range: 0.5 - 12 bar

Technical specifications

Guage thread: G1/4

Type: TC-13845736

Product type: Filter regulator

Connection: G 3/4

Max. flow: 3500 liters per min.

Max. operating pressure: 12 bar

Manufacturer part #: TC-13845736

Operating pressure (min.): 1.5 bar

Max. ambient temperature: 60 °C

Min. ambient temperature: -10 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3461434 TRU COMPONENTS TC-13845736 Filter regulator G 3/4

User & Safety Instructions

User & Safety Instructions 3461434 TRU COMPONENTS TC-13845736 Filter regulator G 3/4

Description

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
