Buy TRU COMPONENTS TC-13845716 Filter regulator G 1/4

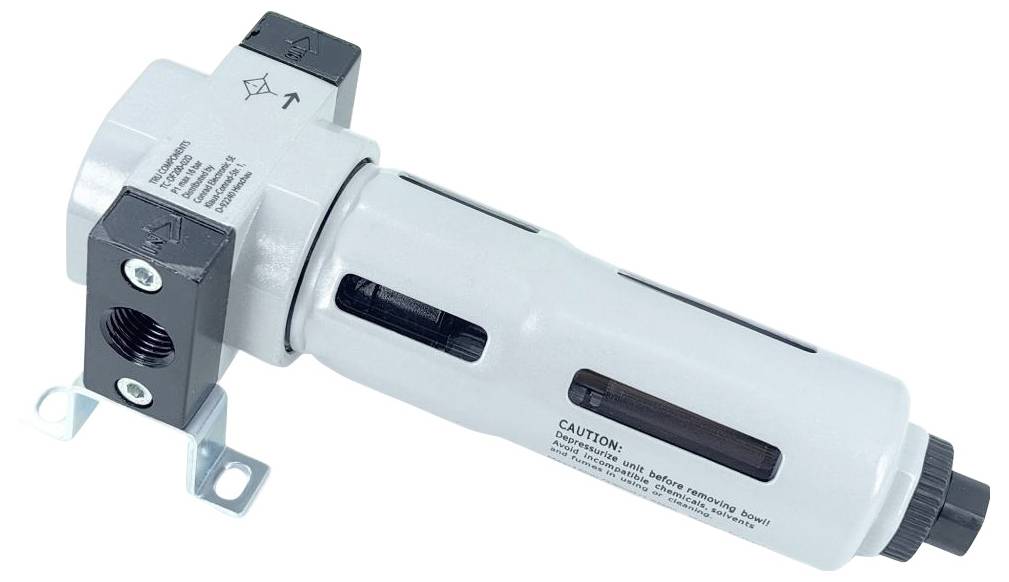

'A pneumatic air filter with a white cylindrical body and black attachments, designed for industrial use, showing caution text on side.'

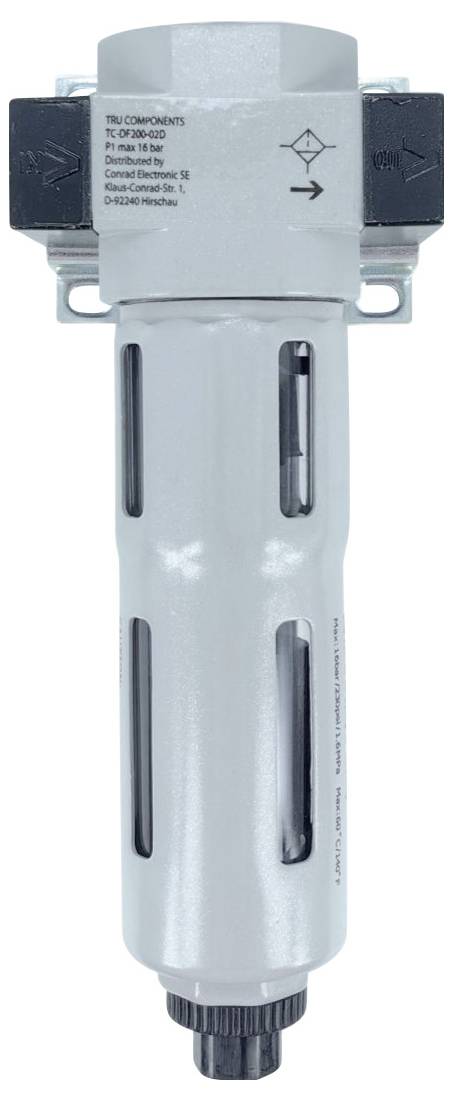

Industrial air filter with metal casing, used to remove impurities from air systems, featuring a pressure gauge and inlet/outlet indicators.

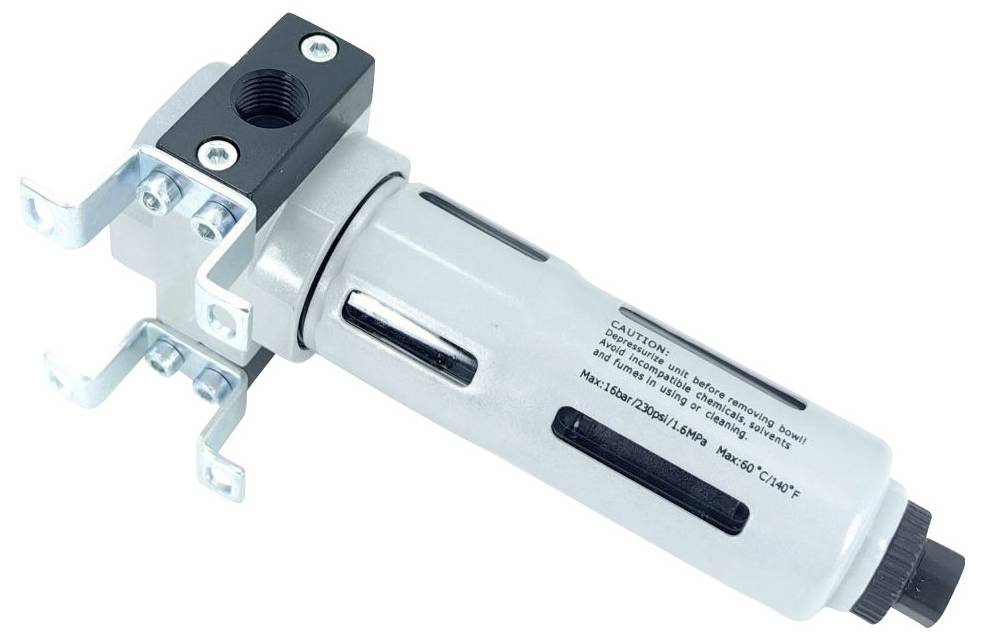

'Industrial air filter with metal mounting bracket, caution label, and visible filter element, used for filtering compressed air systems.'

1/3

Our service for you

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

37 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 26.88 / piece)

€ 26.88

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Filter, 12 Bar, G1/4" (13.157 mm)

Port size: G1/4"
Max. flowrate: 2000 l/min
Max. input pressure: 16 Bar
Regulating pressure range: 0.5 - 12 bar
Filter precision: 40μm

Technical specifications

Type: TC-13845716

Product type: Filter regulator

Connection: G 1/4

Max. flow: 2000 liters per min.

Max. operating pressure: 12 bar

Manufacturer part #: TC-13845716

Operating pressure (min.): 1.5 bar

Max. ambient temperature: 60 °C

Min. ambient temperature: -10 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3461429 TRU COMPONENTS TC-13845716 Filter regulator G 1/4

User & Safety Instructions

User & Safety Instructions 3461429 TRU COMPONENTS TC-13845716 Filter regulator G 1/4

Description

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
