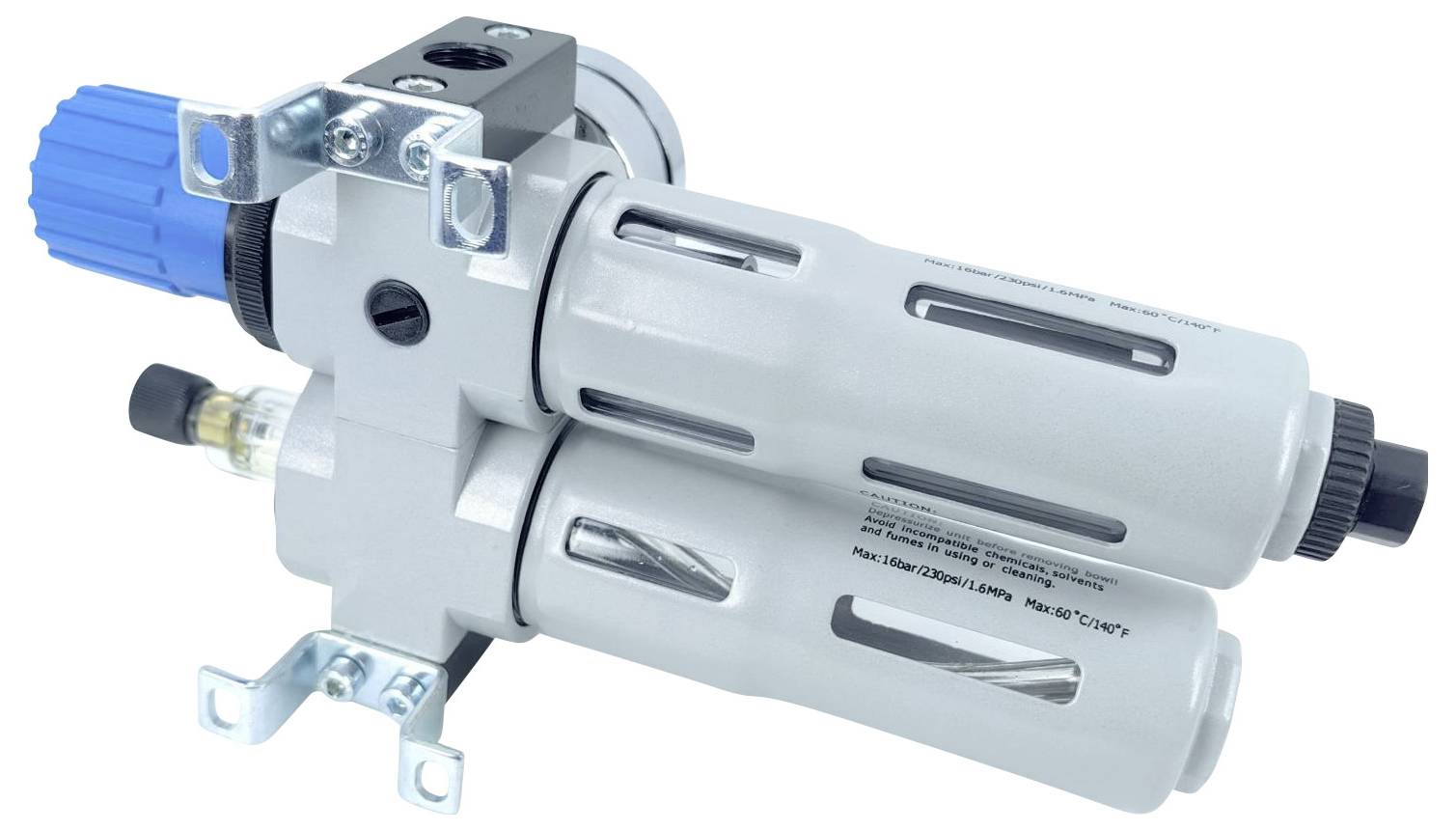

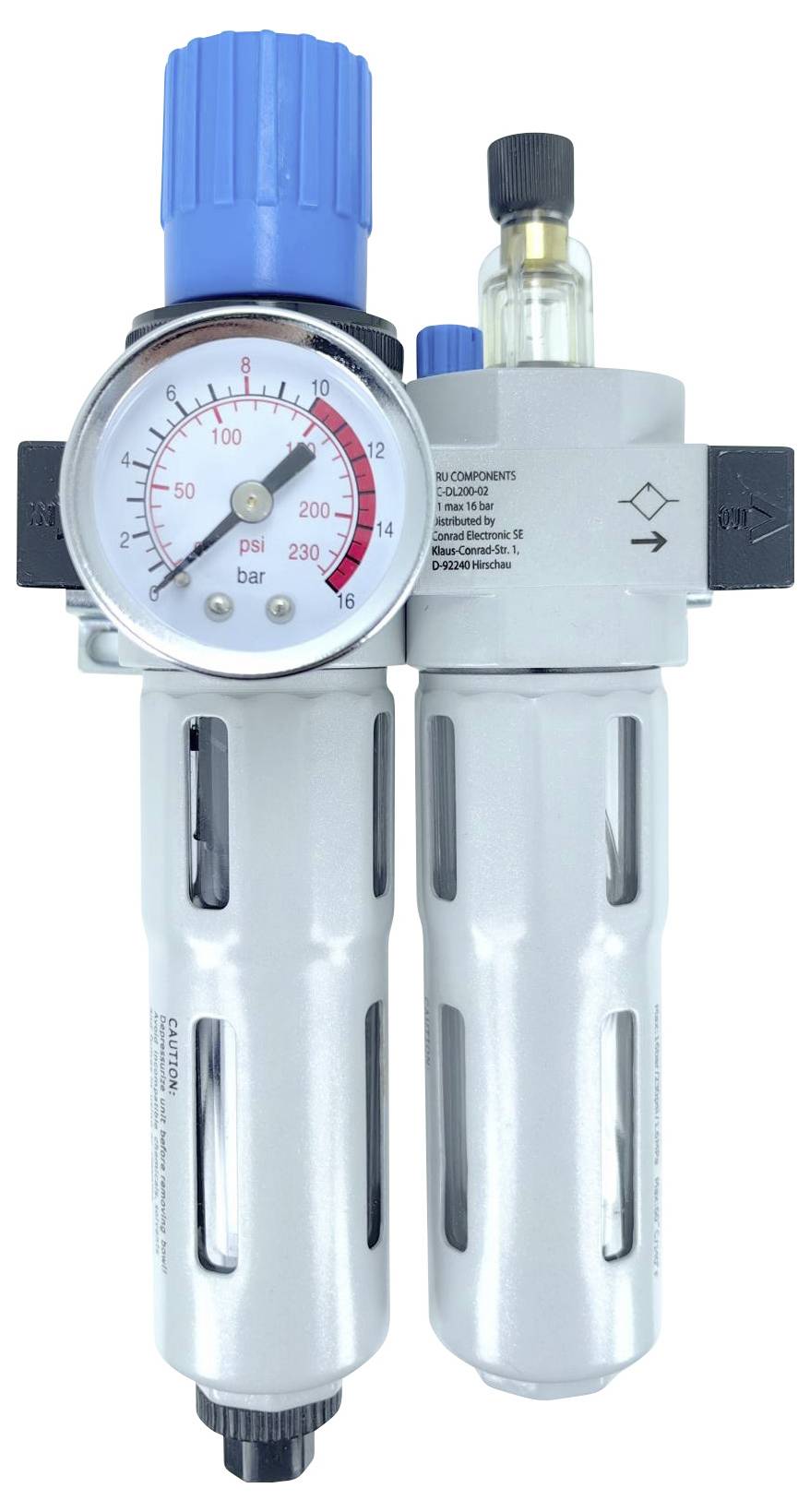

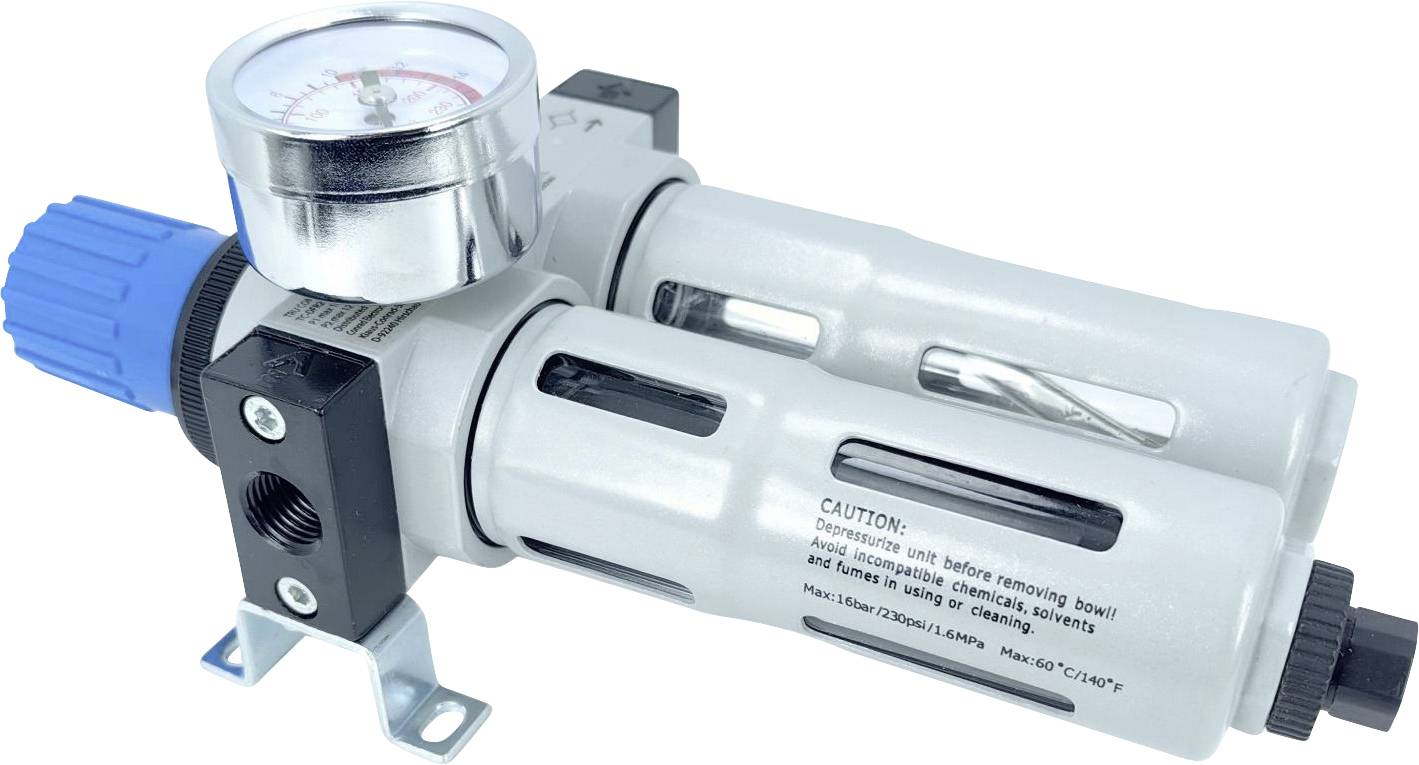

TRU COMPONENTS TC-13845708 Filter regulator G 1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 59.99 / piece)
€ 59.99
incl. VAT
14-day return policy included
Highlights & Details
Maintenance unit, 12 bar, G1/4" (13.157 mm)
- Port size: G1/4"
- Gauge thread: G1/8"
- Max. flowrate: 1700 l/min
- Max. input pressure: 16 Bar
- Regulating pressure range: 0.5 - 12 bar
- Filter precision: 40μm
Technical specifications
- Guage thread: G1/8
- Type
TC-13845708
- Product type
Filter regulator
- Connection
G 1/4
- Max. flow
1700 liters per min.
- Max. operating pressure
12 bar
- Manufacturer part #
TC-13845708
- Operating pressure (min.)
1.5 bar
- Medium
Compressed air
- Features
P port connector (G1/4)
- QNn value
1700 l/min
- Control pressure (max.)
12 bar
- Control pressure (min.)
1.5 bar
- Max. ambient temperature
60 °C
- Min. ambient temperature
-10 °C
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3461427 TRU COMPONENTS TC-13845708 Filter regulator G 1/4
User & Safety Instructions
User & Safety Instructions 3461427 TRU COMPONENTS TC-13845708 Filter regulator G 1/4
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
