Name: TRU COMPONENTS TC-12773948 Filter regulator G 1/2 Enclosure material Aluminium Sealant NBR
Brand: TRU COMPONENTS
SKU: 3193487
Availability: InStock

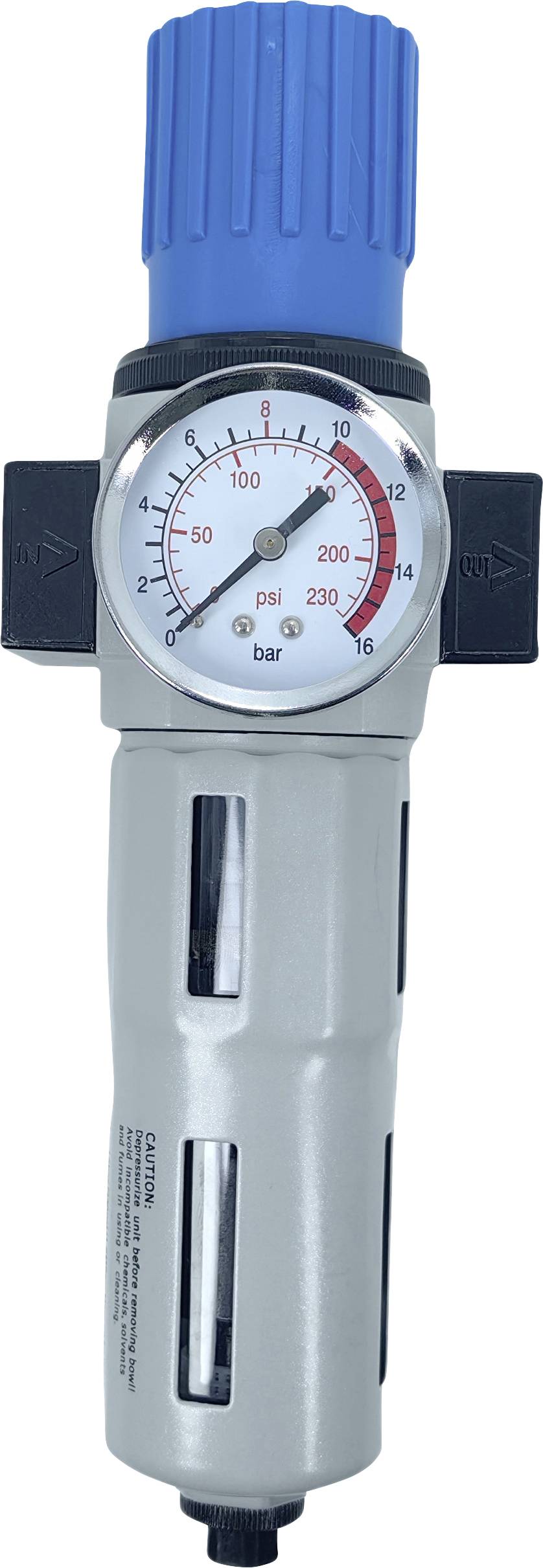

Pressure regulator with manometer showing pressure in psi and bar, blue adjustment knob, silver body, primarily used in industrial settings.

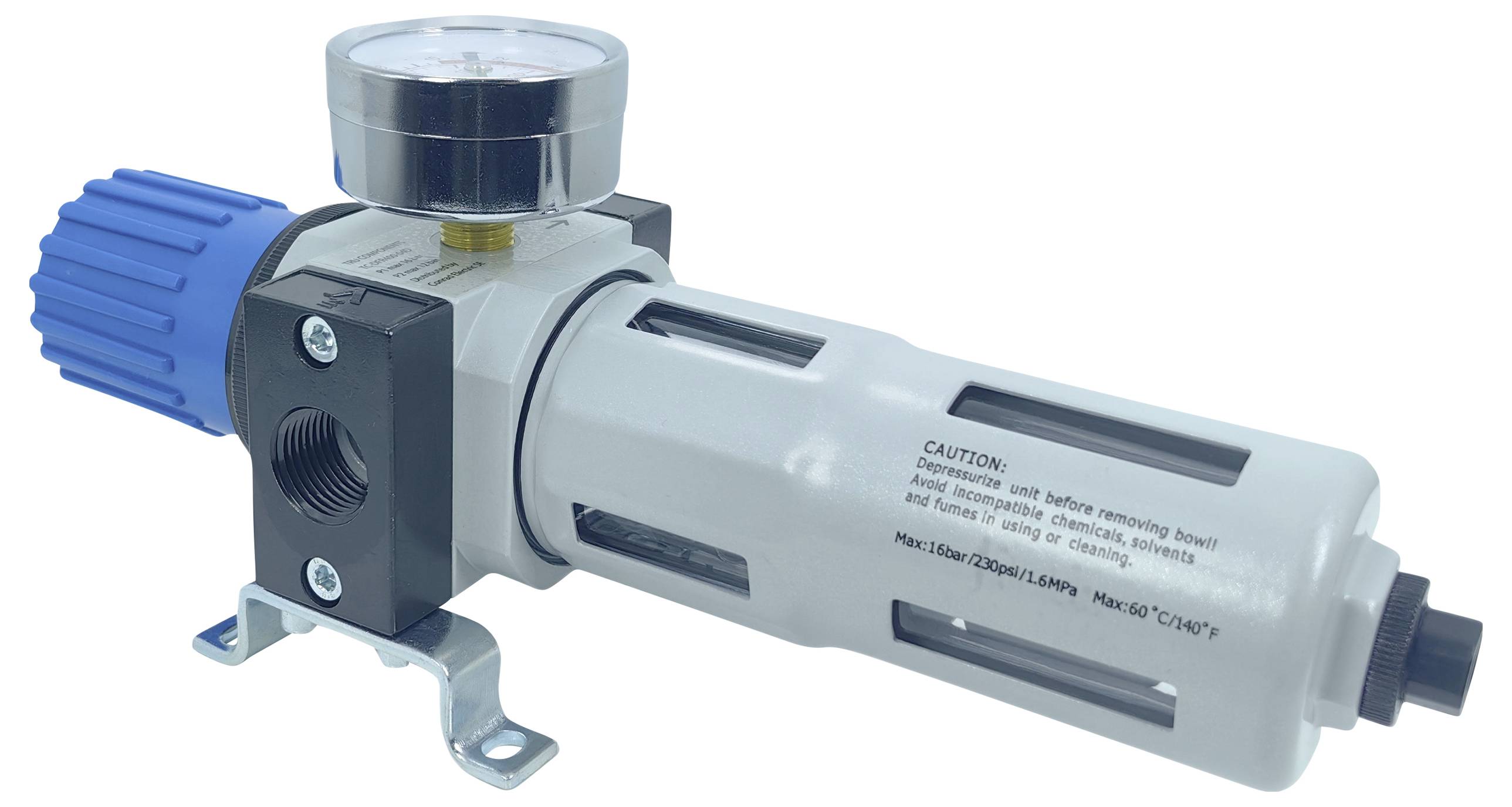

Pressure regulator with blue rotary knob and manometer on top. White housing, mounted on metal bracket. Text inscription: 'CAUTION: Release unit before removing bowl'.

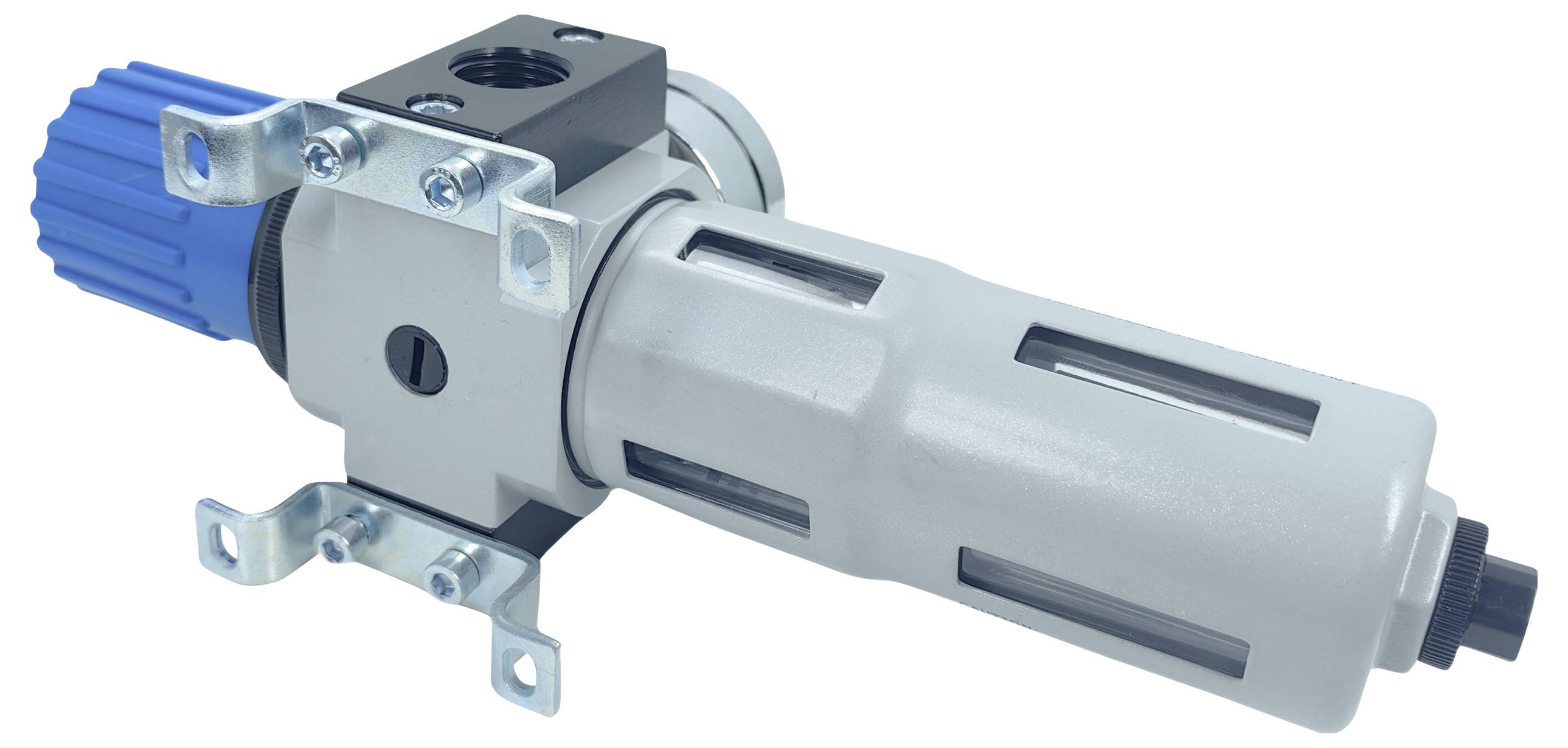

A pneumatic filter regulator with a blue control knob and grey housing, mounted on a metal bracket.

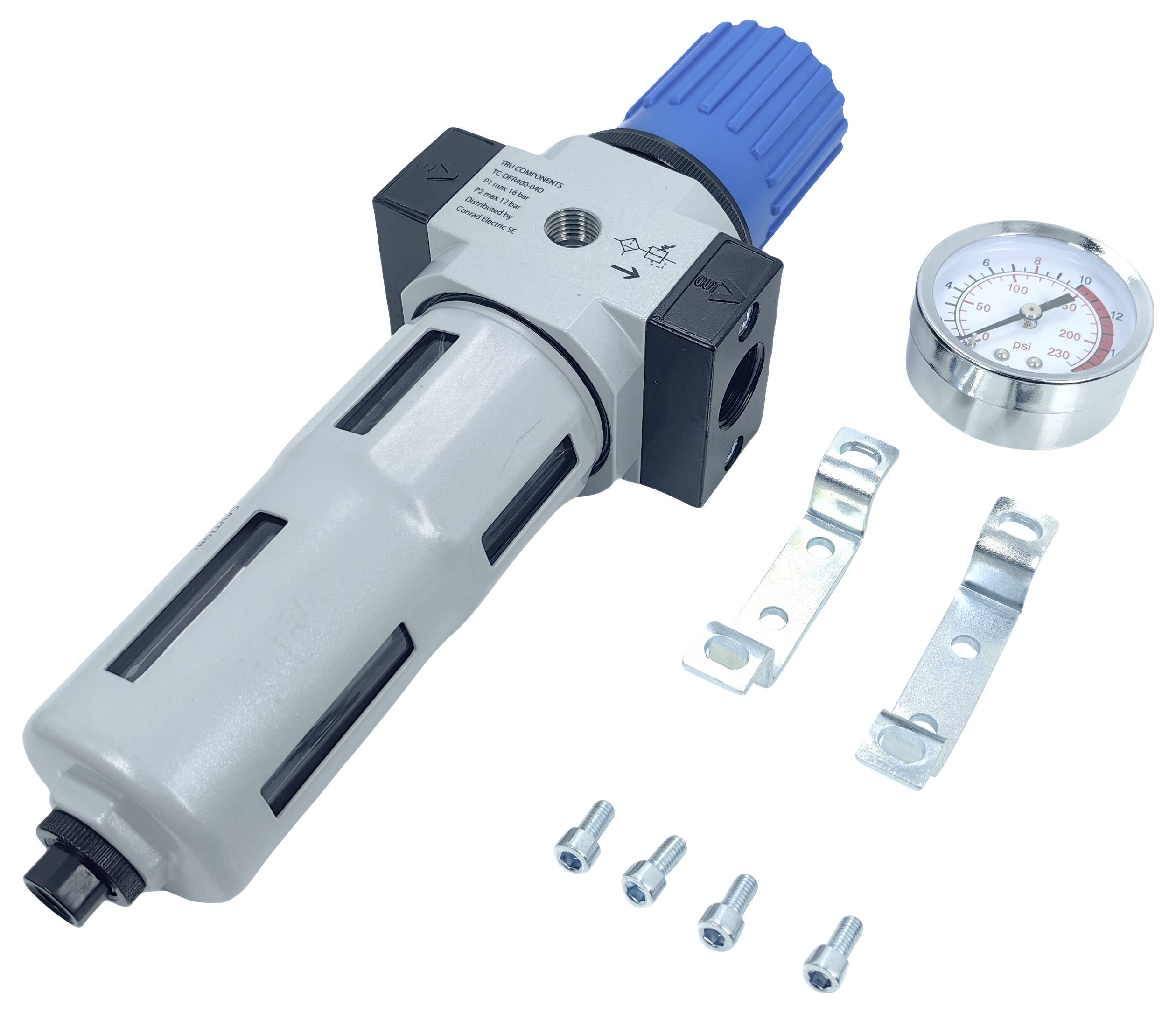

Pressure Regulator Set consisting of a regulator with pressure gauge, mounting accessories and screws, used for regulating air pressure.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Filter regulator G 1/2" compressed air 0.5 - 12 bar, automatic drain

Port size: G1/2"
Gauge thread: G1/4"
Max. flowrate: 3500 l/min
Max. input pressure: 16 Bar
Regulating pressure range: 0.5 - 12 bar

Technical specifications

Operating medium: Compressed Air

Type: TC-12773948

Product type: Filter regulator

Enclosure material: Aluminium

Connection: G 1/2

Max. flow: 3500 L/min

Max. operating pressure: 12 bar

Manufacturer part #: TC-12773948

Operating pressure (min.): 0.5 bar

Sealant: NBR

QNn value: 3500 l/min

Control pressure (max.): 12 bar

Control pressure (min.): 0.5 bar

Max. ambient temperature: +60 °C

Min. ambient temperature: -10 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3193487 TRU COMPONENTS TC-12773948 Filter regulator G 1/2 Enclosure material Aluminium Sealant NBR

User & Safety Instructions

User & Safety Instructions 3193487 TRU COMPONENTS TC-12773948 Filter regulator G 1/2 Enclosure material Aluminium Sealant NBR

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
