Name: TRU COMPONENTS TC-14382312 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 24 V DC 2.5 A 60 W No. of outputs:1 x Cont
Brand: TRU COMPONENTS
SKU: 3595578
Availability: InStock

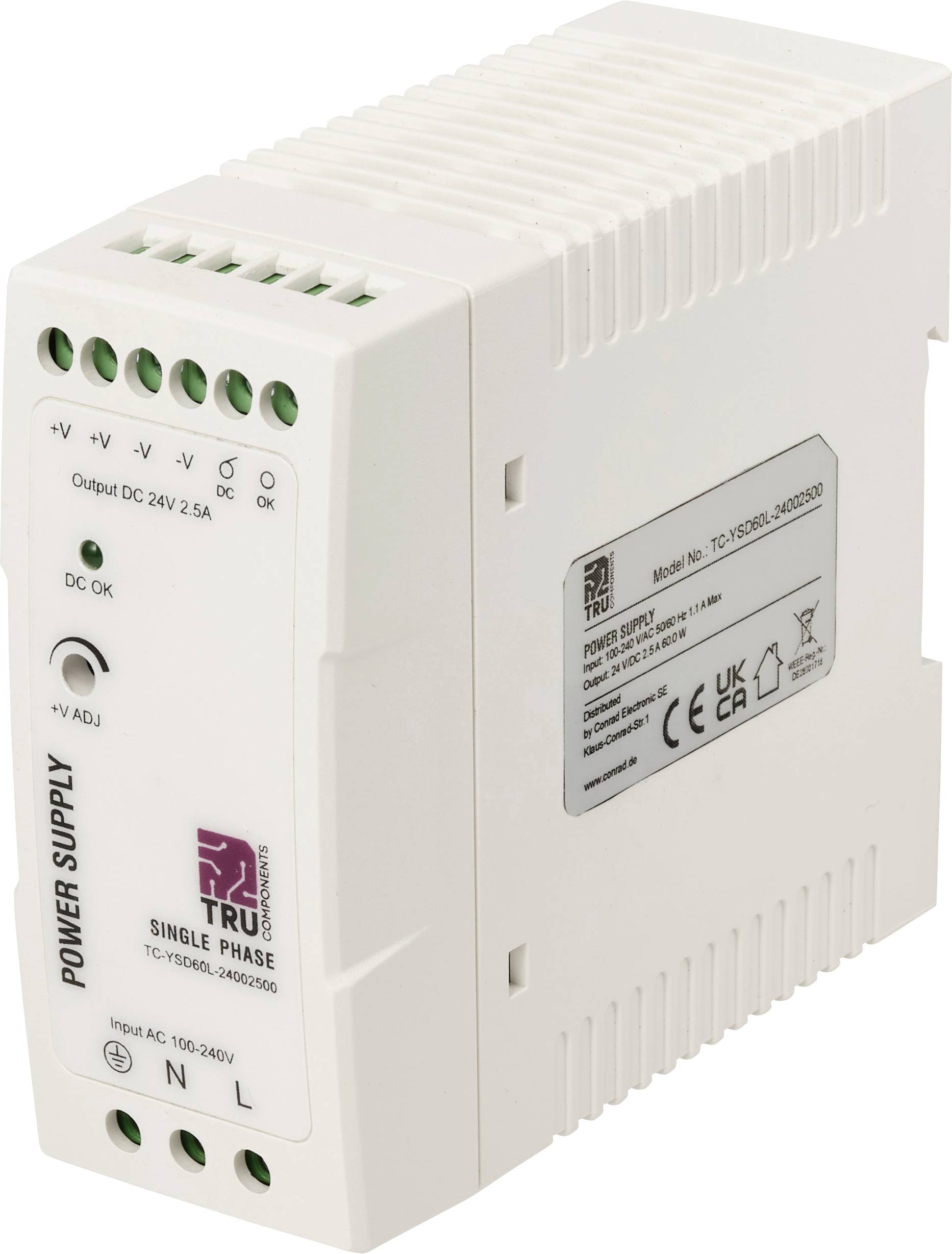

DIN-rail AC-to-DC power supply module with terminal labels, status LEDs, and side product label<br>

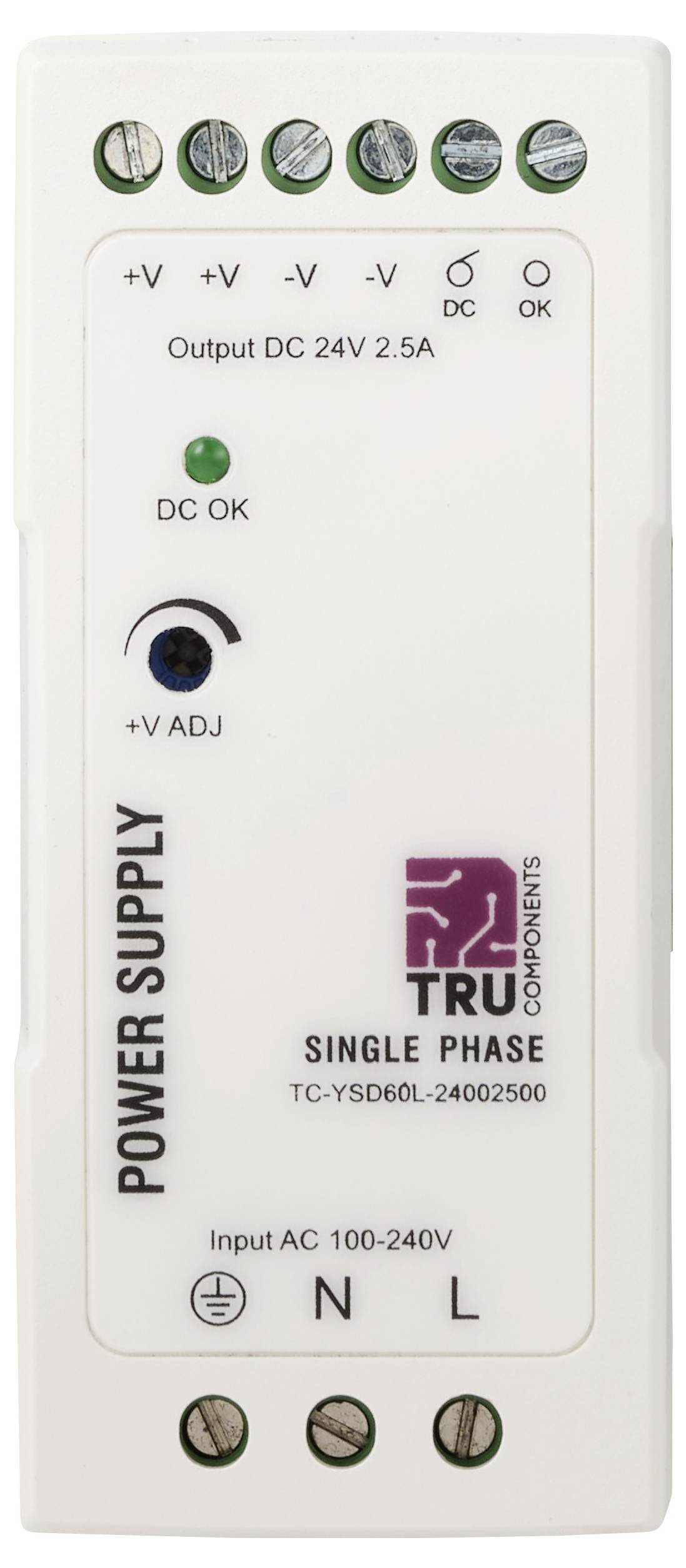

White single-phase power supply unit labeled 'TRU COMPONENTS' and 'POWER SUPPLY', showing output DC 24V 2.5A, input AC 100-240V, and adjustment/status indicators.

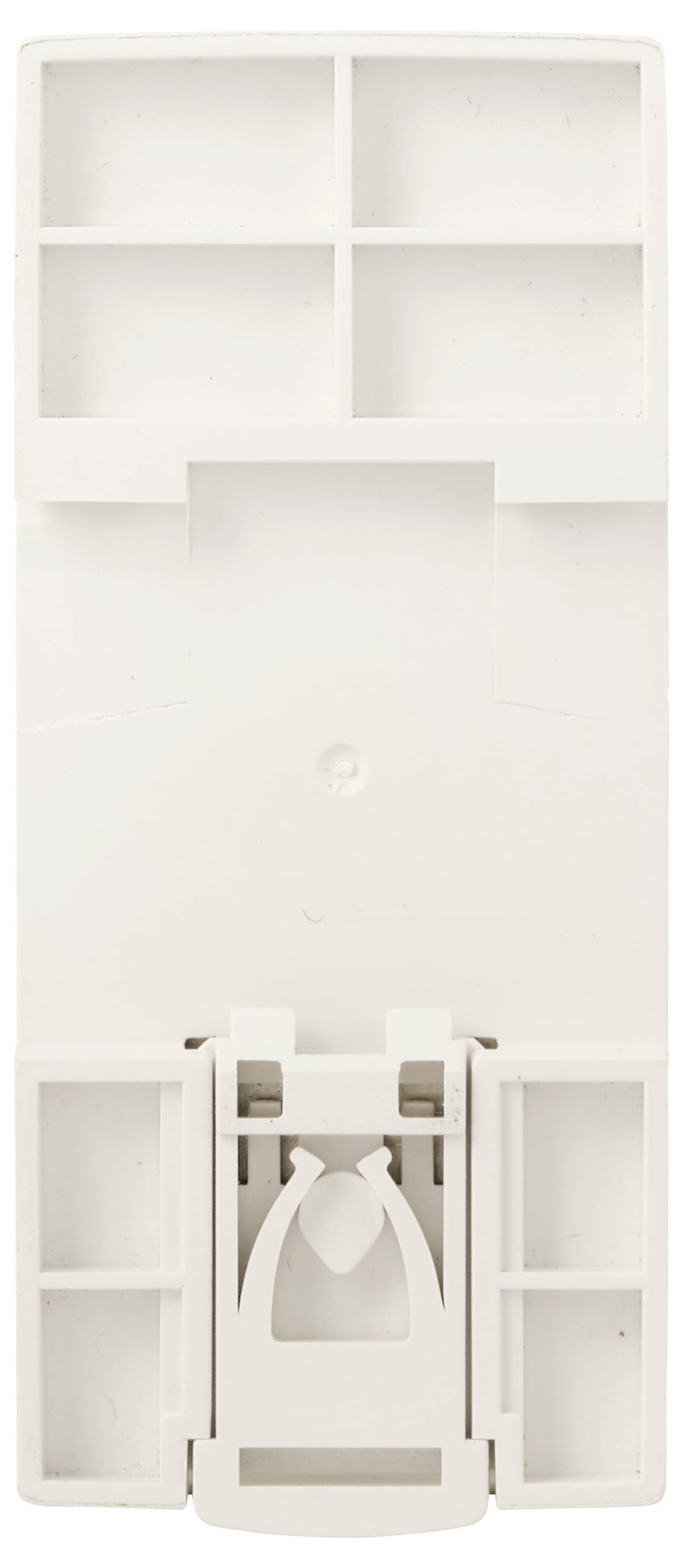

White plastic rectangular housing with four upper compartments and a central lower latch/holder section, shown front view on a plain background

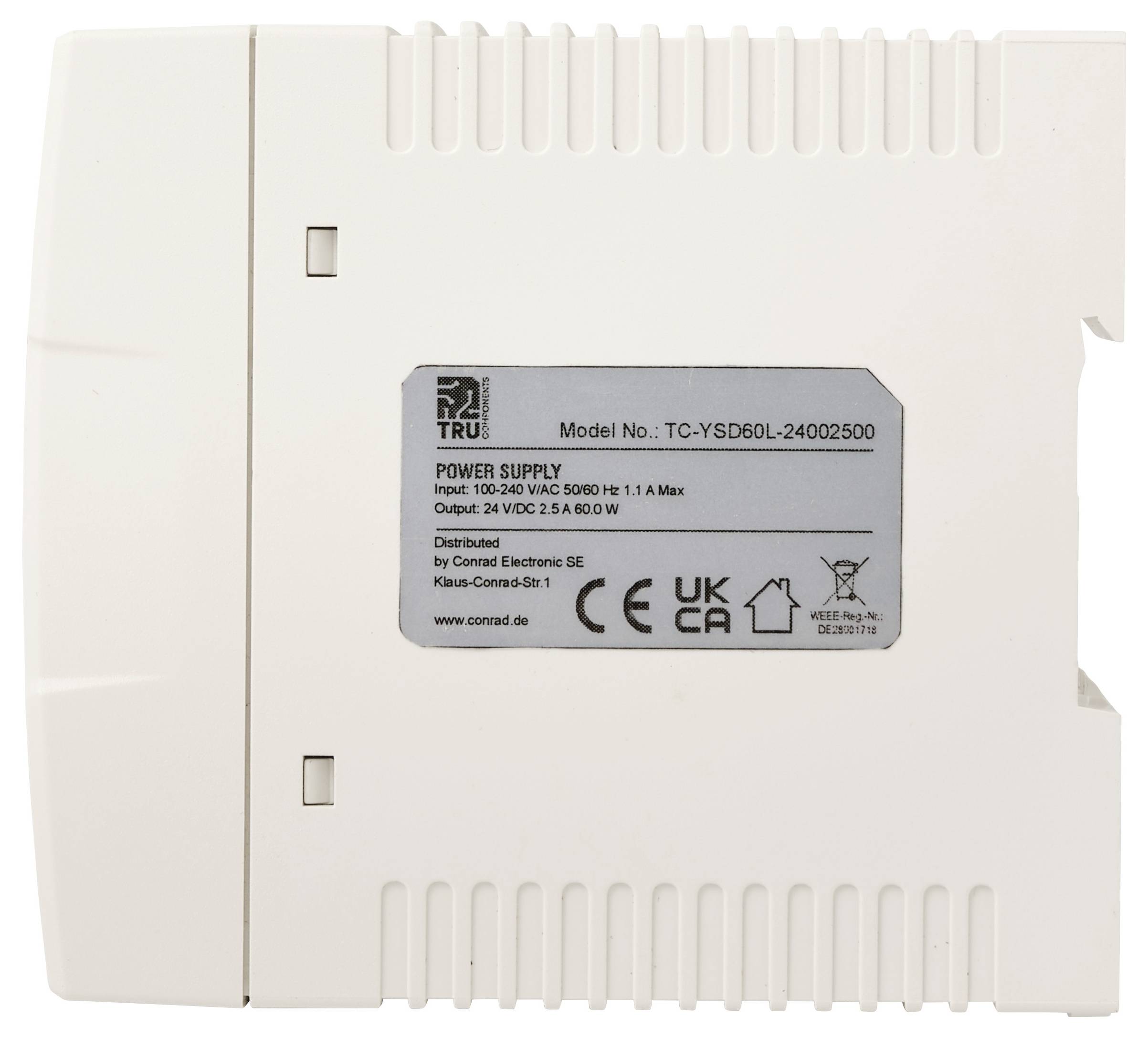

White electrical power supply unit with label showing model TC-YSD60L-24002500, input 100-240 VAC and output 24 VDC 2.5 A, 60 W.

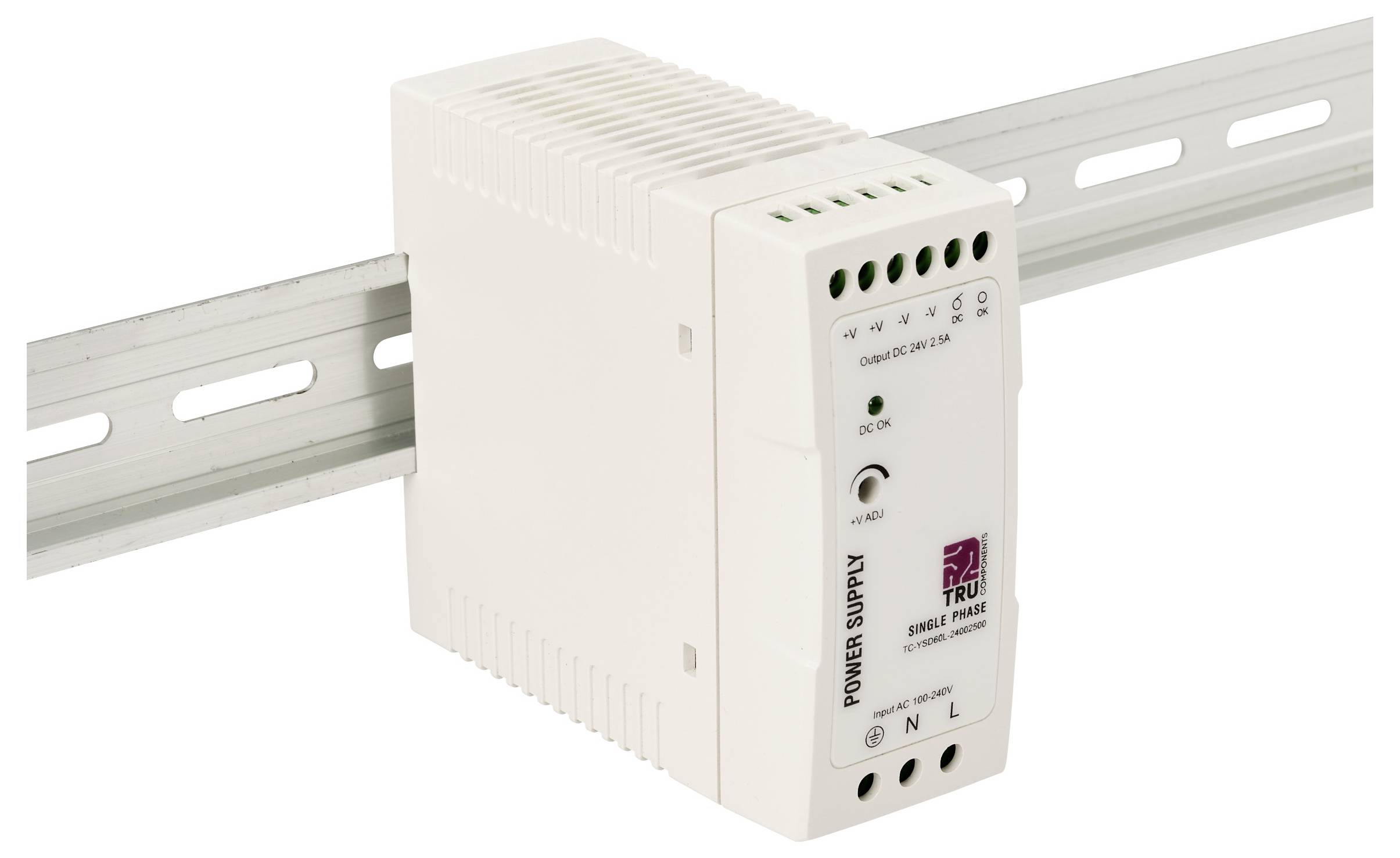

DIN-rail mounted industrial power supply unit with front terminals and status indicator LED<br>

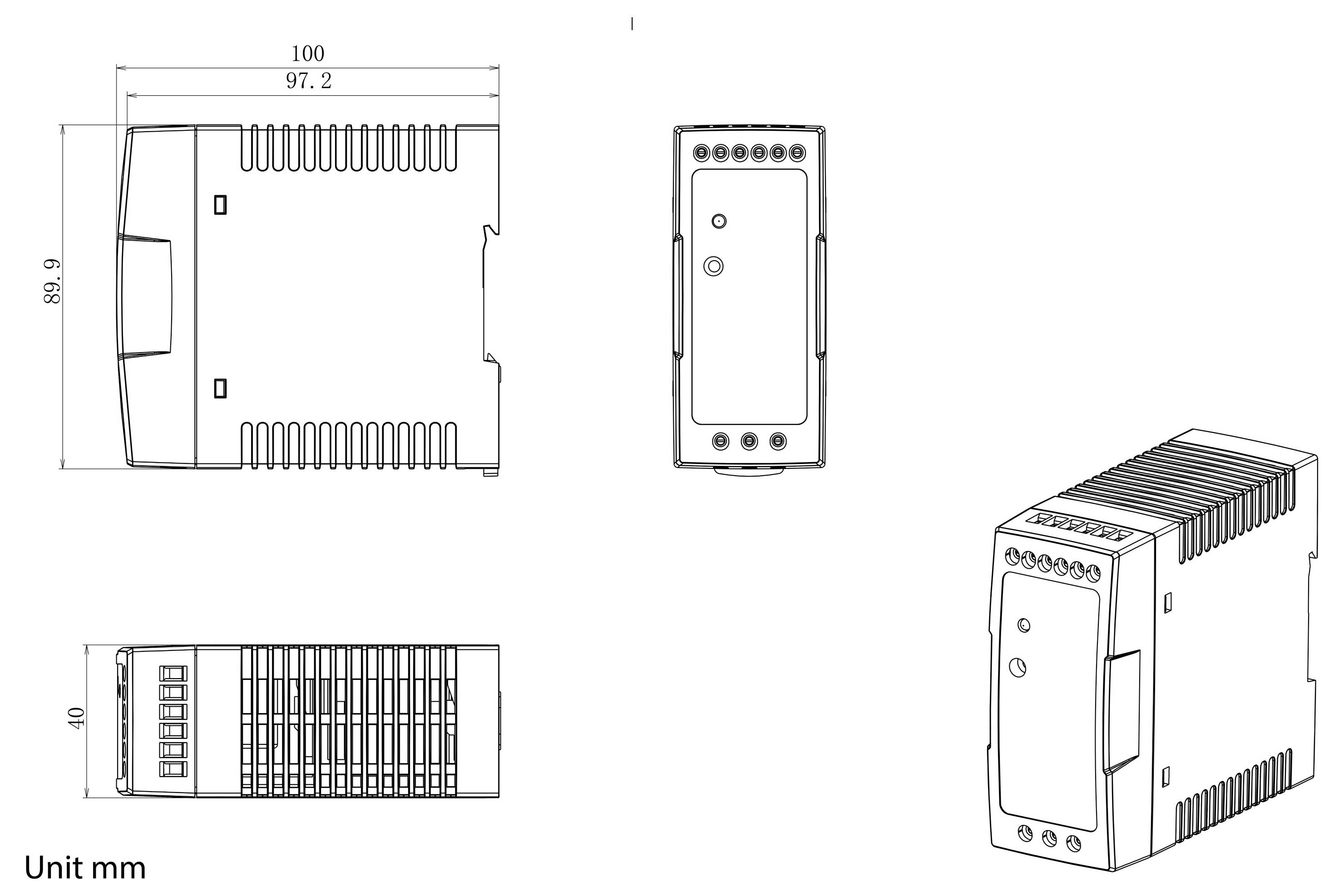

Technical dimension drawing of an electronic module, showing front, side, top, and isometric views with measurements in millimeters.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

494 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS TC-YSD60L-24002500 Din Rail Power Supply 24 V DC 2.5 A 60 W

Input voltage range: 100 - 240 V AC
Output voltage (nominal): 24 V DC
Max. output current: 2.5 A
Power: 60 W
Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

MTBF: 334.1 K hours min. MIL-HDBK-217F (25 °C)
Connection: Screw Din Terminal
Input: 3 poles, Output: 6 poles
Protection: Output voltage shutdown, recovers upon re-power
Withstand voltage: Input-Output: 3 kV AC, Input-FG: 2 kV AC, Output-FG: 0.5 kV AC

Type: Slim-line type

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Input voltage: 100 - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 100 x 41 x 92 mm

Weight: 280 g

Output voltage (max.): 30 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -20 °C

Manufacturer part #: TC-14382312

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 41 mm

Height: 92 mm

Length: 100 mm

Type: TC-YSD60L-24002500

Consumption (standby): 0.7 W

Efficiency: 88 %

Plastic free packaging: Plastic-free packaging

Variants(All information include VAT, plus shipping costs)

Output current (max.) - rounded

Output voltage (nominal)

Power

TRU COMPONENTS TC-14382312 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:3595578

Fast track dispatch on Thu 29 Oct

494 Piece(s)Conrad Electronic

This article

2.5 A

24 V DC

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

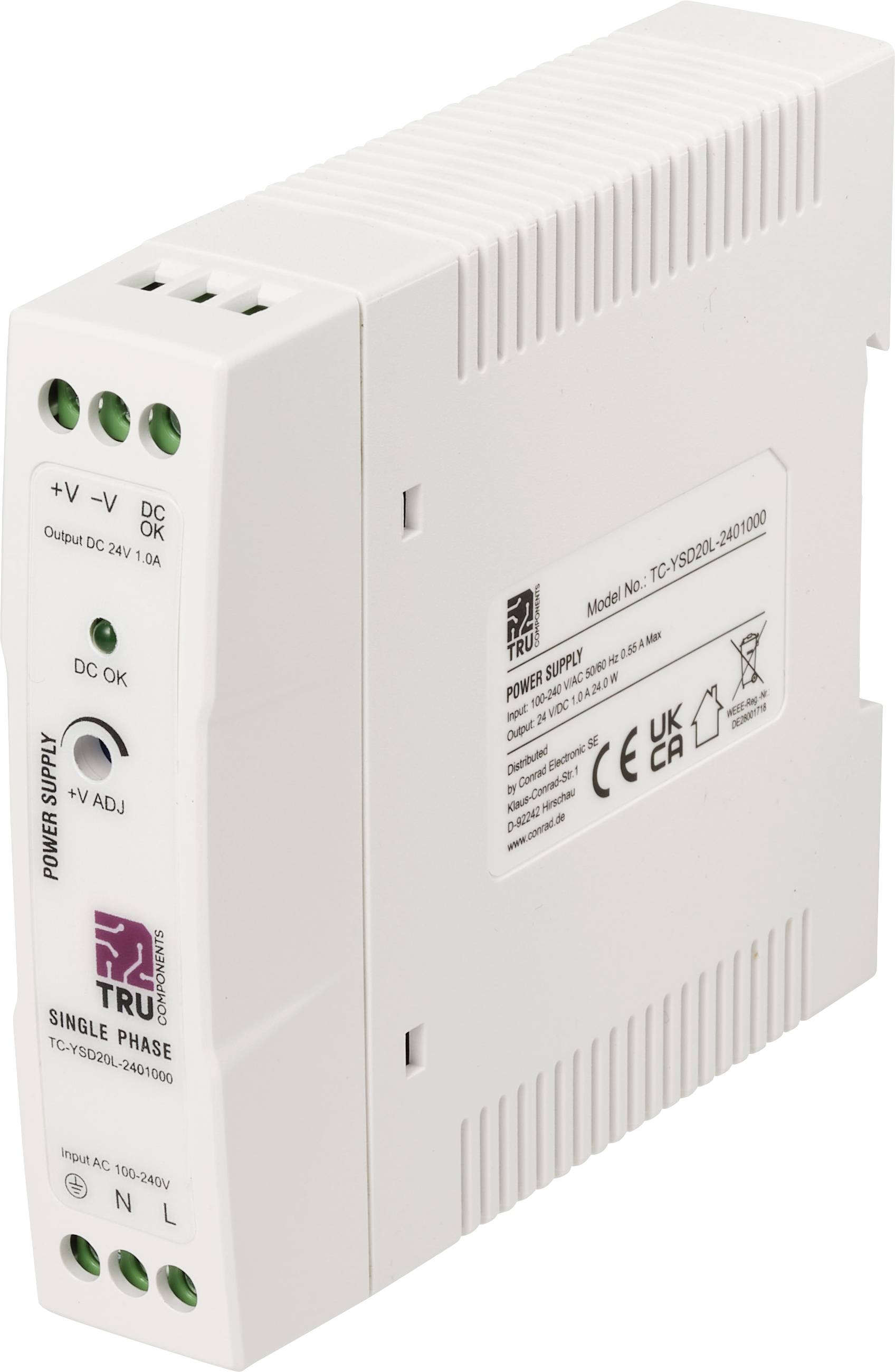

TRU COMPONENTS TC-14382284 Rail mounted PSU (DIN) Consumption (standby) 0.5 W 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:3595571

Dispatches on Tue, 6 Apr 2027

Conrad Electronic

1 A

24 V DC

24 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

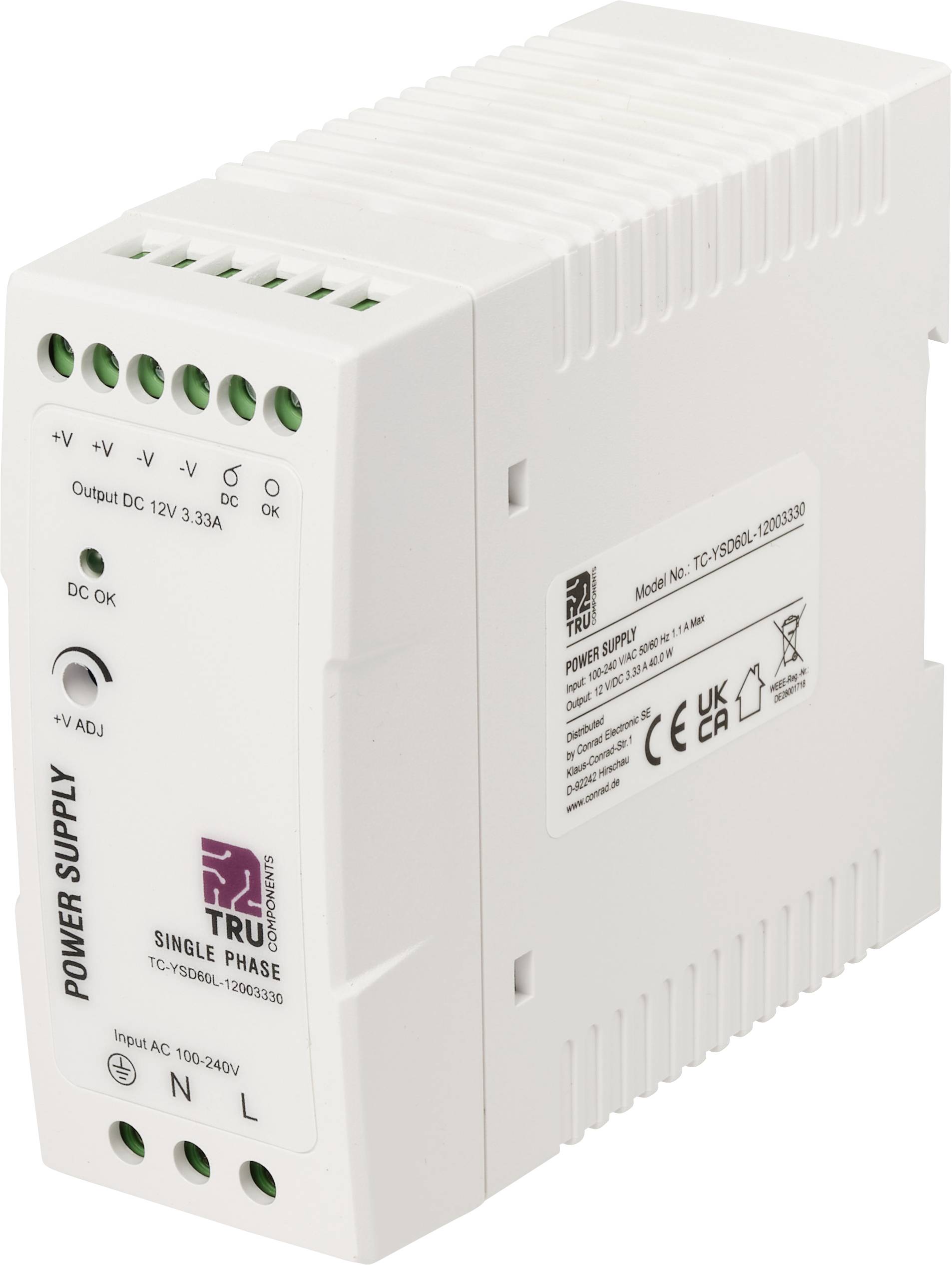

TRU COMPONENTS TC-14382288 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 12 V DC 3.33 A 40 W No. of outputs:1 x Content 1 pc(s)

Item no:3595572

Dispatches on Tue, 6 Apr 2027

Conrad Electronic

3.33 A

12 V DC

40 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

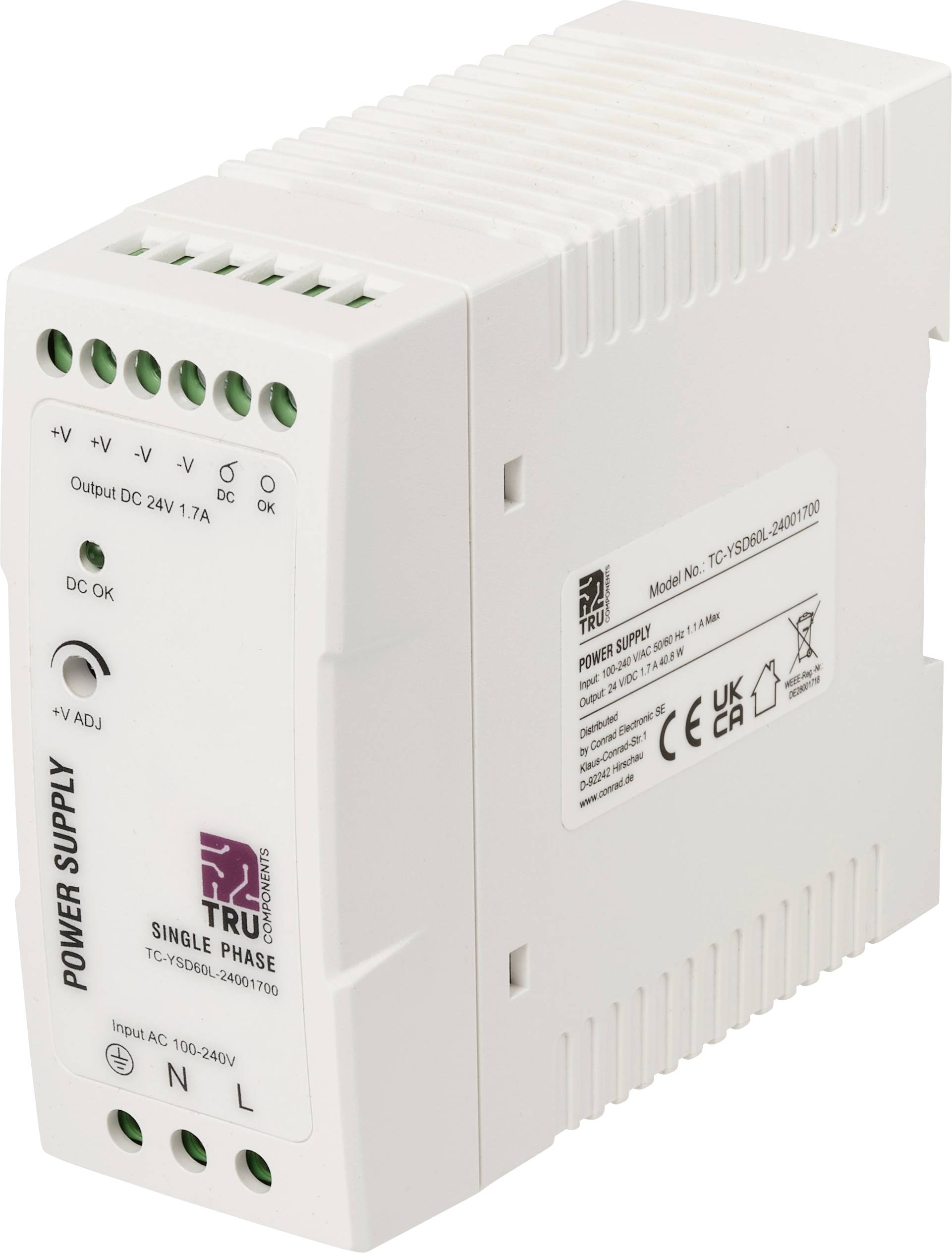

TRU COMPONENTS TC-14382292 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 24 V DC 1.7 A 40.8 W No. of outputs:1 x Content 1 pc(s)

Item no:3595573

Fast track dispatch on Thu 29 Oct

499 Piece(s)Conrad Electronic

1.7 A

24 V DC

40.8 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

TRU COMPONENTS TC-14382296 Rail mounted PSU (DIN) Consumption (standby) 0.5 W 12 V DC 1.67 A 20 W No. of outputs:1 x Content 1 pc(s)

Item no:3595574

Fast track dispatch on Thu 29 Oct

499 Piece(s)Conrad Electronic

1.67 A

12 V DC

20 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 13.99^*

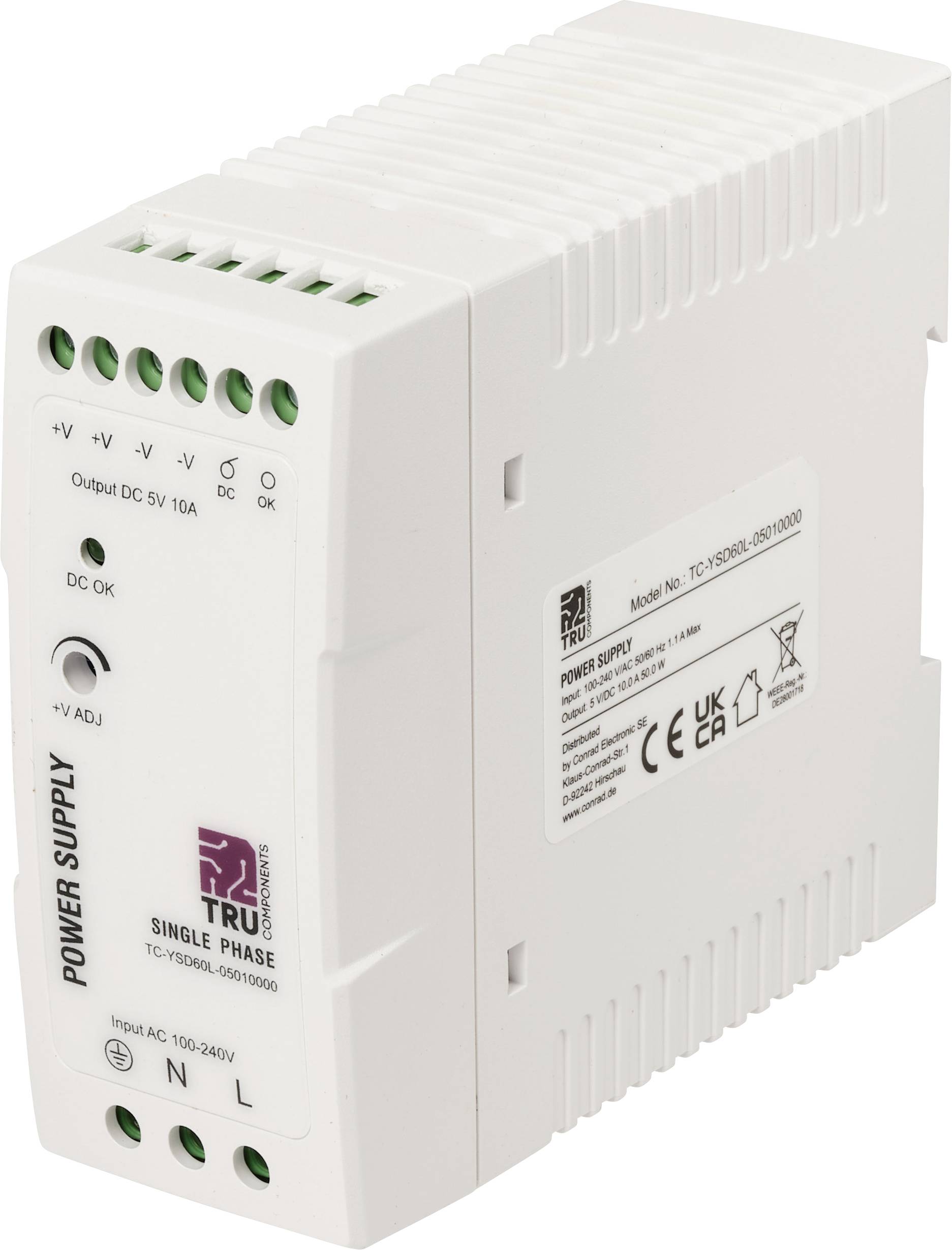

TRU COMPONENTS TC-14382300 Rail mounted PSU (DIN) Consumption (standby) 1 W 5 V DC 10 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:3595575

Fast track dispatch on Thu 29 Oct

500 Piece(s)Conrad Electronic

10 A

5 V DC

50 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

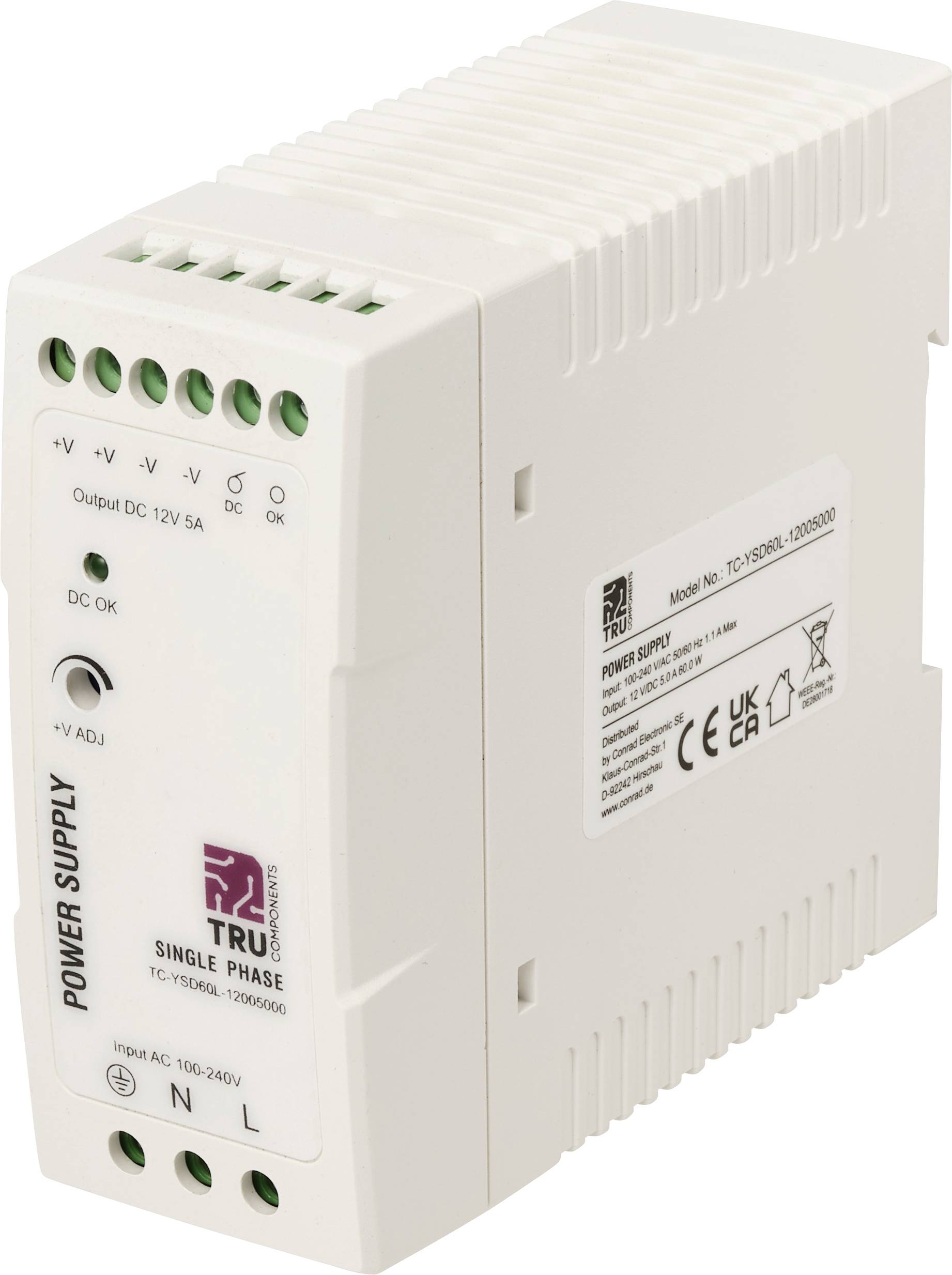

TRU COMPONENTS TC-14382304 Rail mounted PSU (DIN) Consumption (standby) 0.7 W 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:3595576

Dispatches on Tue, 6 Apr 2027

Conrad Electronic

5 A

12 V DC

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

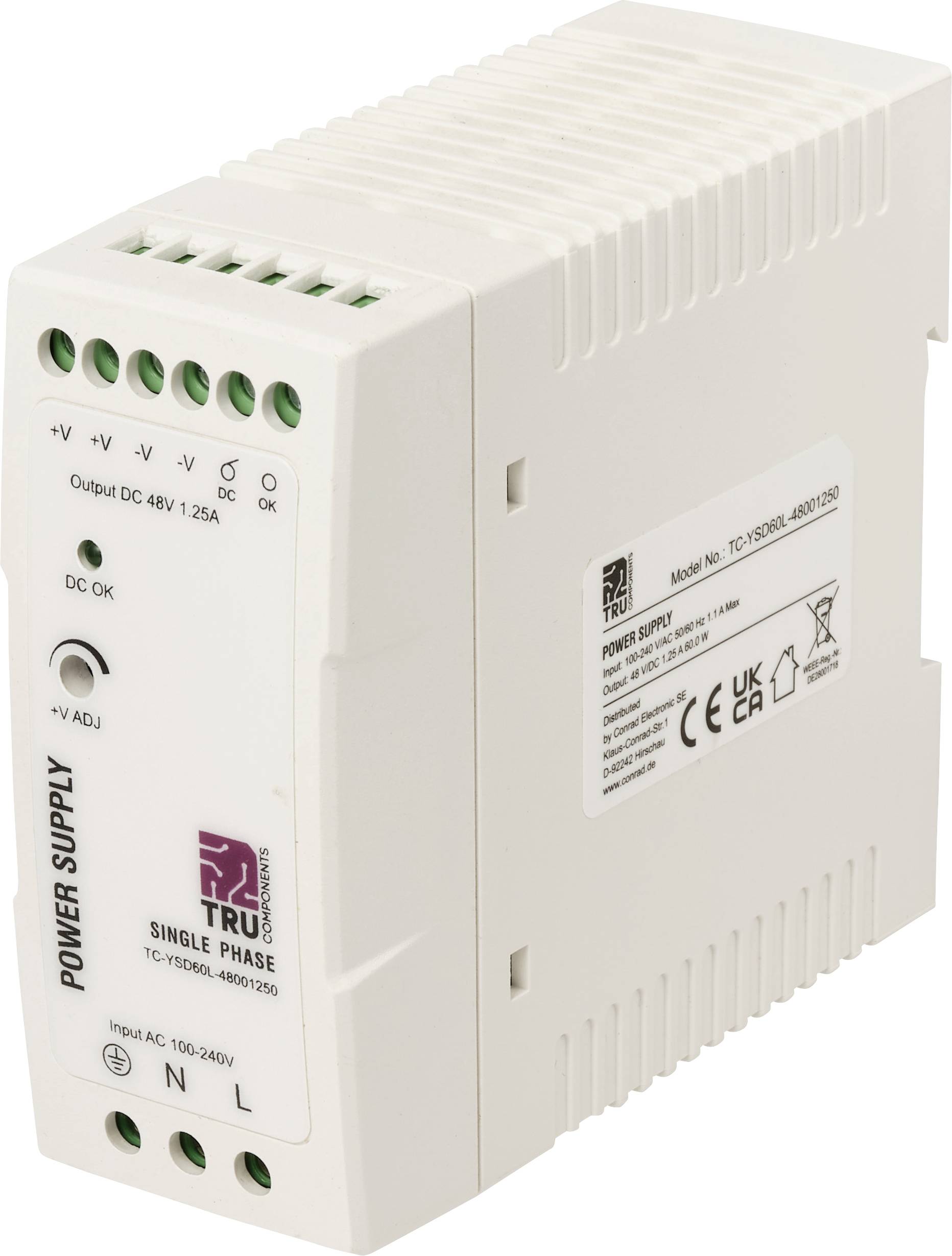

TRU COMPONENTS TC-14382308 Rail mounted PSU (DIN) Consumption (standby) 0.8 W 48 V DC 1.25 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:3595577

Fast track dispatch on Thu 29 Oct

500 Piece(s)Conrad Electronic

1.25 A

48 V DC

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

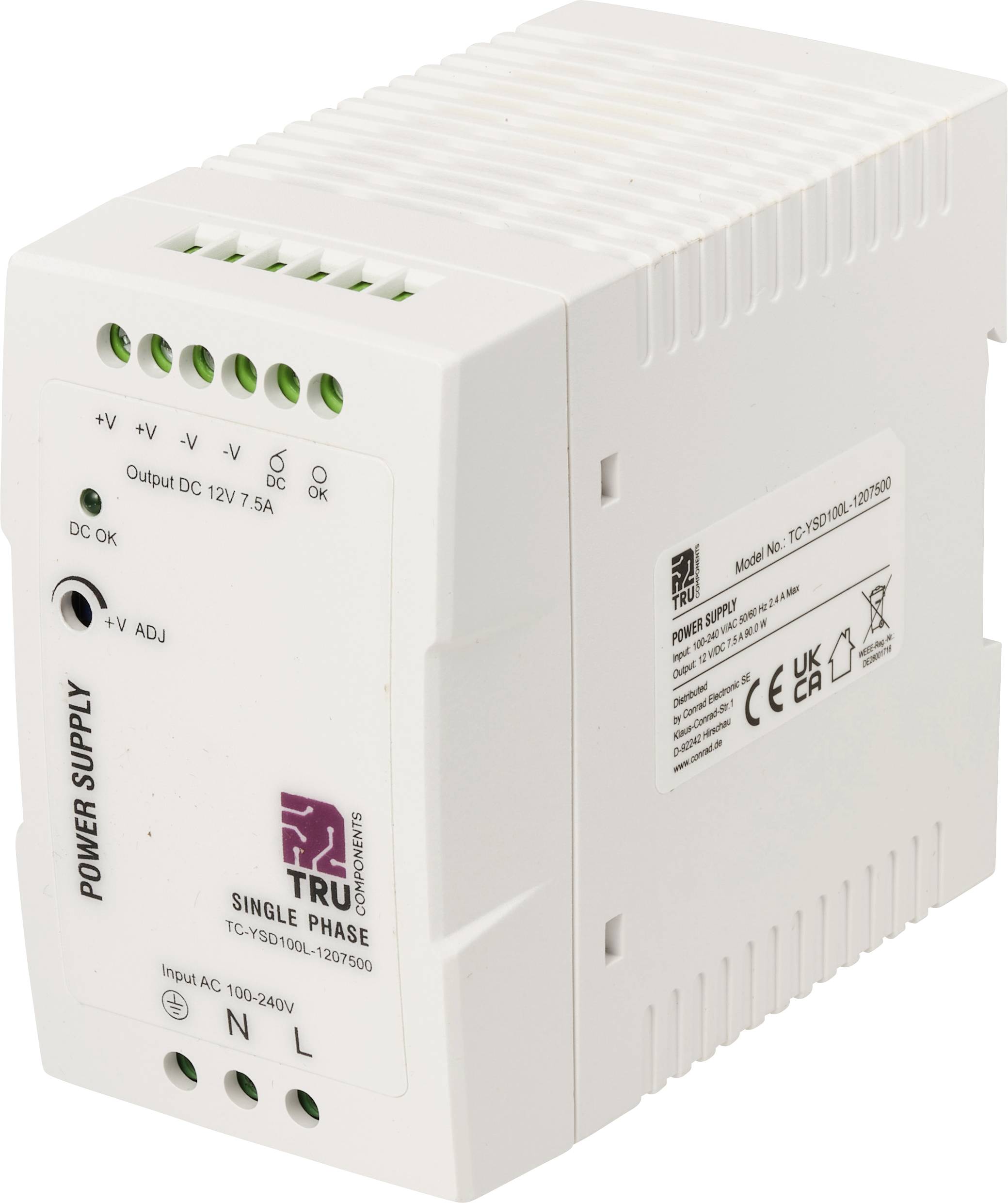

TRU COMPONENTS TC-14382316 Rail mounted PSU (DIN) Consumption (standby) 1 W 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:3595579

Dispatches on Tue, 6 Apr 2027

Conrad Electronic

7.5 A

12 V DC

90 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*

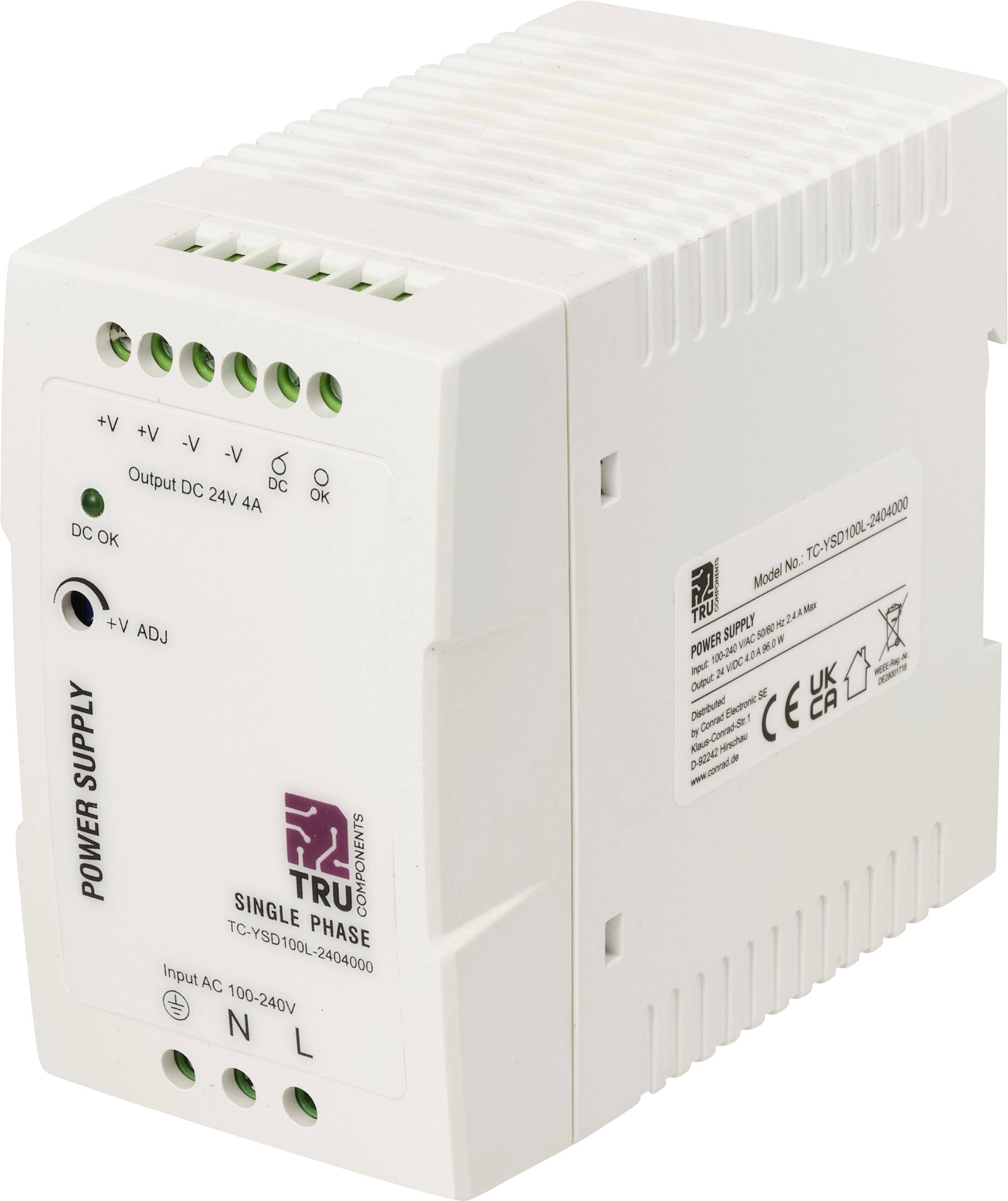

TRU COMPONENTS TC-14382320 Rail mounted PSU (DIN) Consumption (standby) 1.8 W 24 V DC 4 A 96 W No. of outputs:1 x Content 1 pc(s)

Item no:3595580

Fast track dispatch on Thu 29 Oct

478 Piece(s)Conrad Electronic

4 A

24 V DC

96 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 35.99^*
