TRU COMPONENTS TC-15034256 Connector set Waterproof connector Total number of pins: 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector set
Connector type
Waterproof connector
Total no. of pins
3
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14 days return policy included
Highlights & Details

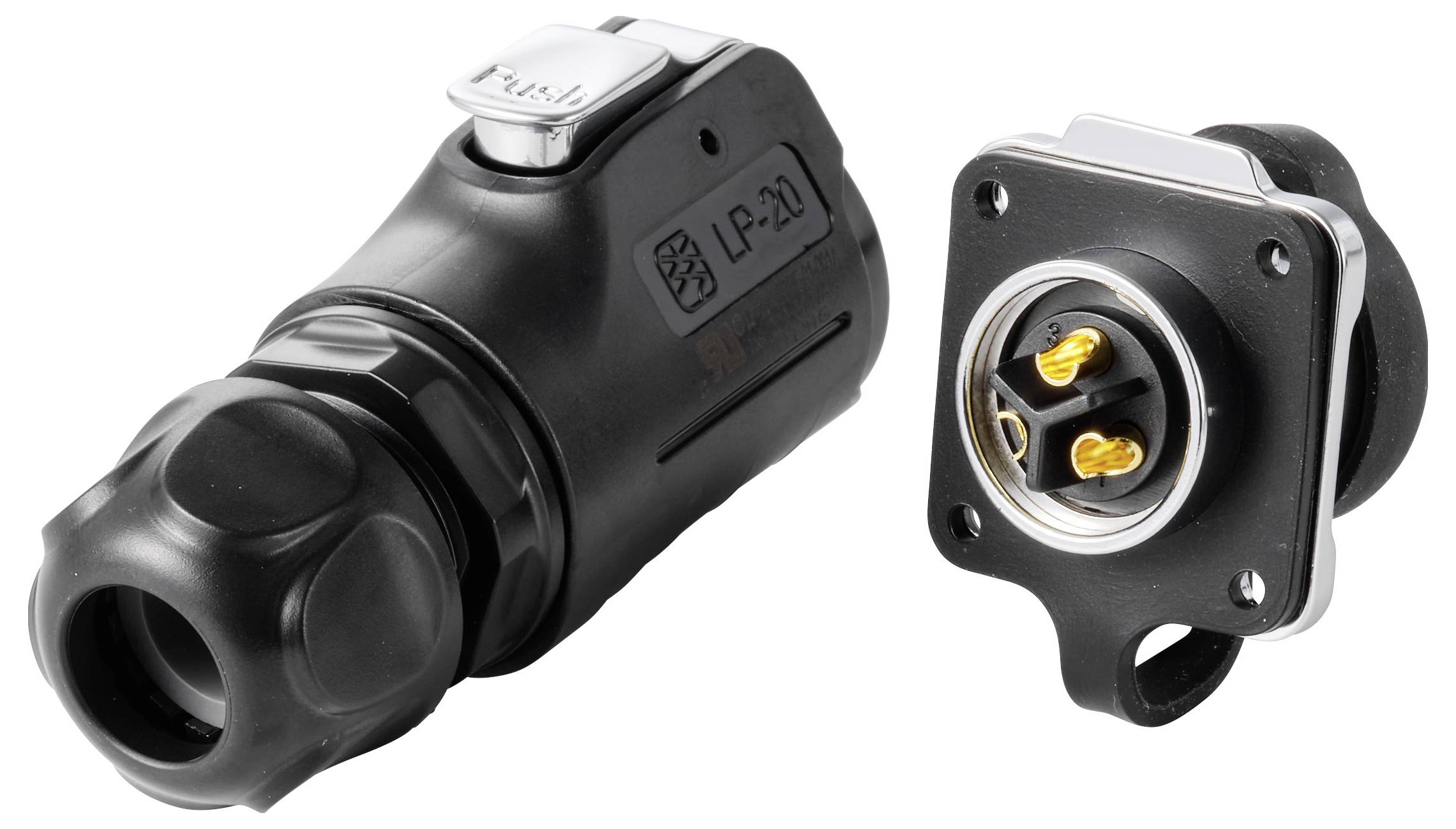

TRU COMPONENTS Connector Set LP20 3-pin 2–4 mm² IP67
- 4-hole flange female socket
Our service for you
Technical specifications
- Type
TC-15034256
- Product type
Connector set
- Connector type
Waterproof connector
- Total no. of pins
3
- Connection
Soldering
- Factory colour
Black
Silver
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
20 A
- Min. temperature
-25 °C
- Nominal current - rounded value
20 A
- Seal
Rubber
- Nominal voltage
500 V AC
- Contact material
Copper alloy gold plated
- Cable Ø (max.)
12 mm
- Cable Ø up to
6.5 mm
- Case material
Zinc alloy
14-12
- Mounting hole diameter
20.4 mm
- Manufacturer part #
TC-15034256
- Insulation material
PBT
- Cable Ø range
6.5 - 12 mm
- Number of pins
3
- RoHS-compliant
Yes

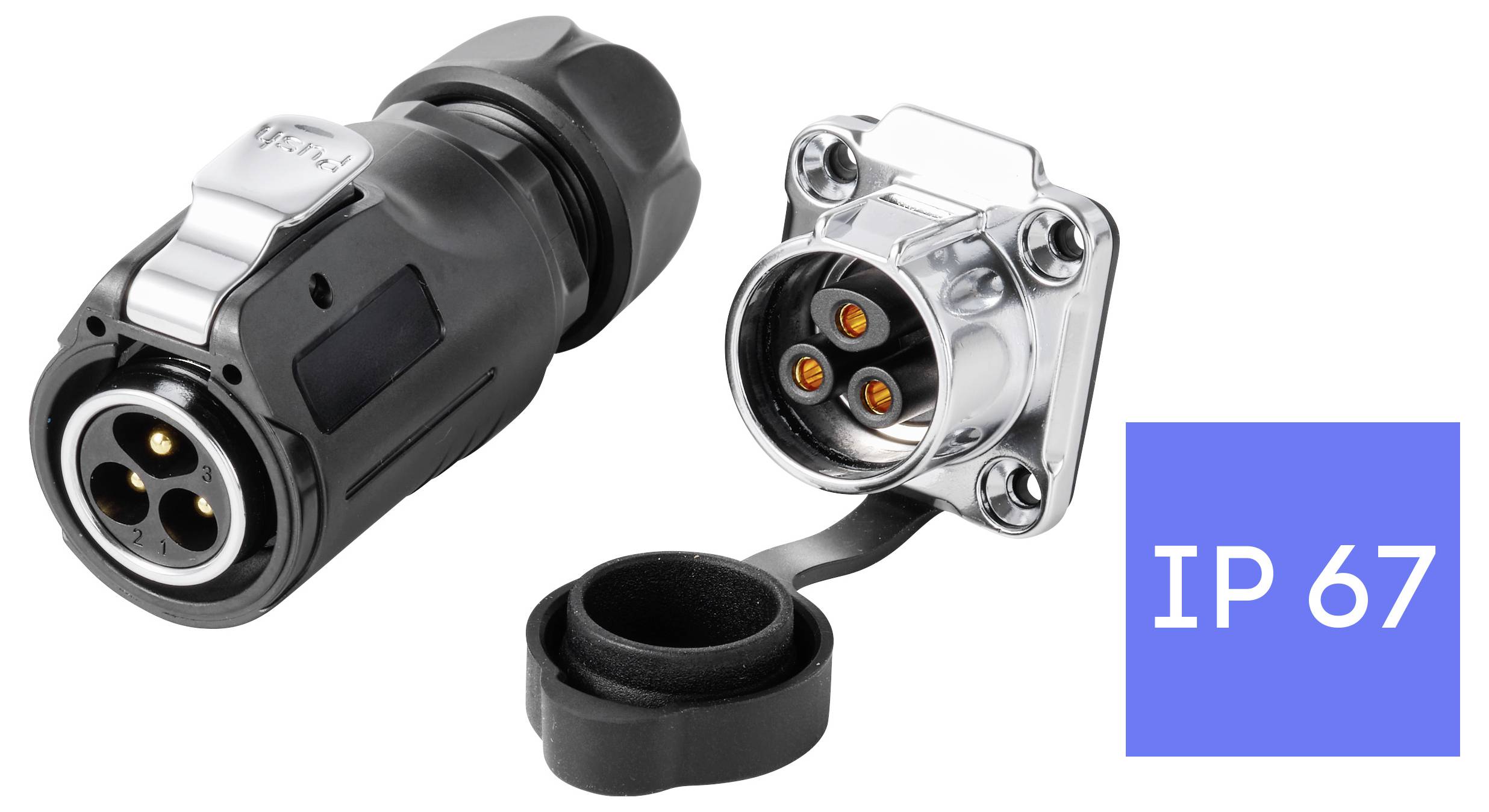

IP67
- Pin diameter
2.7 mm
Documents & Downloads
Datasheet
Datasheet 3758564 TRU COMPONENTS TC-15034256 Connector set Waterproof connector Total number of pins: 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3758564 TRU COMPONENTS TC-15034256 Connector set Waterproof connector Total number of pins: 3 1 pc(s)
Description

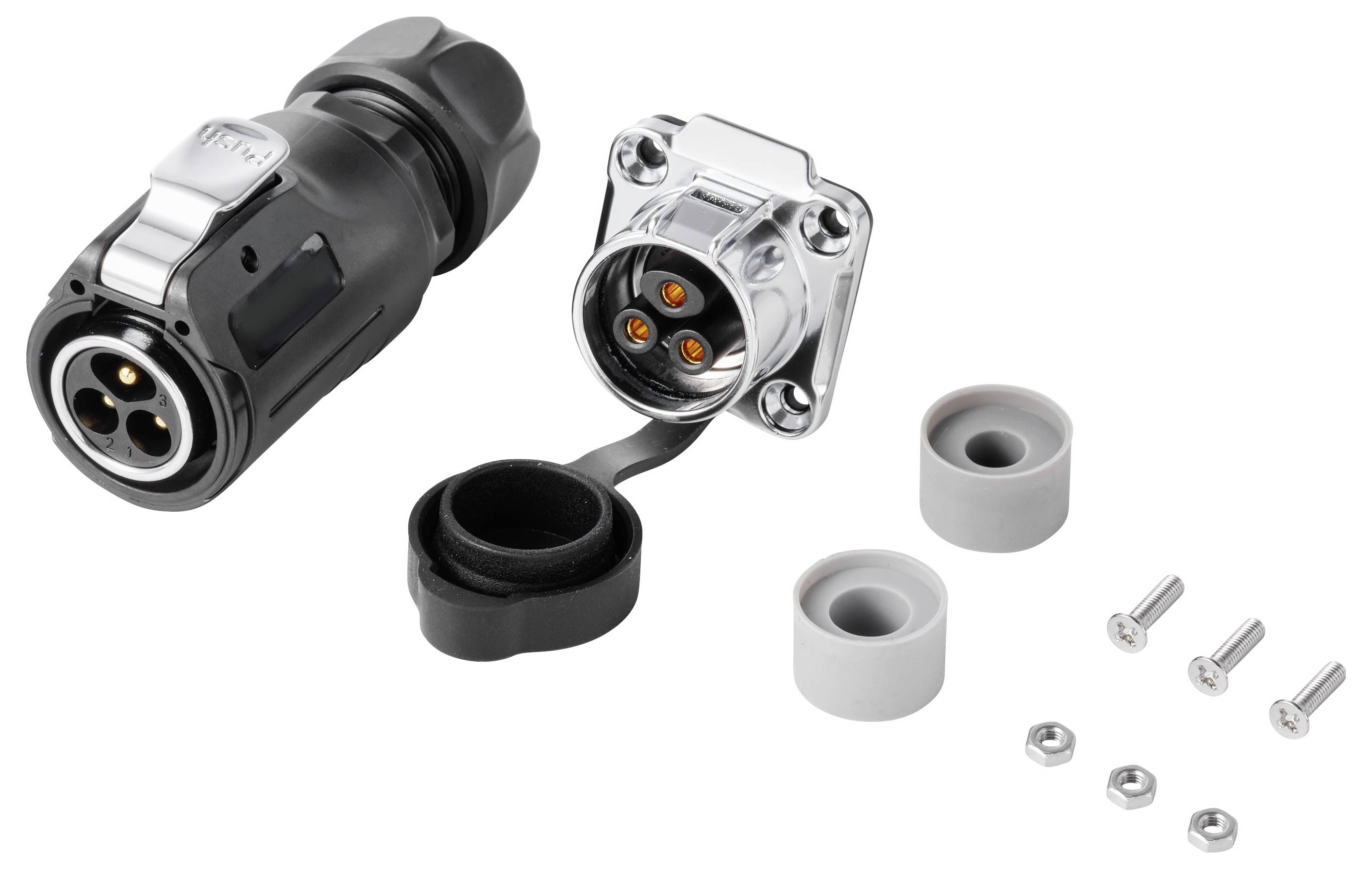

Scope of delivery
- 1x Male and female connector set (12 mm tail seal assembly)
- 1x 6.5 mm tail seal
- 1x 8.5 mm tail seal
- 4x screws and nuts
