Name: TRU COMPONENTS TC-9072484 Motor controller 1 pc(s) Compatible with (development kits): Arduino
Brand: TRU COMPONENTS
SKU: 2268121
Availability: InStock

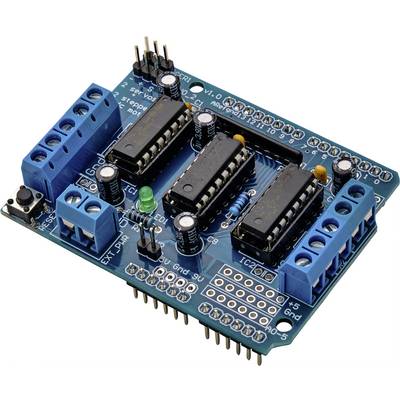

Arduino shield with microchip slots and connectors, on a blue printed circuit board with labels and various components.

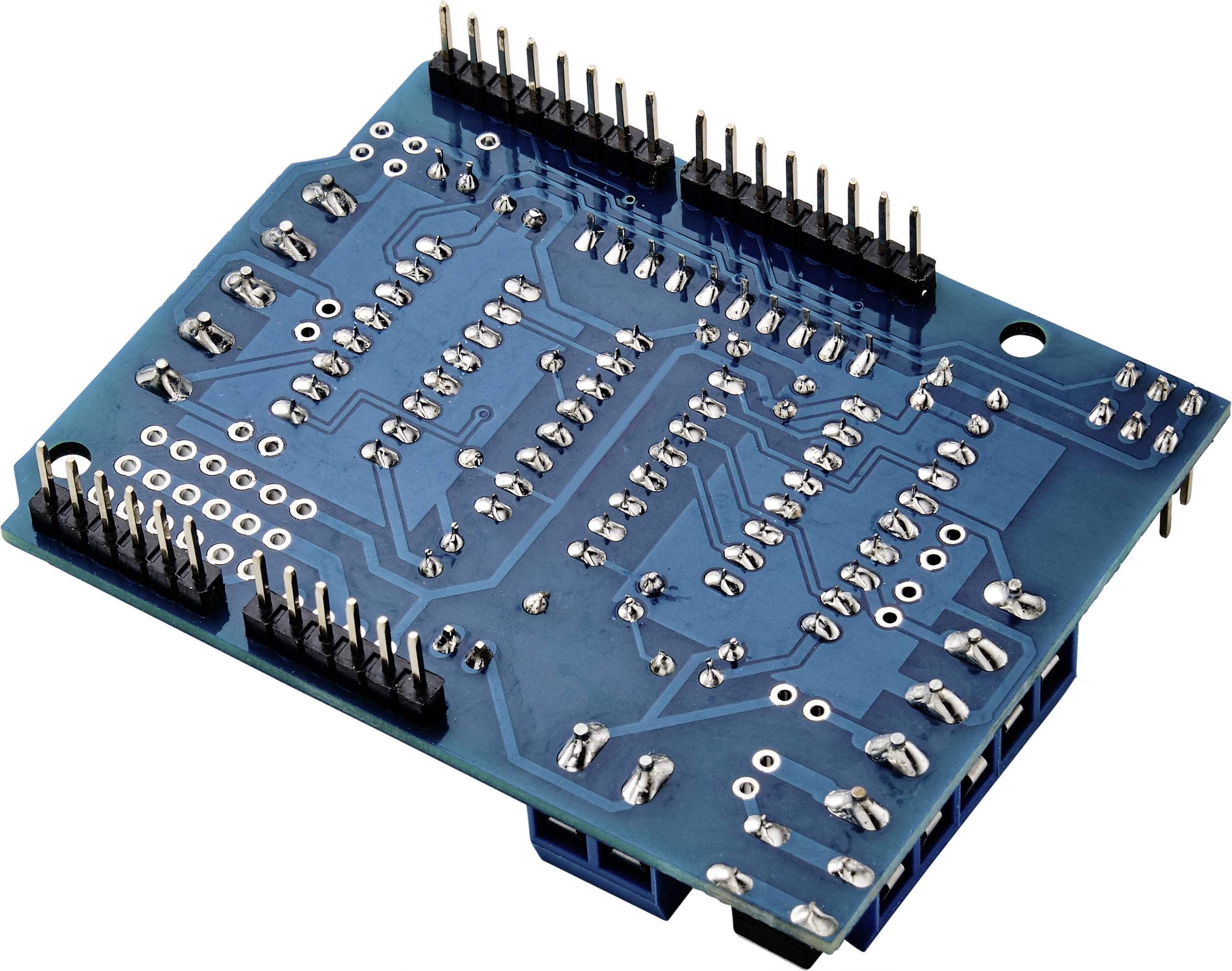

A blue printed circuit board with numerous electronic components and solder points, with multiple connection pins clearly visible.

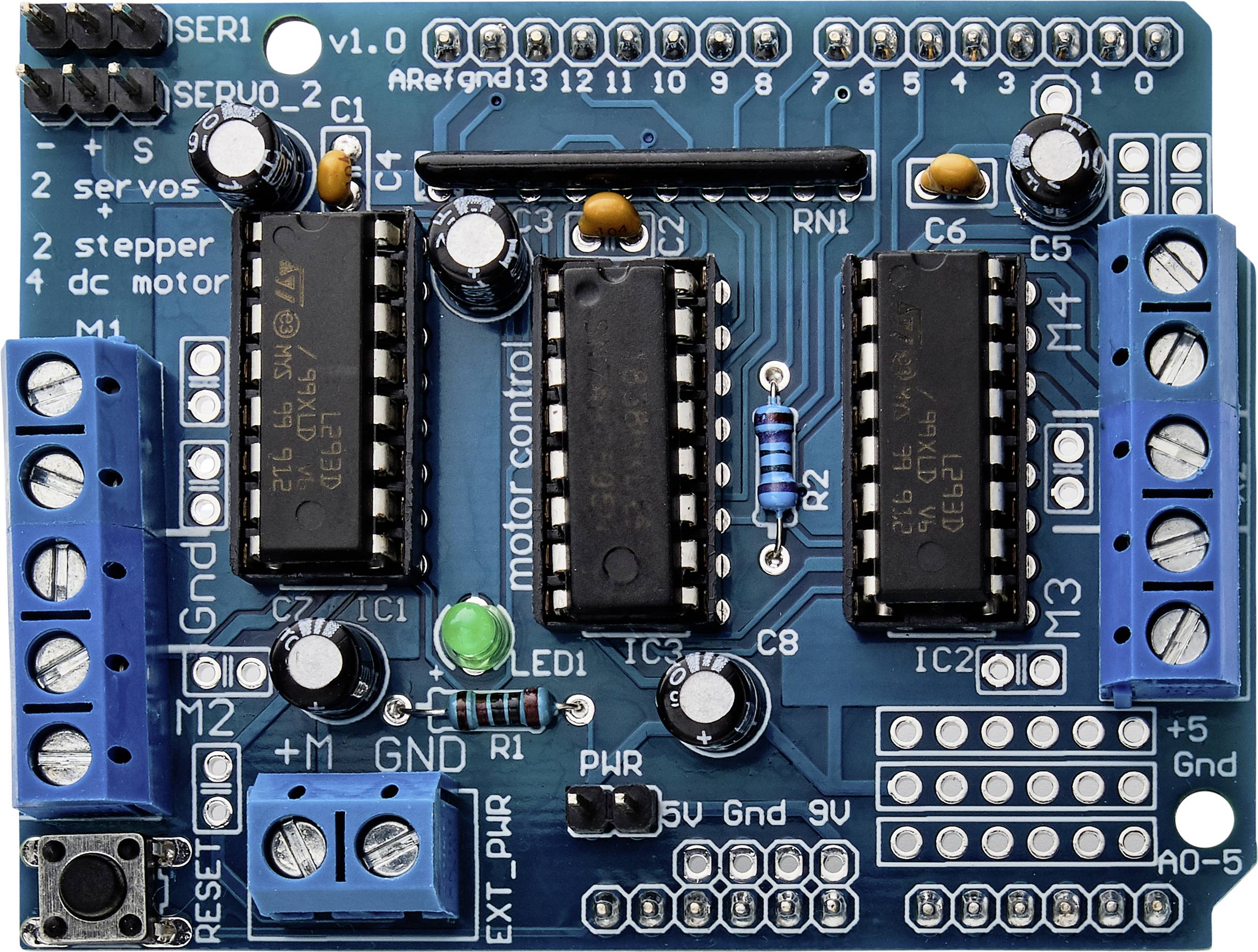

'An Arduino motor shield board with various connectors and components for controlling servos, stepper motors and DC motors.'

A blue printed circuit board with numerous silver solder contacts and electrical connections supporting electronic circuits.

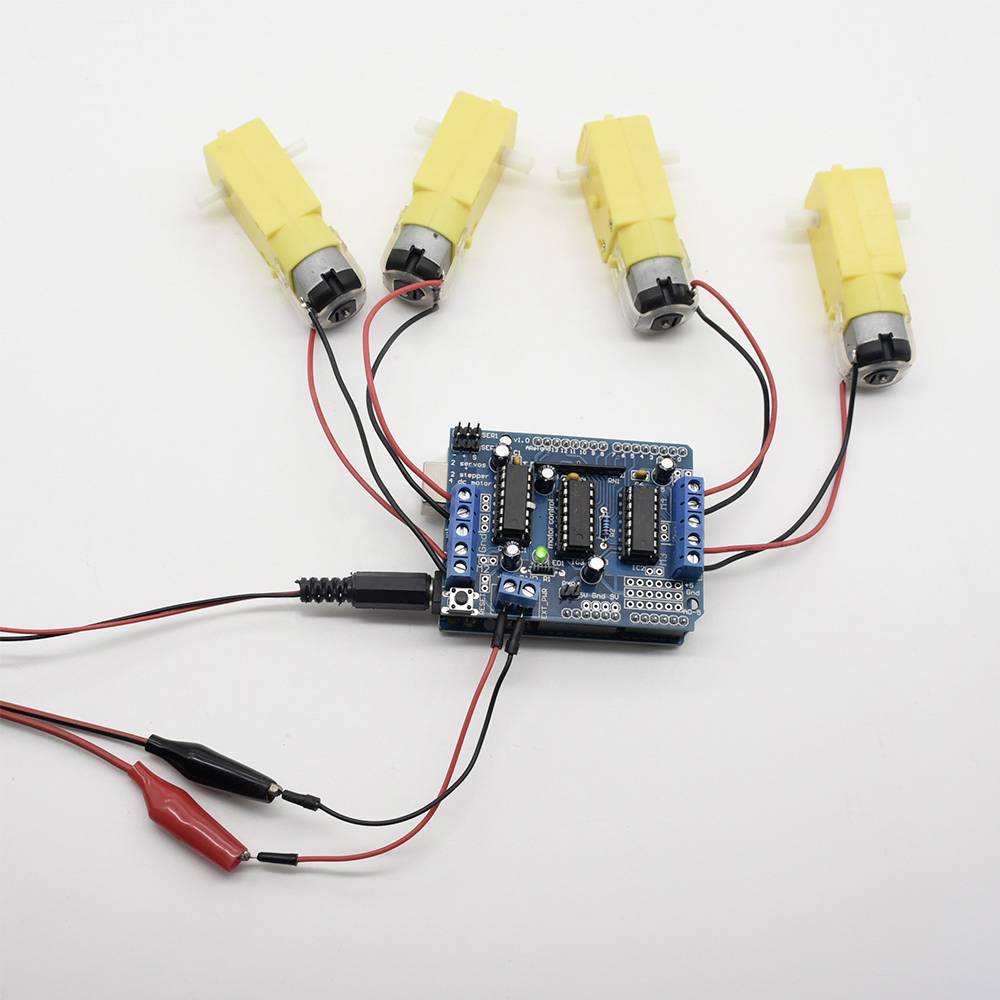

A blue circuit board is connected to four yellow motors and red and black cables. The circuit board is illuminated by green LEDs.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

165 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.49 / piece)

€ 8.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Motor Control Module L293D for Arduino

Integrated L293D chip
Drives 4 DC motors with speed and direction control
Drives 2 stepper motors

Technical specifications

Motor Controller Module

Packaging type: Bulk

Product type: Motor controller

Compatible with: Arduino

Interfaces: Terminals
Pin header

Suitable for: Arduino

Tool type: Motor controller

Height: 20 mm

Length: 55 mm

Width: 68 mm

Weight: 32.6 g

Compatible with: Arduino

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2268121 TRU COMPONENTS TC-9072484 Motor controller 1 pc(s) Compatible with (development kits): Arduino

Description

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. In using this chip, you can use DC motors and power supplies of up to 10 Volts. That's some pretty big motor! The chip can also supply a maximum current of 600mA per channel. Also known as a type of H-Bridge, the L293D chip is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.

Features

4.5 – 25V motor voltage range
1.2A peak current per channel (600mA continuous)
Chip L293 can use DC motors and power supplies of up to 10 Volts
The chip can supply a maximum current of 600mA per channel
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can

Scope of delivery

Motor Control Module

Description

Features

4.5 – 25V motor voltage range
1.2A peak current per channel (600mA continuous)
Chip L293 can use DC motors and power supplies of up to 10 Volts
The chip can supply a maximum current of 600mA per channel
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can
