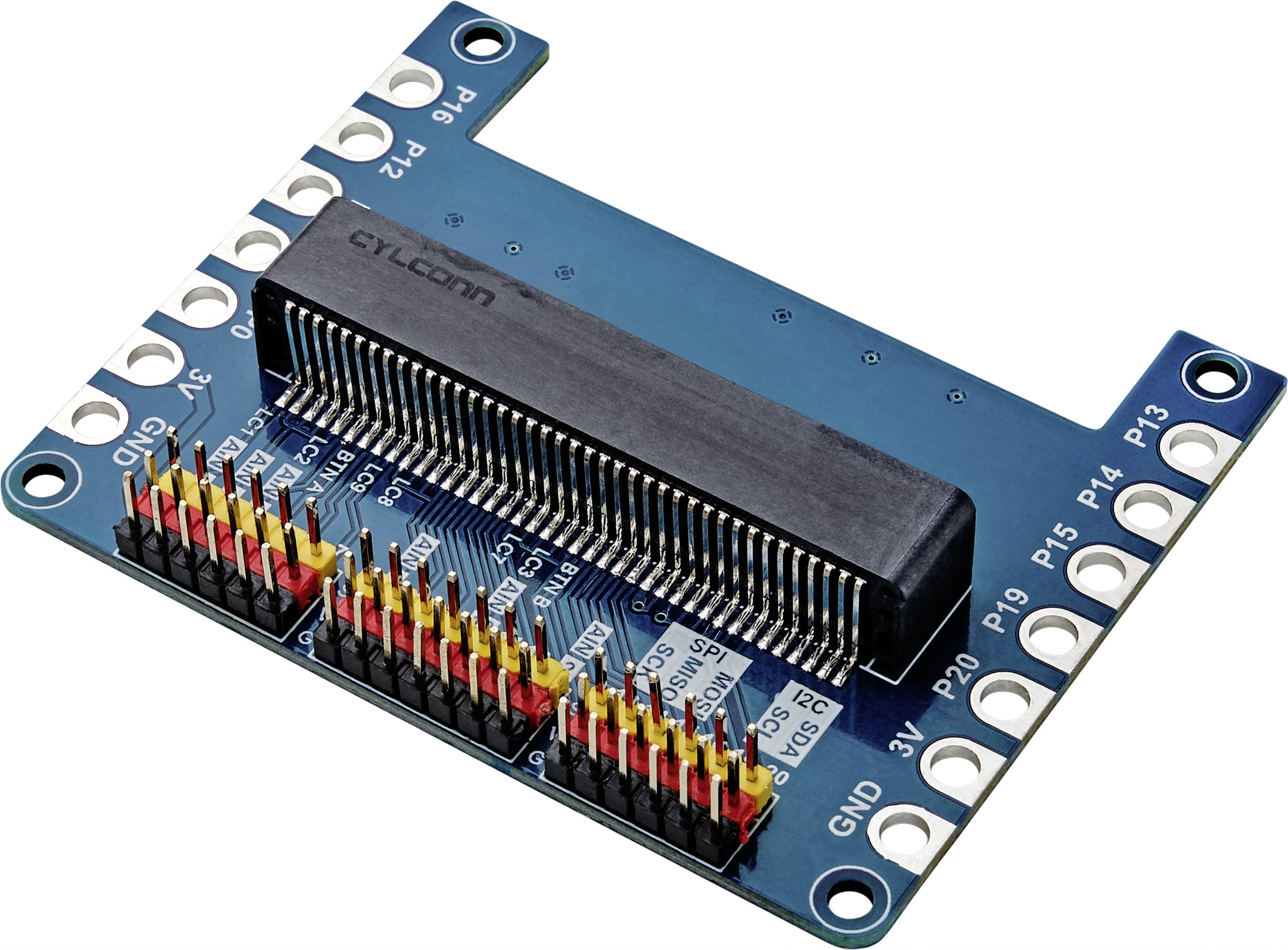

TRU COMPONENTS TC-9072532 Sensor module 1 pc(s) Compatible with (development kits): BBC micro:bit

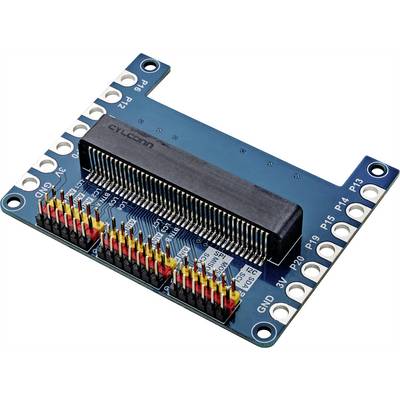

A blue electronics module with multiple golden pins and a black connector, labelled with 'P8', 'P2' and more.
Blue circuit board with visible traces and connection pins, suitable for electronic applications.
'Electronic circuit board with multiple connectors and a long black connector in the centre. Labelled with GPIO pins and control tracks.'
A blue, rectangular printed circuit board with visible copper tracks and solder points. It has multiple connection points along the edges.
'A microcontroller board with cable connections and an attached LED light module, being used in a circuit.'
1/5
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 8.99 / piece)
€ 8.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

3V Sensor Shield for BBC micro:bit

  • Easy connection of circuits with the help of jumper wires
  • Standard GVS sensor control pin
  • 4 installation holes

Technical specifications

  • 3V Sensor Shield
Packaging type

Bulk

Series

micro:bit

Product type

Sensor module

Compatible with

BBC micro:bit

Min. operating voltage

3 V

MC layout

ARM Cortex-M0+

Suitable for

BBC micro:bit

Tool type

Expansion board

Height

12 mm

Length

62 mm

Width

78 mm

Weight

23 g

Compatible with

BBC micro:bit

Technology

32-bit MCU

Plastic free packaging

Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2268133 TRU COMPONENTS TC-9072532 Sensor module 1 pc(s) Compatible with (development kits): BBC micro:bit

Description

This sensor shield has led all IO pins at the edge of the micro:bit main board to the 3Pin interface. These offer a simple possibility to connect circuits with the help of jumper wires. Label G means GND; V is VCC (3.0-3V); S is signal pin; corresponds to the IO pins of the micro:bit motherboard. You can connect the gold rings on the sensor shield to other sensors or modules using the alligator clamp cable. Or you can use jumper wires to connect the sensors/modules to the pin headers on the sensor shield.

This text is machine translated.

Scope of delivery

  • 3V Sensor Shield for BBC micro:bit
