TRU COMPONENTS TC-9072544 Prototyping board 1 pc(s) Compatible with (development kits): BBC micro:bit

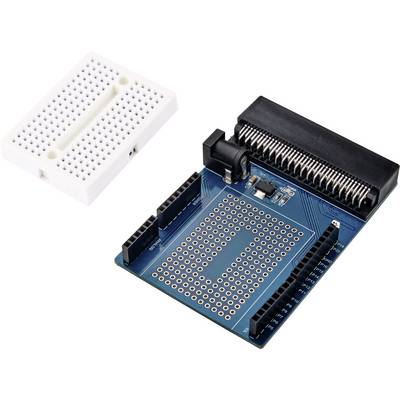

'Breadboard and expansion board with pins and connectors, for use in electronics projects and prototype development.'
Blue printed circuit board shield with numerous solder points and connector interfaces, used for electronics projects and prototyping.
An electronic circuit with an expansion board on the left and a breadboard on the right for prototype development.
Blue computer microchip board with visible circuit tracks and pins in a vertical arrangement.
A microcontroller circuit board with an attached LED module that is brightly illuminated. Cables connect the circuit board to the module.
1/5
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
99 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Prototype board with power supply for BBC micro:bit

  • Prototype board with mini breadboard
  • DC socket power supply interface
  • Arduino UNO I/O pin version

Technical specifications

  • Prototype board with mini breadboard
Packaging type

Bulk

Product type

Prototyping board

Compatible with

BBC micro:bit

Interfaces

DC 5.5 socket

Pin header

Output voltage (max.)

12 V

Output voltage (min.)

4.75 V

Suitable for

BBC micro:bit

Height

13 mm

Length

82 mm

Width

57 mm

Weight

31.8 g

Compatible with

BBC micro:bit

Plastic free packaging

Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2268136 TRU COMPONENTS TC-9072544 Prototyping board 1 pc(s) Compatible with (development kits): BBC micro:bit

Description

This breakout board breaks out all pins and the power of the micro:bit development board on both sides of the socket board to allow easy soldering of the components on the board, and you can also connect the circuit with a small breadboard.
Connect the breadboard to the breadboard with double-sided adhesive. Note that the breadboard and breakout board are separated in the packaging.
The expansion area is equipped with a double-sided PCB through-hole connection, the front and rear sides can be welded with components, on the rear side IO with patch pads, easy for cable connection. A small breadboard is placed on the center part to facilitate experimental expansion.

This text is machine translated.

Scope of delivery

  • Prototype board with power supply for BBC micro:bit
