Name: Trumeter 7111 Pulse counter
Brand: Trumeter
SKU: 101768
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

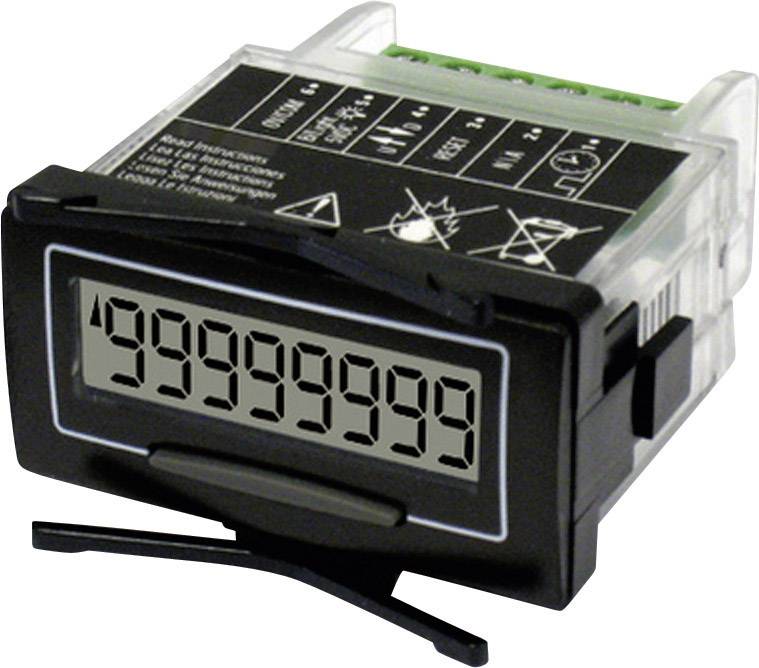

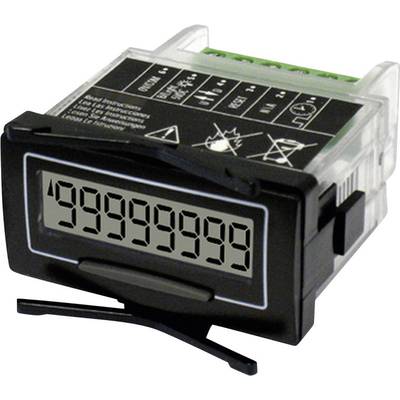

Digital meter with a black casing and display, showing '99999999'. Green connectors are visible at the top.

A digital counter with a black casing displays the number '99999999'. Green connection terminals are located at the top.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

23 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

7111 Electronic impulse counter

9 mm high contrast-rich LCD display
10-year battery life
Bi-directional counting
Up to 10 kHz meter frequency
External reset input
CE, UL and cUL/CSA tested
Amber-coloured background lighting

Technical specifications

Product type: Pulse counter

Reading type: Pulse

Reading range (min.): 0 Hz

Type: 7111

Reading range (max.): 10000 Hz

Display technology: LCD

: IP65 (on front)

Recess width: 44.9 mm

Display (counts): 99999999

Recess height: 21.9 mm

Operating voltage: 18 V DC

Dim: (L x W x H) 53.4 x 48 x 24 mm

Weight: 62 g

Max. operating voltage: 3 V DC

Min. operating voltage: 3 V DC

Display lighting: green

Recess depth: 51 mm

Factory colour: Black

Width: 48 mm

Height: 24 mm

Length: 53.4 mm

Frame width: 48 mm

Frame height: 0.24 cm

Interfaces: Screw terminal

Digit height: 9 mm

Depth: 53.4 mm

Display (details): 8-digit LCD black

Counter range: 99999999 display overflow to 0

Documents & Downloads

Datasheet

Datasheet 101768 Trumeter 7111 Pulse counter

User & Safety Instructions

User & Safety Instructions 101768 Trumeter 7111 Pulse counter

Description

8-digit self-sufficient bi-directional impulse counter with reset button and background lighting. This compact counter with LCD-display was developed for a large number of applications. Screw connections ensure a quick cabling. The equipment includes background lighting (external 5V DC supply necessary), selectable decimal point and display of counting direction.
