Name: Trumeter 7111HV Pulse counter
Brand: Trumeter
SKU: 101769
Availability: InStock

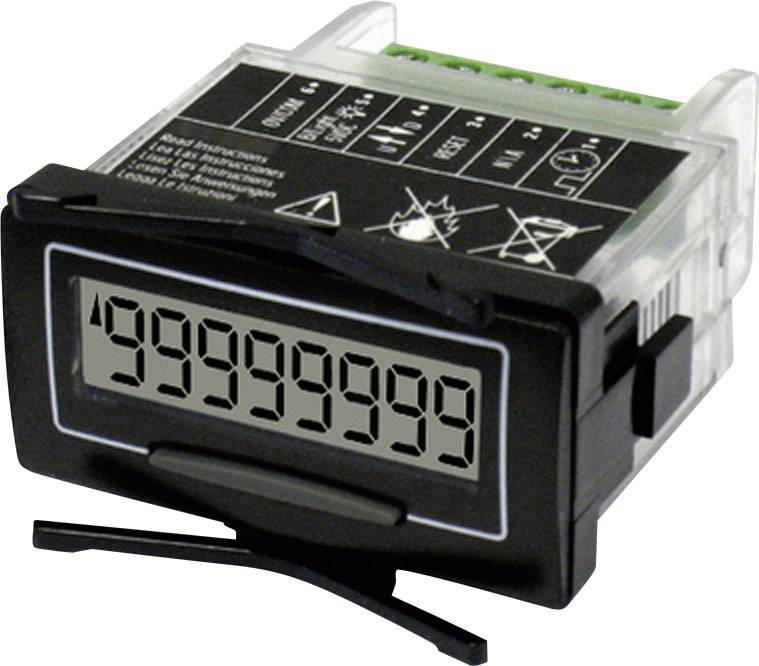

Electronic counter with digital display, showing '99999999'. Black housing, connections on top. Suitable for industrial applications.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Trumeter 7111HV Pulse Counter

8 digit
Counting up or down
Self-powered with integrated battery
Counter input 10 Hz max. 10 to 240 V AC or 5 to 110 V DC
TTL/CMOS compatible
Reset button and external reset input
Counting direction input
Backlight 5 V DC external
Assembly dimensions 45 x 22.5 mm

Technical specifications

Product type: Pulse counter

Reading type: Pulse

Reading range (min.): 0 Hz

Type: 7111HV

Reading range (max.): 10 Hz

Display technology: LCD

: IP65 (on front)

Recess width: 44.9 mm

Display (counts): 99999999

Recess height: 21.9 mm

Dim: (L x W x H) 53.4 x 48 x 24 mm

Weight: 62 g

Max. operating voltage: 3 V DC

Min. operating voltage: 3 V DC

Display lighting: green

Recess depth: 51 mm

Factory colour: Black

Width: 48 mm

Height: 24 mm

Length: 53.4 mm

Frame width: 48 mm

Frame height: 0.24 cm

Interfaces: Screw terminal

Digit height: 9 mm

Documents & Downloads

Datasheet

Datasheet 101769 Trumeter 7111HV Pulse counter

User & Safety Instructions

User & Safety Instructions 101769 Trumeter 7111HV Pulse counter

Description

Trumeter 7111HV is an 8-digit self-powered bidirectional pulse counter with reset button and backlight. Input voltage 10 - 110 V DC or 10 - 240 V AC. This compact counter with LC-display was developed for a large number of applications. Screw connections ensure quick cabling. The equipment includes background lighting (external 5 V DC supply necessary), selectable decimal point and display of counting direction.
