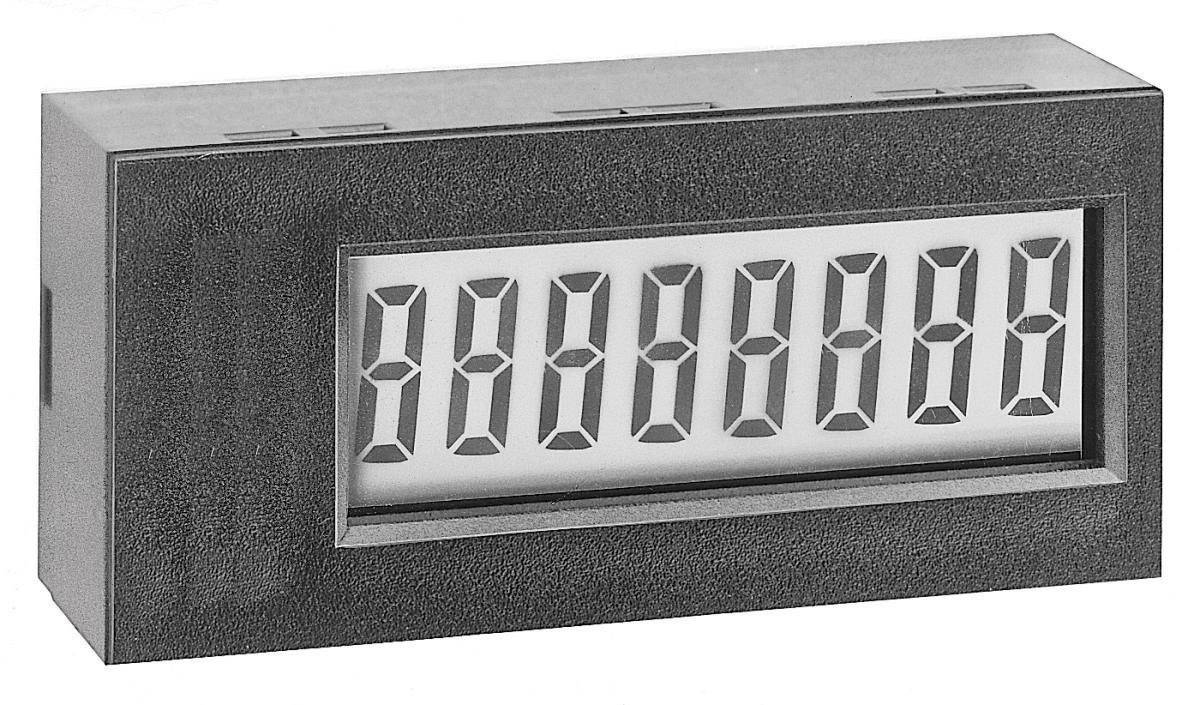

Trumeter 7401AS Pulse counter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 47.99 / piece)
€ 47.99
incl. VAT
14-day return policy included
Highlights & Details
Electronic pulse counter 7401AS bi-directional
- 8 digit
- Counting up or down
- Count range 99999999 display overflow to 0
- Count input 5 kHz max.
- TTL/CMOS compatible
- External reset input
- Counting direction input
- PCB mounting
Technical specifications
- Product type
Pulse counter
- Reading type
Pulse
- Reading range (min.)
0 Hz
- Type
7401AS
- Reading range (max.)
5000 Hz
- Display technology
LCD
- Recess width
47 mm
- Display (counts)
99999999
- Recess height
21 mm
- Operating voltage
3 V DC
- Dim
(L x W x H) 16.5 x 47 x 21 mm
- Max. operating voltage
3.4 V DC
- Min. operating voltage
2.6 V DC
- Features
Reset function
- Factory colour
Black
- Width
47 mm
- Height
21 mm
- Length
16.5 mm
- Frame width
47 mm
- Frame height
0.21 cm
- Interfaces
CMOS
- Digits
8
- Display (details)
LCD
- Operating voltage
2.6 - 3.4 V DC
Documents & Downloads
Datasheet
Datasheet 103261 Trumeter 7401AS Pulse counter
User & Safety Instructions
User & Safety Instructions 103261 Trumeter 7401AS Pulse counter
Description
Trumeter 7401AS is a bidirectional totalizing counter for PCB mounting. By using the latest CMOS circuit, an expected battery life of 10 years is achieved. The totalizing counter also has a contact closing input for low speeds and an integrated debounce circuit.
This text is machine translated.
This text is machine translated.
