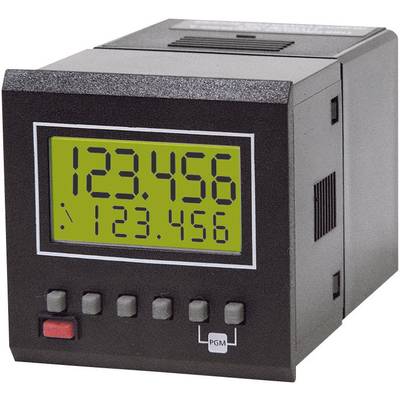

Trumeter 7922 Preset counter
EAN:
Part number:
Item no:
Number
Total (€ 201.67 / piece)
€ 201.67
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Counter modules 79 series
- Pre-selection counter with pre-selector
- 2 preset values
- 6-digit
- Operating voltage 85 - 265 V AC or 10 - 26 V DC
- Auxiliary output 12 V DC
- 2 relay outputs
- Assembly dimensions 45 x 45 mm
Technical specifications
- Product type
Preset counter
- Reading type
Pulse
- Reading range (min.)
0 Hz
- Type
7922
- Reading range (max.)
10000 Hz
- Display technology
LCD
IP65 (on front)
- Recess width
45 mm
- Display (counts)
999999
- Recess height
45 mm
- Operating voltage
110 V AC
230 V AC
12 V DC
24 V DC
- Dim
(L x W x H) 93 x 48 x 48 mm
- Max. operating voltage
240 V AC
24 V DC
- Min. operating voltage
94 V AC
12 V DC
- Display lighting
green
- Recess depth
93 mm
- Factory colour
Black
- Width
48 mm
- Height
48 mm
- Length
93 mm
- Frame width
48 mm
- Frame height
0.48 cm
- Digit height
8.5/4.5 mm
- Digits
6
- Assembly dimensions
45 x 45 mm
- Total dimensions
48 x 48 mm
- Counter range
99999999
- Temperature range
10 - 60 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 101767 Trumeter 7922 Preset counter
Description
6-digit preset counters with LC supertwist displays, some in the series are lit and can quantify the incoming pulse with a factor. The forwards and backwards counter switches either at the preset value or when reaching 0. The 2-way display shows the count (8.5 mm high digits) and the preset value (4.5 mm high digits). Wide power supply range, a bi-stable, 1-pin output relay programmable as opener or closer supplies a constant or pulsed (up to 9.9 s) output signal. Easy to read due to supertwist LC display
Features
- 2 Preset Values
- 2 output relays
- Backlit display
- Backwards or forwards (quadrature)
- Sensor supply 12 V/100 mA.
