Name: Trumeter 7932 Preset counter
Brand: Trumeter
SKU: 101766
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

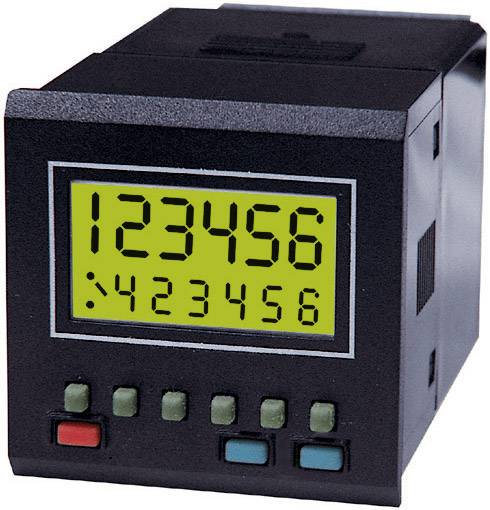

Digital timer with LCD display showing the numbers '123456' at the top and '423456' at the bottom. Four coloured buttons are located underneath.

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 214.99 / piece)

€ 245.00

-12 %

€ 214.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Counter modules 79 series

Preset counter and timer with pre-selector
1 preset value
6-digit
Operating voltage 85 - 265 V AC or 10 - 26 V DC
Auxiliary output 12 V DC
1 relay output
Assembly dimensions 45 x 45 mm

Technical specifications

Product type: Preset counter

Reading type: Pulse

Reading range (min.): 0 Hz

Type: 7932

Reading range (max.): 10000 Hz

Display technology: LCD

: IP65 (on front)

Recess width: 45 mm

Display (counts): 999999

Recess height: 45 mm

Operating voltage: 110 V AC
230 V AC
12 V DC
24 V DC

Dim: (L x W x H) 93 x 48 x 48 mm

Max. operating voltage: 240 V AC
24 V DC

Min. operating voltage: 94 V AC
12 V DC

Display lighting: green

Recess depth: 93 mm

Factory colour: Black

Width: 48 mm

Height: 48 mm

Length: 93 mm

Frame width: 48 mm

Frame height: 0.48 cm

Interfaces: EEPROM

Digit height: 8.5/4.5 mm

Digits: 6

Assembly dimensions: 45 x 45 mm

Total dimensions: 48 x 48 mm

Counter range: 99999999

Temperature range: 10 - 60 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 101766 Trumeter 7932 Preset counter

Description

6-digit preset counters with LC supertwist displays, some in the series are lit and can quantify the incoming pulse with a factor. The forwards and backwards counter switches either at the preset value or when reaching 0. The 2-way display shows the count (8.5 mm high digits) and the preset value (4.5 mm high digits). Wide power supply range, a bi-stable, 1-pin output relay programmable as opener or closer supplies a constant or pulsed (up to 9.9 s) output signal. Easy to read due to supertwist LC display
