Name: Universal Serial Bus Plug MOL Micro Solutions Right-angled 480372200 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2901094
Availability: InStock

A Molex USB plug with the printed number '17491', metallic housing, two rectangular points at the tip.

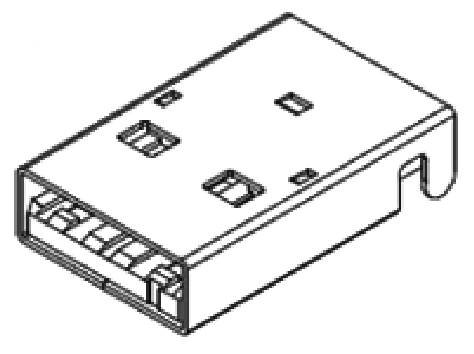

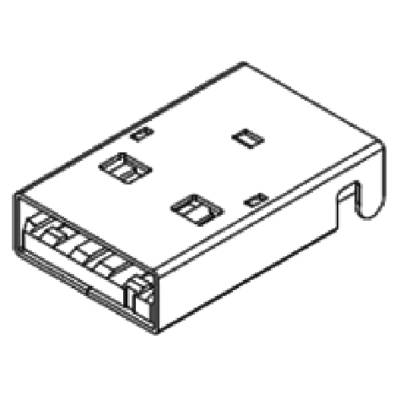

A schematic drawing of a USB connector showing its rectangular shape and the position of the electrical contacts.

1/2

Image similar

Packaging type

Tape on Full reel

Product type

USB connector

Connector type

Plug

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

285 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Tape on Full reel
Piece(s) (Content: )

Total (€ 0.76 / piece)

€ 0.76

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Plug, Type A, Right-Angle, Surface Mount, Straight Tab 3.80mm, 0.76µm Gold (Au) Platinum, PCB thickness 1.60mm, tape on reel package, lead-free
This text is machine translated.

Our service for you

Technical specifications

Application: Cable to PCB
Number of rows: 1
Min. Coating - Plug-in area: 0,762 µm
Inputs 1
Recommended PCB thickness 1.60 mm
Material - coating Crimp area: Tin
Material - coating plug area: Gold
Pitch – crimp range 2.00 mm, 2.50 mm
Grid pitch - plug-in area 2.00 mm, 2.50 mm
Board retention force: Yes
Coded to the opposite: Yes

Packaging type: Tape on Full reel

Type: MOL Micro Solutions

Product type: USB connector

Connector type: Plug

Type: Right-angled

Number of pins: 4

USB type: A

Connection: SMT

Connection: Front-panel mounting

Manufacturer part #: 480372200

Factory colour: Black

Content: 1 pc(s)

Nominal voltage (details): 150 V AC

Nominal current (details): 1.5 A

RoHS-compliant: Yes

Features: + shielding
encodable
+ locking mechanism

Max. temperature: +85 °C

Min. temperature: -20 °C

Temperature range: Process temperature max. 260 °C

Documents & Downloads

Datasheet

Datasheet 2901094 Universal Serial Bus Plug MOL Micro Solutions Right-angled 480372200 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2901094 Universal Serial Bus Plug MOL Micro Solutions Right-angled 480372200 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2901094 Universal Serial Bus Plug MOL Micro Solutions Right-angled 480372200 Molex Content: 1 pc(s)

Description

Universal Serial Bus (USB) Shielded I/O Plug, Type A, Right-Angle, Surface Mount, Straight Tab 3.80mm, 0.76µm Gold (Au) Plating, PCB Thickness 1.60mm, Tape on Reel Package, Lead-Free

Description

Universal Serial Bus (USB) Shielded I/O Plug, Type A, Right-Angle, Surface Mount, Straight Tab 3.80mm, 0.76µm Gold (Au) Plating, PCB Thickness 1.60mm, Tape on Reel Package, Lead-Free
