Name: Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676430910 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2449857
Availability: InStock

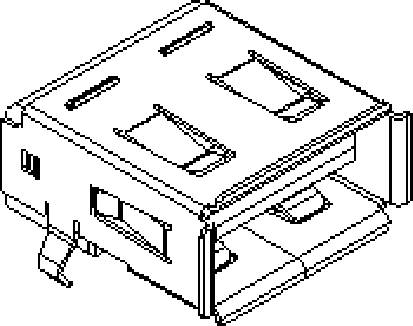

A USB socket with a rectangular metal casing and multiple contacts, suitable for connecting electronic devices.

Technical drawing of a double-sided cassette recorder. Various compartments and control elements are visible.

1/2

Image similar

Packaging type

Tray

Product type

USB connector

Connector type

Socket

Number of pins

USB type

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

79 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 2

Total (€ 1.49 / piece)

€ 1.71

-13 %

€ 2.98

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal Serial Bus

Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, Black Polyester, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, Lead-Free
This text is machine translated.

Technical specifications

Application: Cable to PCBNumber of rows: 1Inputs: 1Recommended PCB thickness is 1.60 mmLength of soldering pins 2.60 mmMaterial - Coating Crimp range: TinMaterial - Coating Plug-in area: GoldPitch - Crimp range 2.00 mm, 2.50 mmPitch - mating range 2.00 mm, 2.50 mmRetention force PCB: YesCoded to counterpart: Yes

Packaging type: Tray

Type: Molex MOL Micro Solutions

Product type: USB connector

Connector type: Socket

Type: Right-angled

Number of pins: 4

USB type: A

Connector standard: USB 2.0

Connection: Soldering

Connection: Front-panel mounting

Manufacturer part #: 676430910

Factory colour: Black

Content: 1 pc(s)

Nominal voltage (details): 30 V DC

Nominal current (details): 1.5 A

RoHS-compliant: Yes

Features: + shielding
encodable
+ locking mechanism

Max. temperature: +85 °C

Min. temperature: -40 °C

Engineering Part No: 67643-0910

Engineering Series Name: USB B R/A RCPT

Engineering Series No: 67643

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2449857 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676430910 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2449857 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676430910 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2449857 Universal Serial Bus Socket Molex MOL Micro Solutions Right-angled 676430910 Molex Content: 1 pc(s)

Description

Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, Black Polyester, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, Lead-Free

Description

Universal Serial Bus (USB) Shielded I/O Receptacle, Right-Angle, Type A, Black Polyester, Gold (Au) Flash, PCB Thickness 1.60mm, without Upper Flange, Lead-Free
