Connectors & CablesConnectorsTelecom & IT ConnectorsUSB Connectors

USB and IEEE-1394 connectors Connector, mount 2410 11 Upright 157765 Lumberg Content: 1 pc(s)

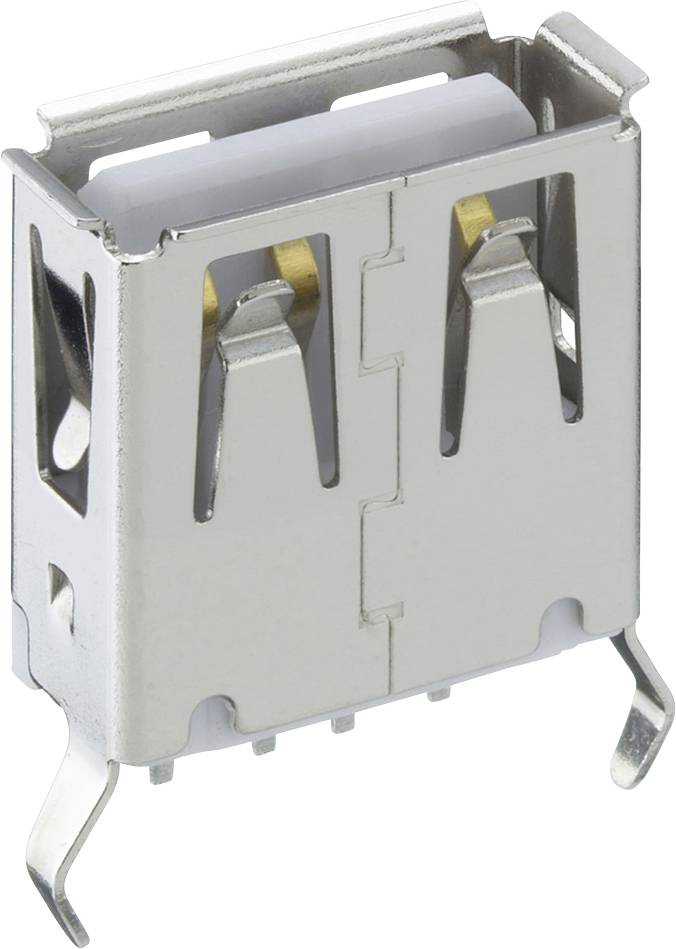

Close-up of a metal USB Type-A female port connector with four mounting pins, shown on a white background.
Product type
USB connector
Connector type
Connector, mount
Number of pins
4
USB type
A
Type
2410 11
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
500 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.79 / piece)
€ 1.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Plug-in force ≤ 35 N
  • Pull force ≥ 10 N
  • Continuous resistance ≤ 30 mΩ
  • Mating cycles 1500
  • Contact carrier PBT, V-0 acc. To UL94
  • Contact spring CuZn, gold-plated
  • Rated surge voltage 500 V/60 s.
Type

2410 11

Product type

USB connector

Connector type

Connector, mount

Type

Upright

Number of pins

4

USB type

A

Case material

Steel nickel plated

Manufacturer part #

157765

Content

1 pc(s)

Nominal voltage (details)

30 V DC

Nominal current (details)

≤ 1.5 A

Max. temperature

85 °C

Min. temperature

-45 °C

Documents & Downloads

Datasheet

Datasheet 3805167 USB and IEEE-1394 connectors Connector, mount 2410 11 Upright 157765 Lumberg Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3805167 USB and IEEE-1394 connectors Connector, mount 2410 11 Upright 157765 Lumberg Content: 1 pc(s)

Description

USB 2.0 Installation Type A coupling, vertical design, for PCBs
