USB and IEEE-1394 connectors Connector, mount 2436 03 27898 Lumberg Content: 1 pc(s)

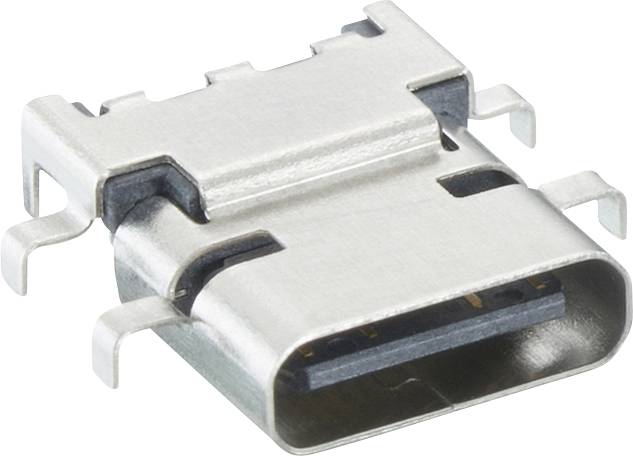

Close-up of a USB-C female connector, showing the metal port with mounting tabs for circuit board installation.<br>
Product type
USB connector
Connector type
Connector, mount
Number of pins
24
USB type
C®
Type
2436 03
Datasheet (PDF)
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
1000 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.29 / piece)
€ 4.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Temperature range --20°C/+70/85°C.
  • Insertion force 5–20 N
  • Pulling force 8–20 N
  • Continuous resistance ≤ 40 mΩ
  • Mating cycles 10000
  • Contact holder LCP, V-0 according to UL94
  • Contact spring: Cu-alloy, gold-plated in the plug-in area, nickel undercoated and tin plated in the soldering area
  • Rated surge voltage 100 V/60 s.
Type

2436 03

Product type

USB connector

Connector type

Connector, mount

Number of pins

24

USB type

C®

Connection

SMT

THR

Case material

Steel nickel plated

Manufacturer part #

27898

Content

1 pc(s)

Nominal voltage (details)

20 V

Nominal current (details)

5 A / 1.25 A / 0.25 A

Features

L-shaped

Max. temperature

85 °C

Min. temperature

-20 °C

Documents & Downloads

Datasheet

Datasheet 3805179 USB and IEEE-1394 connectors Connector, mount 2436 03 27898 Lumberg Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3805179 USB and IEEE-1394 connectors Connector, mount 2436 03 27898 Lumberg Content: 1 pc(s)

Description

USB 3.1 Type C Panel coupler, 24-pin, angled design, for PCBs, Surface Mount Technology (SMT/THR), for half-recessed installation (mid-mount)
