Name: USB-C® Adapter, 4.0, 90° angle left/right, Pro Adapter, right angle 10080135 BKL Electronic Content: 1 pc(s)
Brand: BKL Electronic
SKU: 3280544
Availability: InStock

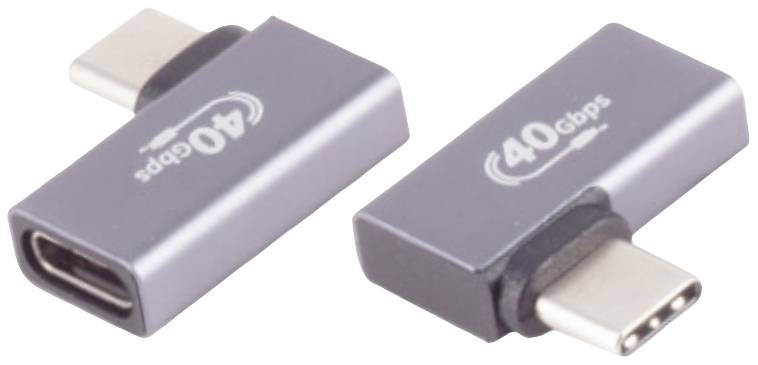

A USB-C adapter. Print: '40 Gbps' indicates the transfer speed. Oval design with a USB-C connector at both ends.

Packaging type

Single

Product type

Adapter

Connector type

Adapter, right angle

USB type

C®

Connector standard

USB-C® plug

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

65 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Single

Type: 10080135

Product type: Adapter

Connector type: Adapter, right angle

USB type: C®

Connector standard: USB-C® plug

Connection: USB Typ C®

Type A: USB-C® plug

Type B: USB-C® socket

Case material: Metal

Manufacturer part #: 10080135

Factory colour: Grey

Content: 1 pc(s)

Material: Aluminium

RoHS-compliant: Yes

Features: L-shaped

Documents & Downloads

Datasheet

Datasheet 3280544 USB-C® Adapter, 4.0, 90° angle left/right, Pro Adapter, right angle 10080135 BKL Electronic Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3280544 USB-C® Adapter, 4.0, 90° angle left/right, Pro Adapter, right angle 10080135 BKL Electronic Content: 1 pc(s)

Description

This adapter supports USB4® 40 Gbps and is backward compatible with SuperSpeed USB and hi-speed USB.

This text is machine translated.

Features

Connections: USB-C® plug angle to USB-C® socket
Angle: 90° left/right
USB version: USB 4.0 2nd Gen (USB4® 40Gbps)
Bandwidth up to 40 Gbps
Supports DP alternative mode DisplayPort 2.0 (up to 8K/6K/5K/60Hz, 4K/120Hz, 2x 4K/60Hz), PD up to 240W (48V/5A), SuperSpeed USB 5/10/20Gbps, PCI Express 3.0, bi-directional data transfer
Compatible with all USB-C® interfaces (among others): Hi-Speed USB, SuperSpeed USB, Thunderbolt™, USB4®
Property: USB-C® reversible interfaces
Plug housing: Metal (aluminum alloy) integrated in "Molding" the cases are securely connected to the plug

Hints

Info: Not all devices with USB-C® interface support the fast charging capability (PowerDelivery), the transmission of video signals (DP alternative mode) or the data transmission of 5/10/20/40 Gbit/s. For more information, contact your device manufacturer.

Description

This adapter supports USB4® 40 Gbps and is backward compatible with SuperSpeed USB and hi-speed USB.

This text is machine translated.

Features

Connections: USB-C® plug angle to USB-C® socket
Angle: 90° left/right
USB version: USB 4.0 2nd Gen (USB4® 40Gbps)
Bandwidth up to 40 Gbps
Supports DP alternative mode DisplayPort 2.0 (up to 8K/6K/5K/60Hz, 4K/120Hz, 2x 4K/60Hz), PD up to 240W (48V/5A), SuperSpeed USB 5/10/20Gbps, PCI Express 3.0, bi-directional data transfer
Compatible with all USB-C® interfaces (among others): Hi-Speed USB, SuperSpeed USB, Thunderbolt™, USB4®
Property: USB-C® reversible interfaces
Plug housing: Metal (aluminum alloy) integrated in "Molding" the cases are securely connected to the plug
