Name: V-TAC VT-60018CCT-RD 78766 LED surface-mount light EEC: E (A - G) 18 W Warm white to cool white White
Brand: V-TAC
SKU: 3781483
Availability: BackOrder

A white round flush-mount ceiling light fixture shown in side view.

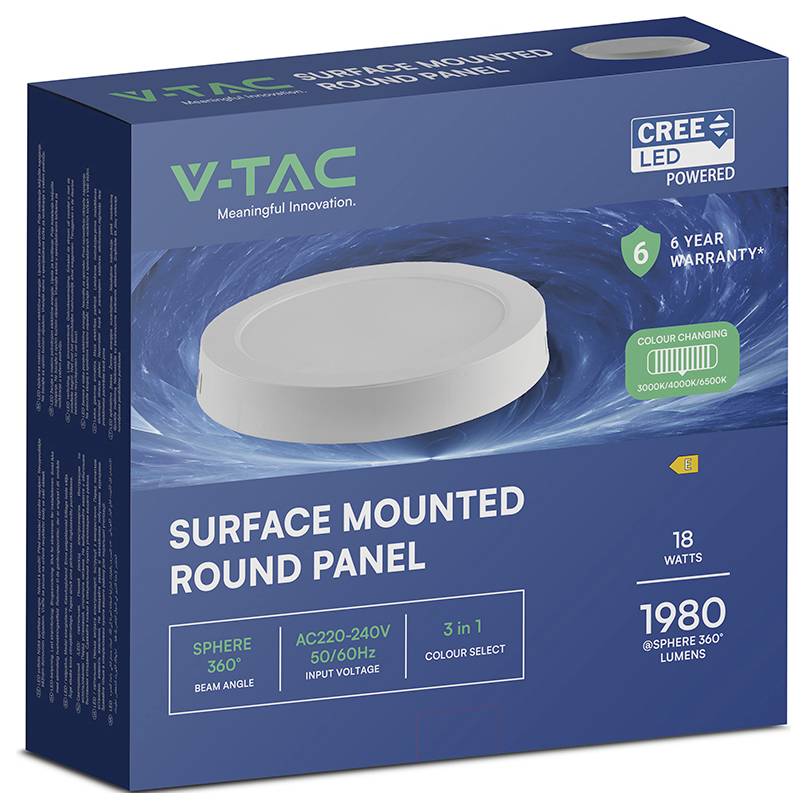

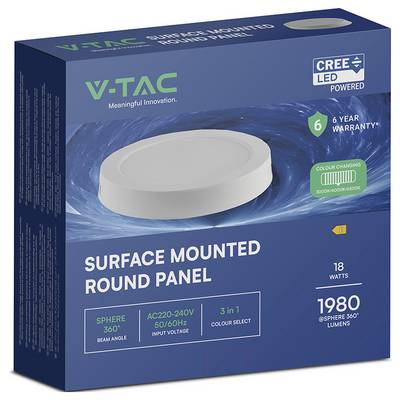

Packaging for a V-TAC surface mounted round LED panel, showing a white circular light, 'CREE LED powered', 18W, 1980 lumens, 6-year warranty, color changing.

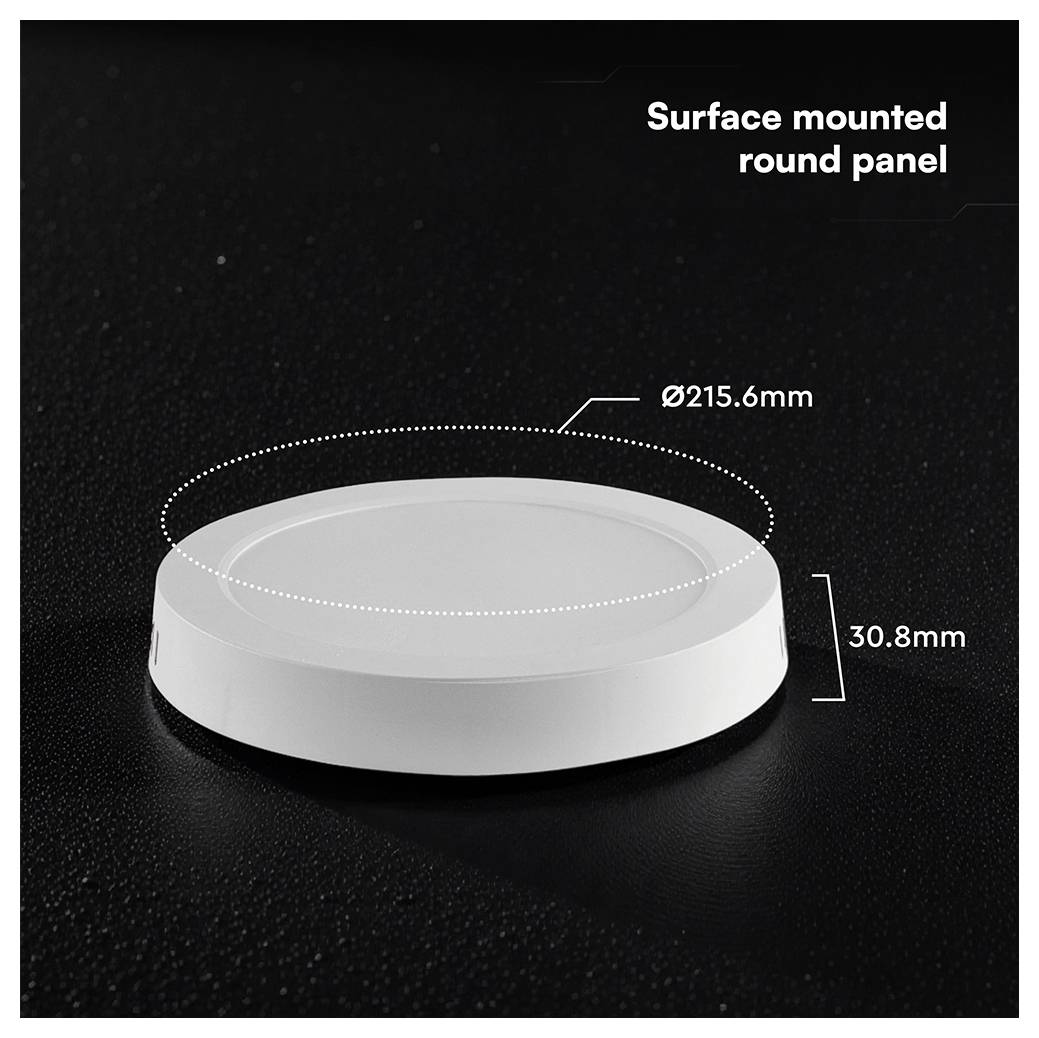

Surface mounted round panel light shown with dimensions Ø215.6 mm and 30.8 mm high.<br>

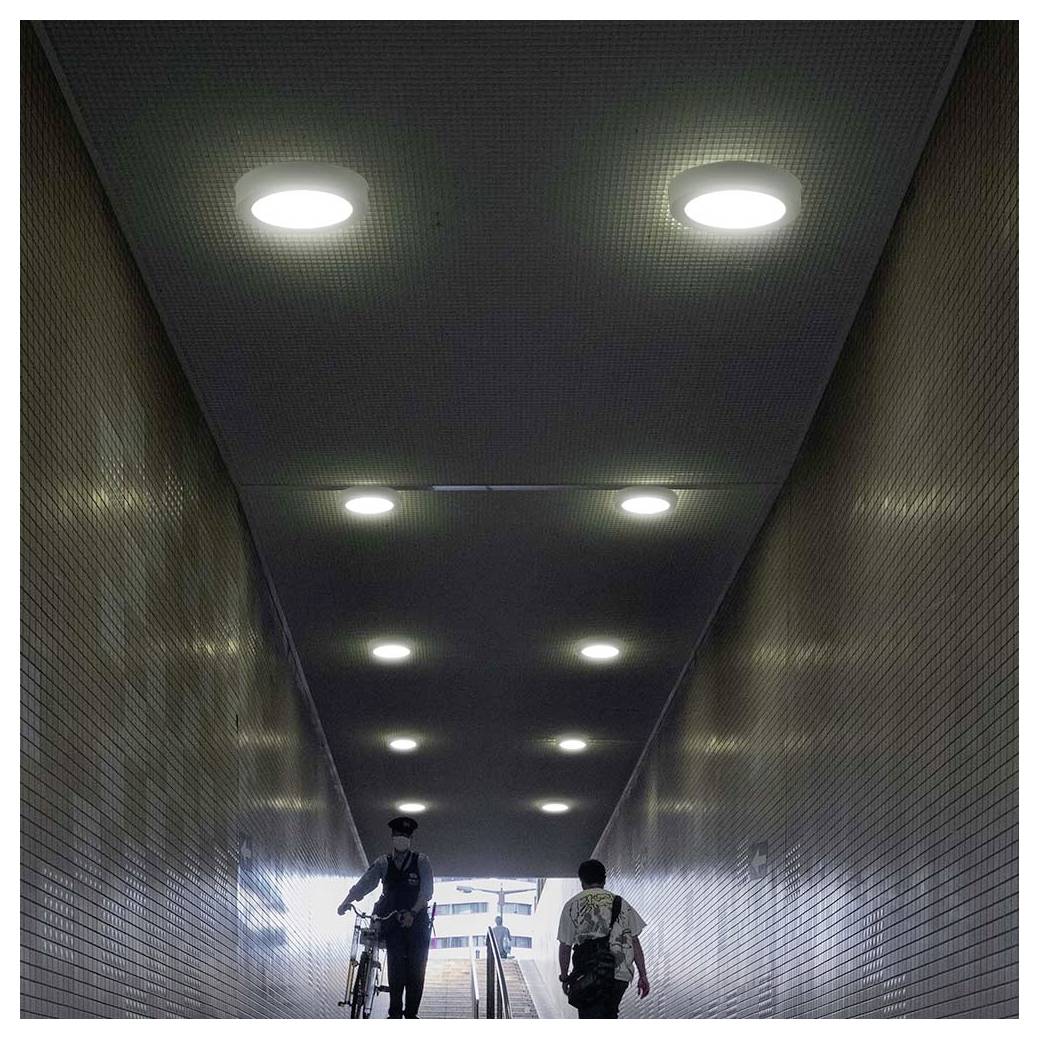

Low-angle view down a tiled tunnel with ceiling lights, showing a cyclist and a pedestrian walking toward a bright exit.<br>

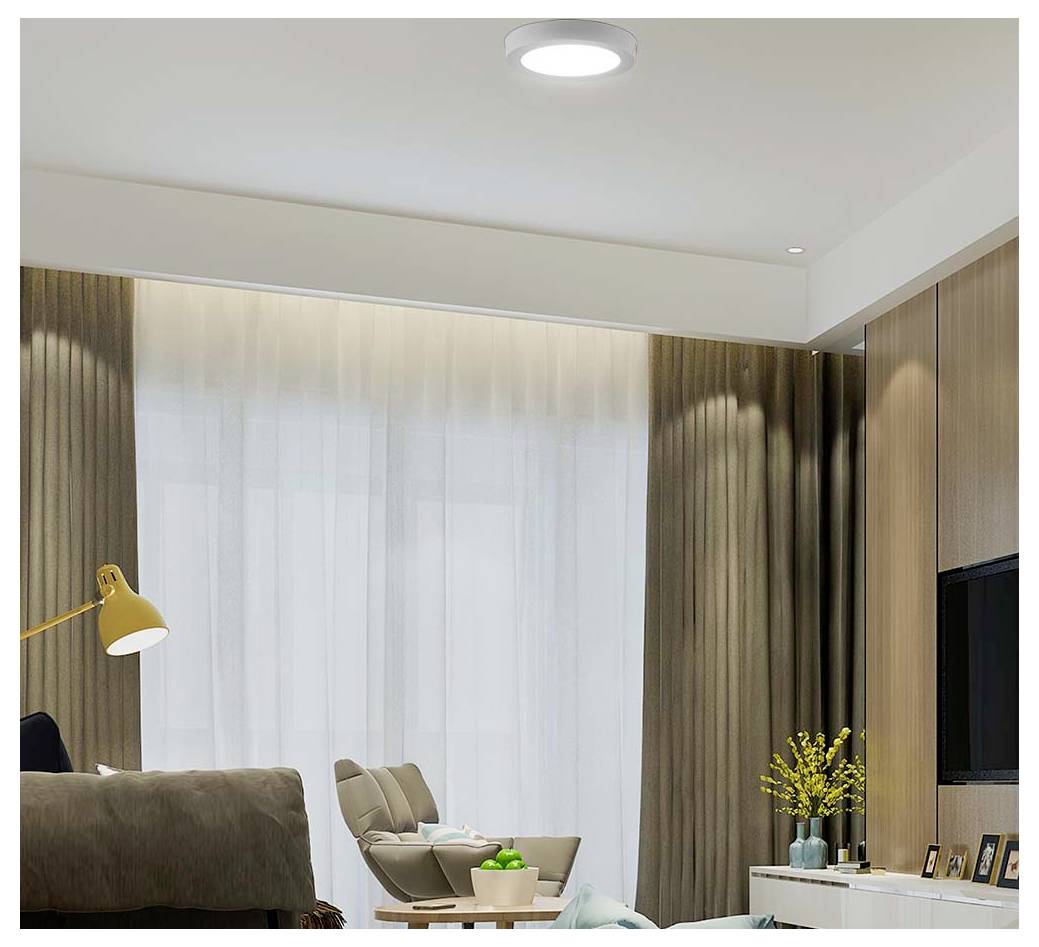

Modern living room with large sheer-curtained window, recliner chair, floor lamp, TV, and white console with flowers and decor.

1/5

Product data sheet

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VT-60018CCT 18W BACKLIT SURFACE MOUNTED PANEL CREE CHIP CCT:3IN1 RD 6YRS WTY

Power= 18 W
Total luminous flux= 1980 lm
Colour temperature= 3000 K
Warm white to cool white

Technical specifications

Life: 30000 hours
On/off switching cycles >15000
LED chip type SMD-CREE chip
Power saving 85 Energy
Series CREE
Operating temperature: -20°C to + +45°C.
Lumens per watt: 110
Colour temperature 3IN1
cri: >80

Product type: LED surface-mount light

Type: Circular

Operating voltage: 240 V AC

Bulb type: LED (monochrome)

Rating per bulb: 18 W

: 18 W

Energy consumption: 18 kWh/1000h

: 3000 K

Colour: Warm white to cool white

: 1980 lm

Total luminous flux: 1980 lm

Radiation angle: 120°

Protection class: IP20

: IP20

Factory colour: White

Material: Plastic

Weight: 0.29 kg

Width: 215.6 mm

Height: 30.8 mm

(Ø): 215.6 mm

: E (A - G)

Type: Assembly

: No

Colour rendering index: 80

Depth: 215.6 mm

Colour temperature (min.): 3000 K

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3781483 V-TAC VT-60018CCT-RD 78766 LED surface-mount light EEC: E (A - G) 18 W Warm white to cool white White

User & Safety Instructions

User & Safety Instructions 3781483 V-TAC VT-60018CCT-RD 78766 LED surface-mount light EEC: E (A - G) 18 W Warm white to cool white White

Description

Strong and stable plastic body, backlit mini panels
High-quality electrical driver ensures a reliable lifespan
Use the CCT switch to select your preferred color temperature at any time
Developed with highly efficient LED SMD CREE chips...
No lead or mercury-content and thus environment-friendly
Suitable for offices, conference rooms, exhibition rooms, lobbies, cabins, Kitchens, etc.
