Name: VOLTCRAFT MSS-150 rot Test tip VC-18938470 4 mm jack connector CAT II 1000 V Red 1 pc(s)
Brand: VOLTCRAFT
SKU: 3787694
Availability: BackOrder

Red multimeter probe with needle tip next to a small glass fuse on a white background.

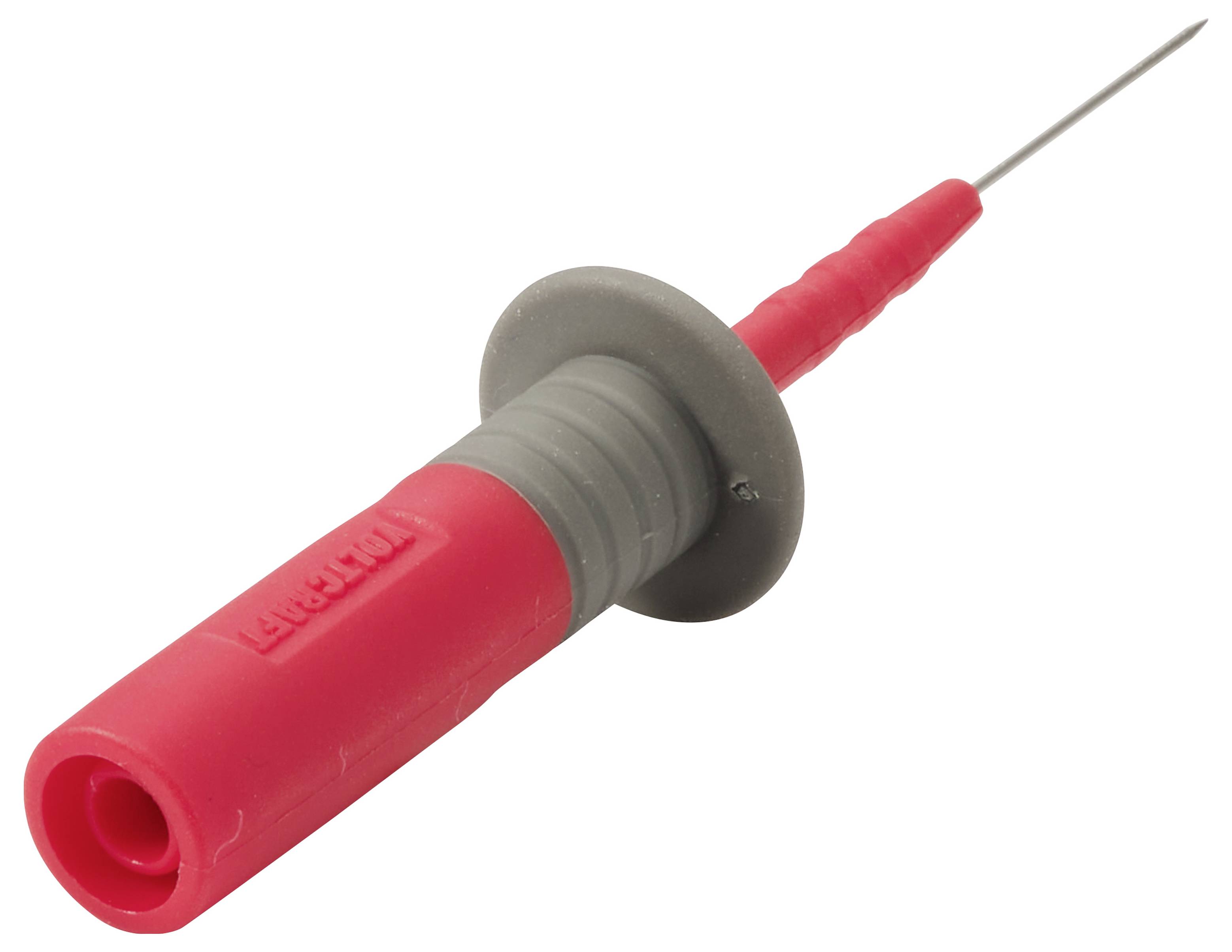

Red insulated test probe with a metal tip and gray grip, used for electrical testing.

Insulated red screwdriver with a long thin metal shaft, shown next to a 2.5 mm size label for scale.

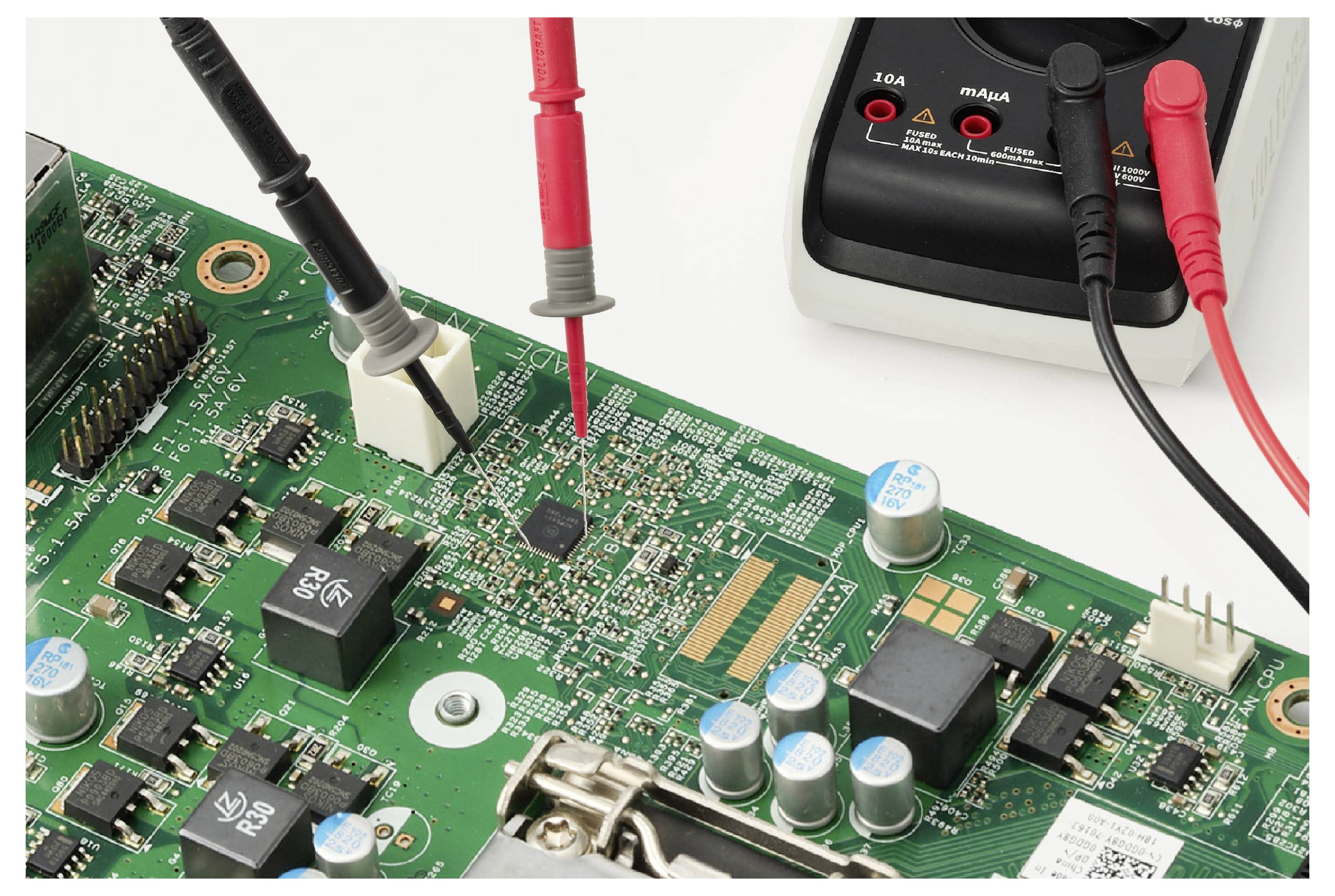

Red and black multimeter probes test a circuit board on a workbench, with the meter connected at the top right.

Red plastic sewing pin with a stainless steel tip, labeled '0.7 mm' and 'Stainless steel pin'.

1/5

Datasheet (PDF)

Dispatches on Thu 10 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT MSS-150 rot Test Probe, 0.7 mm, CAT II, 1000 V, Red

Ø 0.7 mm small stainless steel pin (10 mm long)
CAT II 1000 V
Nominal current 3 A
Socket Ø 4 mm
Red

Technical specifications

Product type: Test tip

Connection: 4 mm jack connector

Nominal voltage: 1000 V

Factory colour: Red

Reading category: CAT II 1000 V

Jack diameter: 4 mm

Length: 75 mm

Tip diameter: 0.7 mm

Tip length: 10 mm

Nominal current: 3 A

Nominal current - rounded value: 3 A

(Ø): 8.5 mm

Plug features: Insulated
Straight

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3787694 VOLTCRAFT MSS-150 rot Test tip VC-18938470 4 mm jack connector CAT II 1000 V Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3787694 VOLTCRAFT MSS-150 rot Test tip VC-18938470 4 mm jack connector CAT II 1000 V Red 1 pc(s)

Warranty Terms

Warranty Terms 3787694 VOLTCRAFT MSS-150 rot Test tip VC-18938470 4 mm jack connector CAT II 1000 V Red 1 pc(s)

Description

The red VOLTCRAFT MSS-150 test tip was designed for test tasks in commercial electrical engineering. The model offers business customers a targeted solution for setting up measuring circuits at the workplace.

Fine measuring needle
The built-in stainless steel pin is 10 mm long and has a diameter of only 0.7 mm. This slim design simplifies the precise contact of components in closely equipped circuits.

Electrical specifications
The straight and insulated test prod is designed for a nominal voltage of 1000 V according to CAT II as well as a rated current of 3 A. This ensures a standard compliant application in everyday working life.

Universal connection
Thanks to the 4 mm socket on the back, the component can be connected seamlessly and easily with standardized test leads.

This text is machine translated.
