Name: VOLTCRAFT MSS-160 rot Test probe VC-18938480 4 mm jack connector CAT II 1000 V Red 1 pc(s)
Brand: VOLTCRAFT
SKU: 3787696
Availability: BackOrder

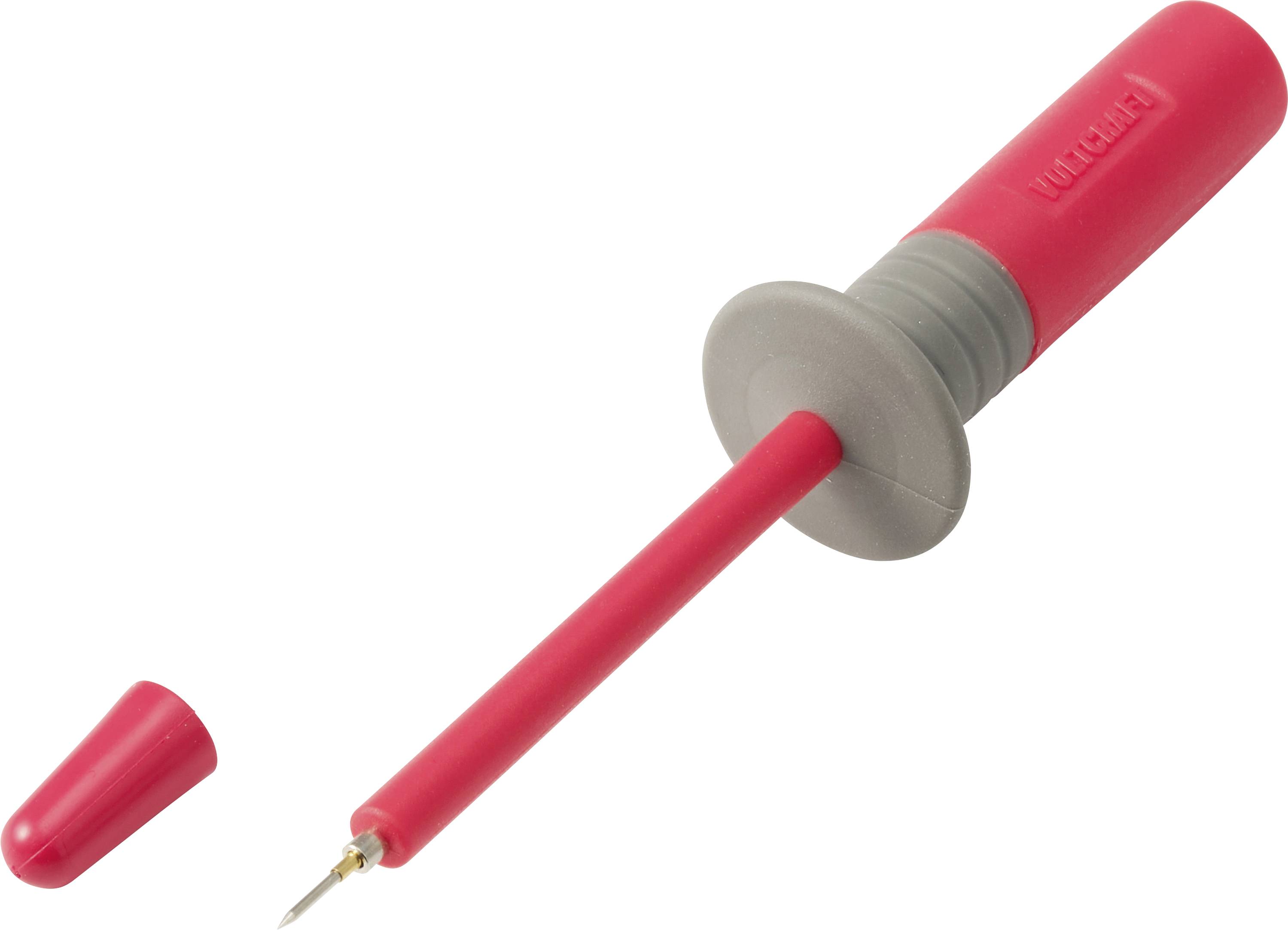

Red electric test probe with gray guard and red cap removed, exposing the metal tip on a white background.

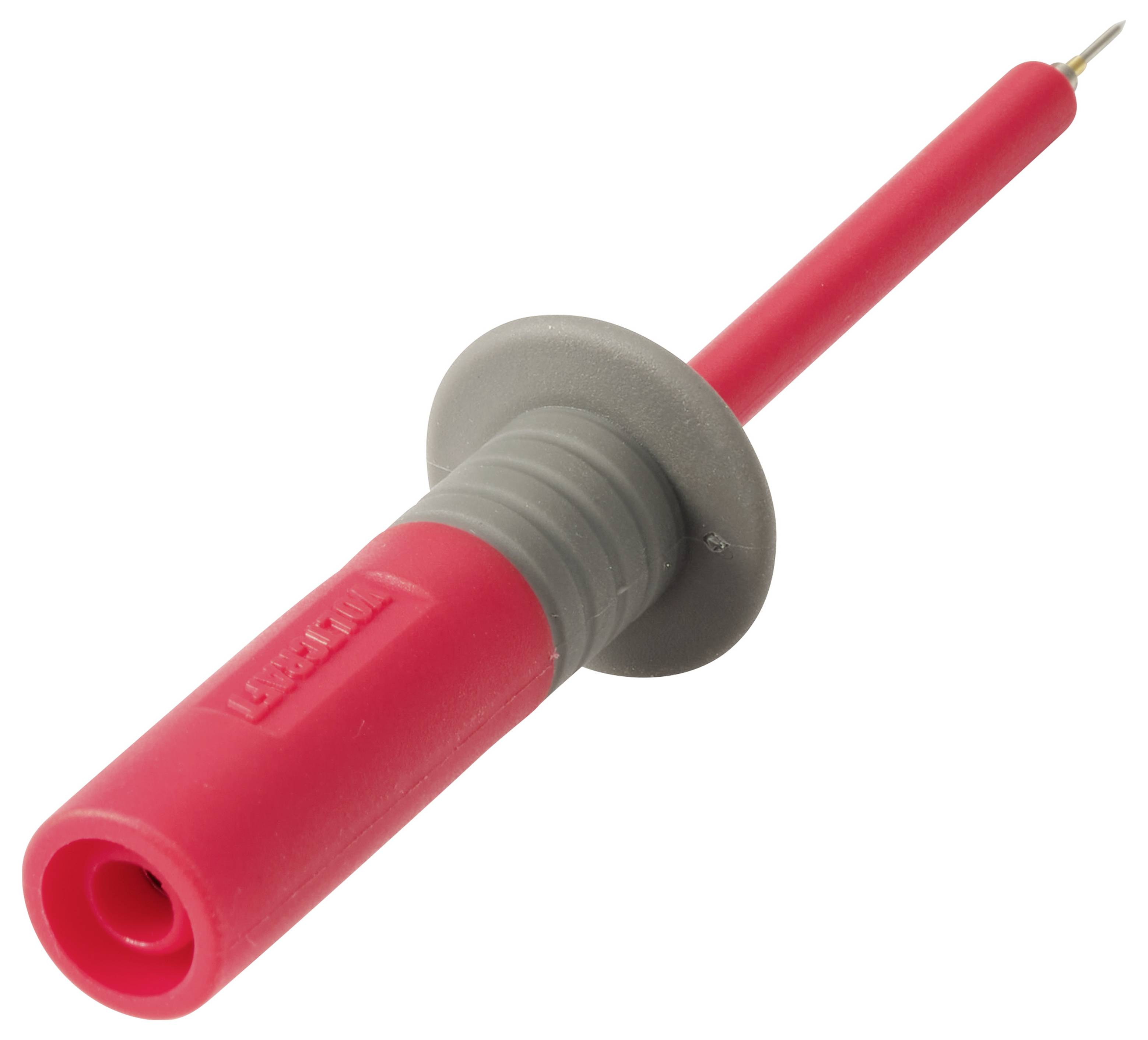

Red insulated multimeter test probe with a pointed metal tip and gray collar on a white background.

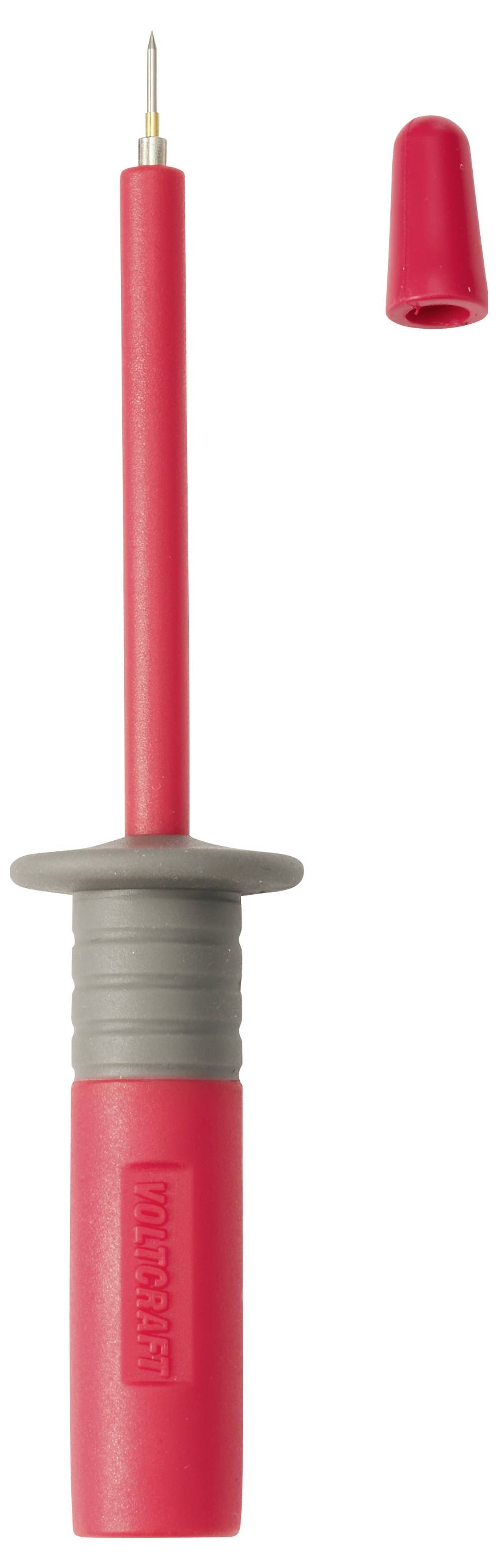

Red insulated test probe with a pointed metal tip and gray grip, shown beside a matching red protective cap.

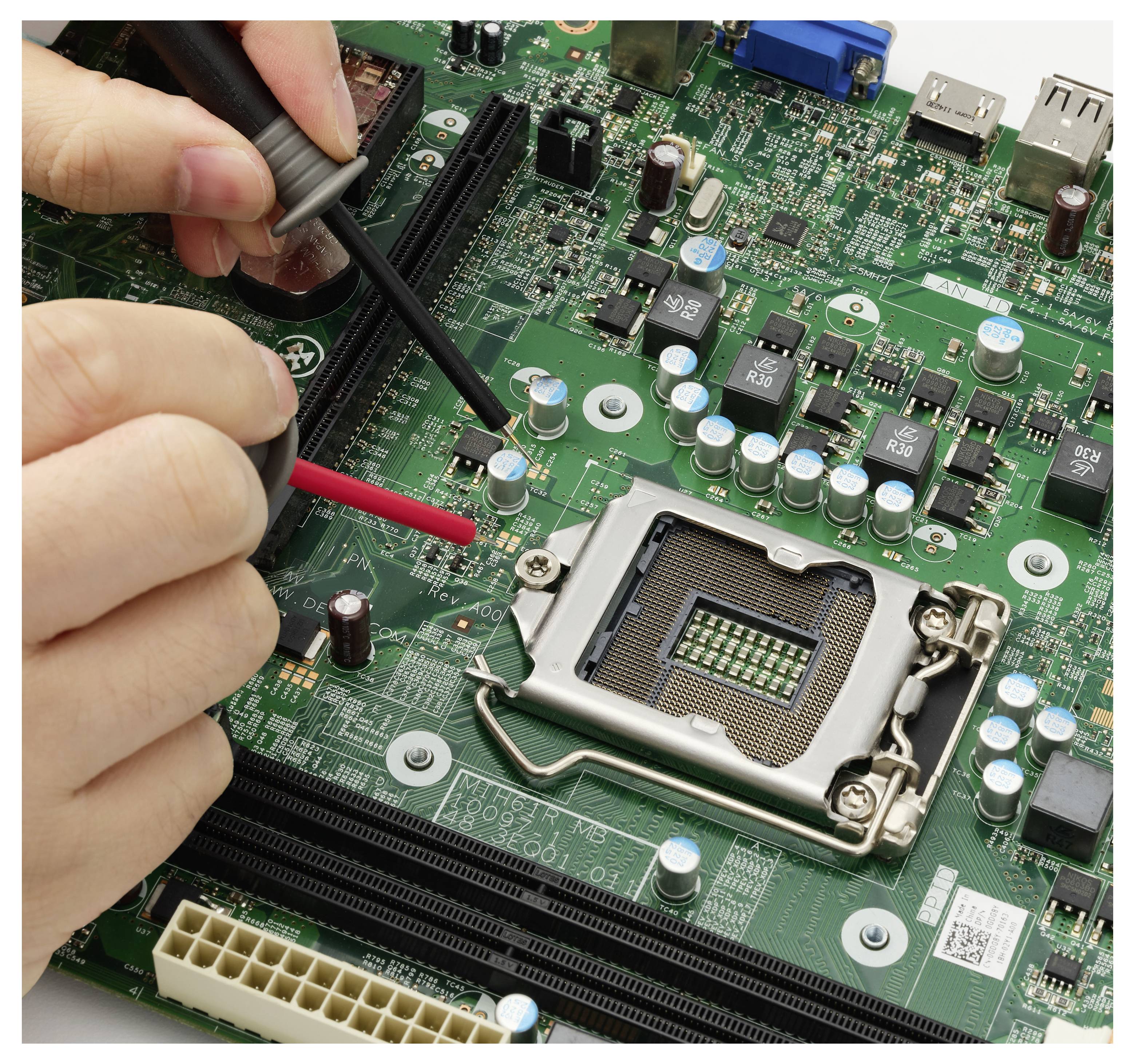

Hands using test probes on a computer motherboard near the CPU socket, checking electronic components on the circuit board.

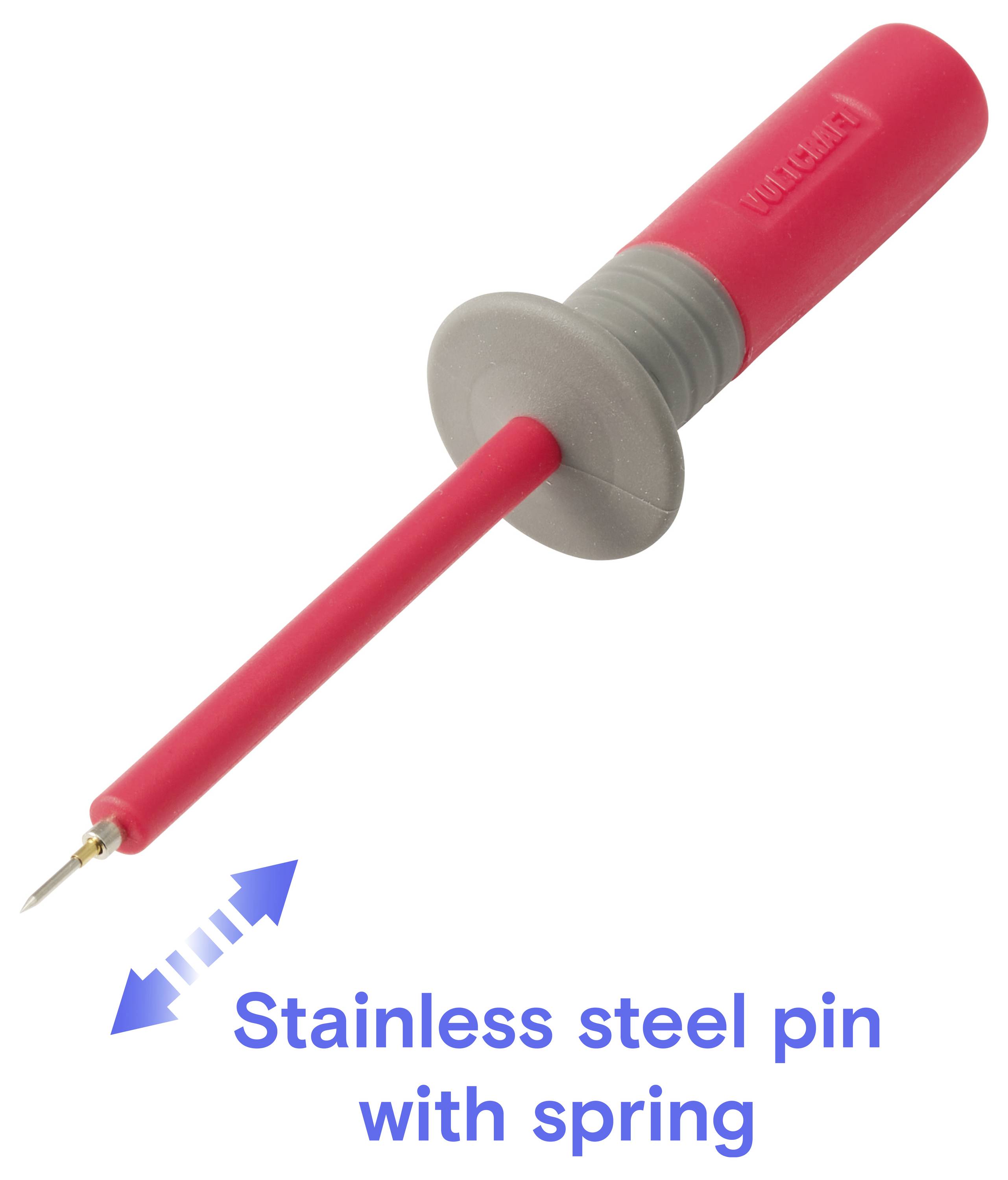

Red test probe with a stainless steel spring-loaded pin, labeled 'Stainless steel pin with spring'.

1/5

Datasheet (PDF)

Dispatches on Thu 10 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT MSS-160 rot spring-loaded test probe, 0.75, CAT II, 1000 V, 5 A, red

Test probe with Ø 0.75 mm pin with spring
CAT II 1000 V
Nominal current 5 A
Socket Ø 4 mm
Red

Technical specifications

Product type: Test probe

Connection: 4 mm jack connector

Nominal voltage: 1000 V

Factory colour: Red

Reading category: CAT II 1000 V

Jack diameter: 4 mm

Length: 91 mm

Tip diameter: 0.75 mm

Nominal current: 5 A

Nominal current - rounded value: 5 A

(Ø): 8.5 mm

Plug features: Insulated
Straight

Plastic free packaging: Plastic-free packaging

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3787696 VOLTCRAFT MSS-160 rot Test probe VC-18938480 4 mm jack connector CAT II 1000 V Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3787696 VOLTCRAFT MSS-160 rot Test probe VC-18938480 4 mm jack connector CAT II 1000 V Red 1 pc(s)

Warranty Terms

Warranty Terms 3787696 VOLTCRAFT MSS-160 rot Test probe VC-18938480 4 mm jack connector CAT II 1000 V Red 1 pc(s)

Description

The red VOLTCRAFT MSS-160 spring probe tip serves for reliable contact in professional test environments. It supports B2B users in performing structured electrotechnical measurements.

Spring-loaded pin
The device has a measuring tip with spring and a pin diameter of 0.75 mm. This mechanism provides for a constant contact pressure during measurements and protects the contact points to be tested against mechanical overload.

Electrical specifications
The straight and insulated spring probe tips comply with the measurement category CAT II for nominal voltages up to 1000 V and support a nominal current of 5 A.

Universal connection
The 91 mm long component can be easily combined with common measurement cables in the laboratory routine via the integrated 4-mm socket.
