WAGO 2002-1974 N terminal 5.20 mm Pull spring Configuration: N Blue 50 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Highlights & Details
2-conductor-disconnect and measurement terminal
- 2002 1974
- Industrial packaging, pack of 50
- This text is machine translated.
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
+ test option
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
22
- AWG max.
12
- Clamp width
5.20 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Nominal voltage
400 V
- Stripping length (max.)
10 mm
- Manufacturer part #
2002-1974
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
2002-1974
- Dim
(L x W x H) 5.20 x 5.20 x 32.90 mm
- Width
5.20 mm
- Height
32.90 mm
- Length
5.20 mm
- Contamination level
3
- Weight
8.321 g
- Connector colour
Blue
Documents & Downloads
Datasheet
Datasheet 655618 WAGO 2002-1974 N terminal 5.20 mm Pull spring Configuration: N Blue 50 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 655618 WAGO 2002-1974 N terminal 5.20 mm Pull spring Configuration: N Blue 50 pc(s) Piece
What kind of Serial Terminals are you looking for?

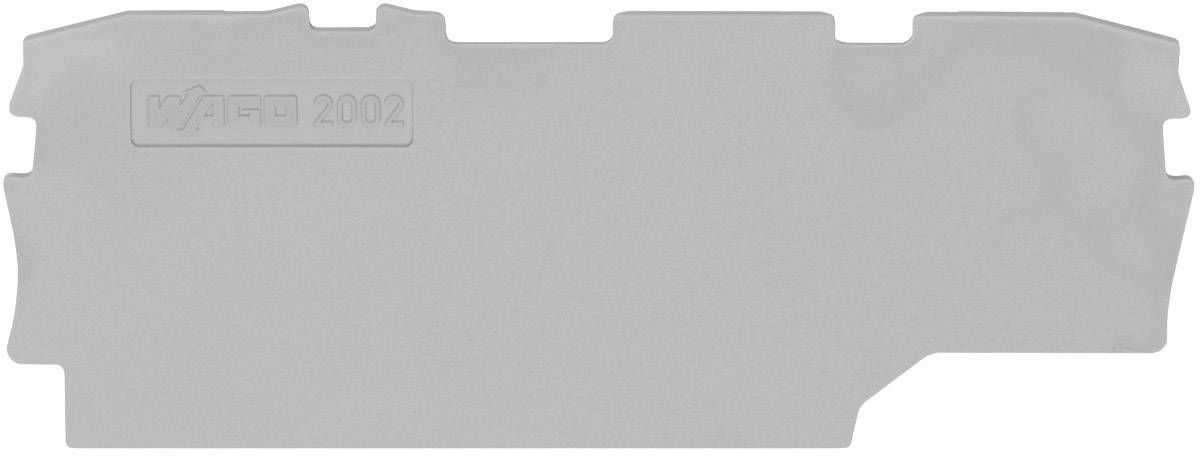

Accessories
