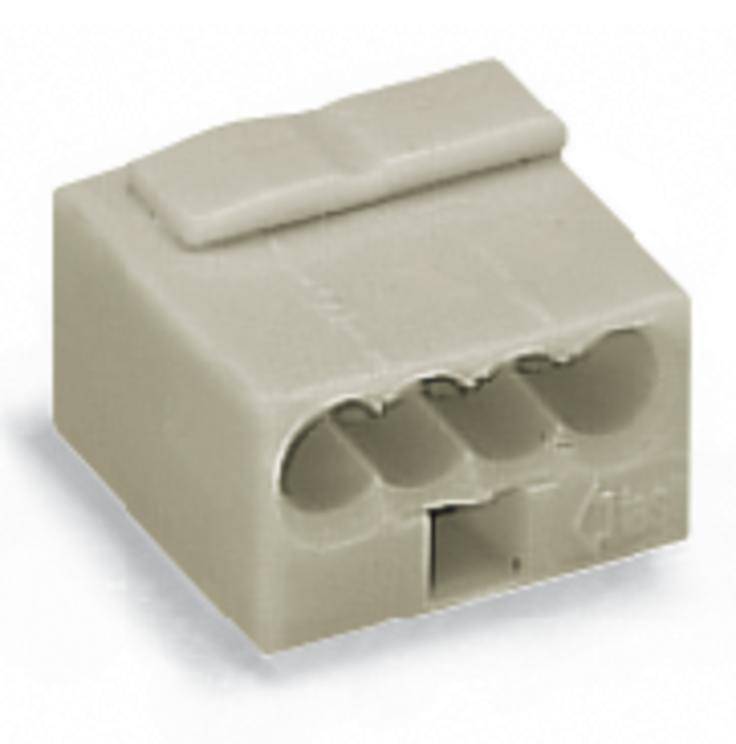

WAGO 243-314 Connector clip flexible: - fixed: 0.28-0.5 mm² Number of pins: 4 400 pc(s) Light grey
Product type
Connector clip
Cross section (inflexible) (min.)
0.28 mm²
Cross section (inflexible) (max.)
0.5 mm²
Number of pins
4
Series
243
EAN:
Part number:
Item no:
Total (€ 0.45 / piece)
€ 179.99
incl. VAT
14-day return policy included
Highlights & Details
MICRO PUSH WIRE® connectors
- 243-314
- Industrial packaging with 400 pieces
Technical specifications
- MICRO JUNCT & DIST CONN-4 LIGHT GREY
- Product type
Connector clip
- Cross section (inflexible) (min.)
0.28 mm²
- Cross section (inflexible) (max.)
0.5 mm²
- Number of pins
4
- Factory colour
Light grey
- Series
243
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Content
400 pc(s)
- Manufacturer part #
243-314
24 - 22
- Stripping length
5 - 6 mm
- Connection
Quick-connect
- Industrial packaging
Yes
- Insulation material
PA 6.6
- Contact material
Copper alloy
- Nominal voltage
150 V

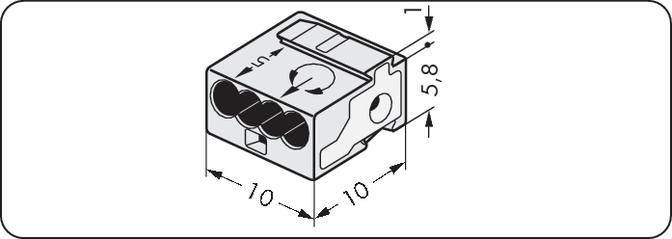

- Width
10 mm
- Connector clip features
Test window
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 729767 WAGO 243-314 Connector clip flexible: - fixed: 0.28-0.5 mm² Number of pins: 4 400 pc(s) Light grey
Description
For EIB applications, 4-conductor terminal light gray.
