WAGO 243-144 Screw terminal flexible: - fixed: 0.13-0.2 mm² Number of pins: 4 1000 pc(s) Transparent
EAN:
Part number:
Item no:
Product type
Screw terminal
Cross section (inflexible) (min.)
0.13 mm²
Cross section (inflexible) (max.)
0.2 mm²
Number of pins
4
Series
243
Datasheet (PDF)
Number (Package size 1000 pc(s))
Total (€ 0.37 / piece)
€ 365.55
plus VAT.
14-day return policy included
Highlights & Details
MICRO PUSH WIRE® connector for junction boxes
- 243-144
- Industrial packaging with 1000 pieces
Technical specifications
- MICRO PUSHWIRE CONNECTOR TRANSPAREN
- Product type
Screw terminal
- Cross section (inflexible) (min.)
0.13 mm²
- Cross section (inflexible) (max.)
0.2 mm²
- Number of pins
4
- Factory colour
Transparent
- Series
243
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Content
1000 pc(s)
- Manufacturer part #
243-144
26 - 24
- Stripping length
5 - 6 mm
- Connection
Quick-connect
- Industrial packaging
Yes
- Insulation material
PA 6.6
- Contact material
Copper alloy
- Nominal voltage
100 V

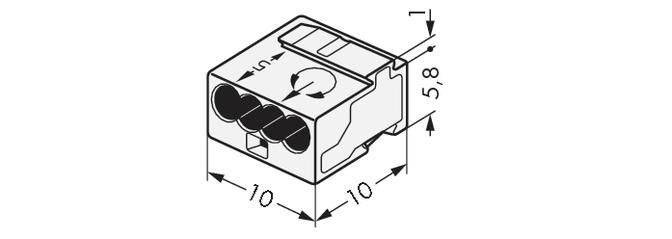

- Width
10 mm
- Connector clip features
Test window
Documents & Downloads
Datasheet
Datasheet 729763 WAGO 243-144 Screw terminal flexible: - fixed: 0.13-0.2 mm² Number of pins: 4 1000 pc(s) Transparent
User & Safety Instructions
User & Safety Instructions 729763 WAGO 243-144 Screw terminal flexible: - fixed: 0.13-0.2 mm² Number of pins: 4 1000 pc(s) Transparent
Description
4-conductor terminal, transparent.
