WAGO 280-567 Proximity switch terminal 6 mm Pull spring Configuration: L Grey 20 pc(s) Package

A grey, diagonally positioned electrical terminal block with blue and brown connection points, used for wiring in control cabinets.

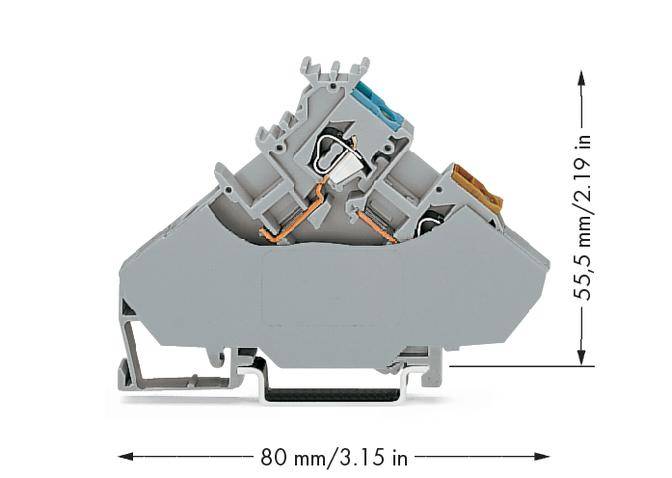

Grey terminal module shown from the side, with dimensions of 80 mm (3.15 in) width and 55.5 mm (2.19 in) height.

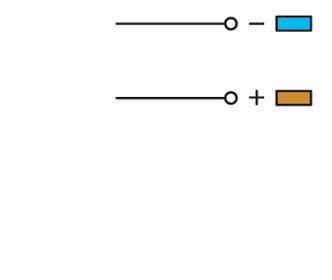

Two horizontal lines with circles at their ends. The upper line has a minus sign and a blue square, the lower line has a plus sign and an orange square.
1/3
Packaging type
Package
Product type
Proximity switch terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 24 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 20 pc(s))
Total (€ 4.00 / piece)
€ 79.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Sensor supply terminal block

  • 280-567
  • Industrial packaging with 20 pieces

Technical specifications

  • SENSOR SUPPLY TERM.BLOCK
Packaging type

Package

Product type

Proximity switch terminal

Connection

Pull spring

Configuration

L

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

2.50 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

2.50 mm²

AWG (min.)

28

AWG max.

14

Clamp width

6 mm

No. of rows

2

Pins per row

1

Number of pins

2

Factory colour

Grey

Nominal current

20 A

Nominal current - rounded value

20 A

Nominal voltage

400 V

Min. stripping length

8 mm

Stripping length (max.)

9 mm

Manufacturer part #

280-567

Content

20 pc(s)

Industrial packaging

Yes

Type

280-567

Dim

(W x H) 6 mm x 55.50 mm

Width

6 mm

Height

55.50 mm

Contamination level

3

Connector colour

Grey

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 535872 WAGO 280-567 Proximity switch terminal 6 mm Pull spring Configuration: L Grey 20 pc(s) Package

User & Safety Instructions

User & Safety Instructions 535872 WAGO 280-567 Proximity switch terminal 6 mm Pull spring Configuration: L Grey 20 pc(s) Package

Description

Feed on the control cabinet side, with end plate gray.
