1/3
WAGO 753-406 PLC digital input module 753-406 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Technical specifications
- 2DI 120V AC
- Product type
PLC digital input module
- Type
753-406
- No. of digital inputs (max.)
2
- Operating voltage
120 V AC
- Height
64 mm
- Length
100 mm
- Width
12 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
IP20
- Dim
(L x W x H) 100 x 12 x 64 mm
- Manufacturer part #
753-406
- Weight
45 g
- Factory colour
Light grey
- Mounting type
DIN rail
- Inputs / outputs
Inputs: 2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 192135 WAGO 753-406 PLC digital input module 753-406 1 pc(s)
User & Safety Instructions
User & Safety Instructions 192135 WAGO 753-406 PLC digital input module 753-406 1 pc(s)
Description

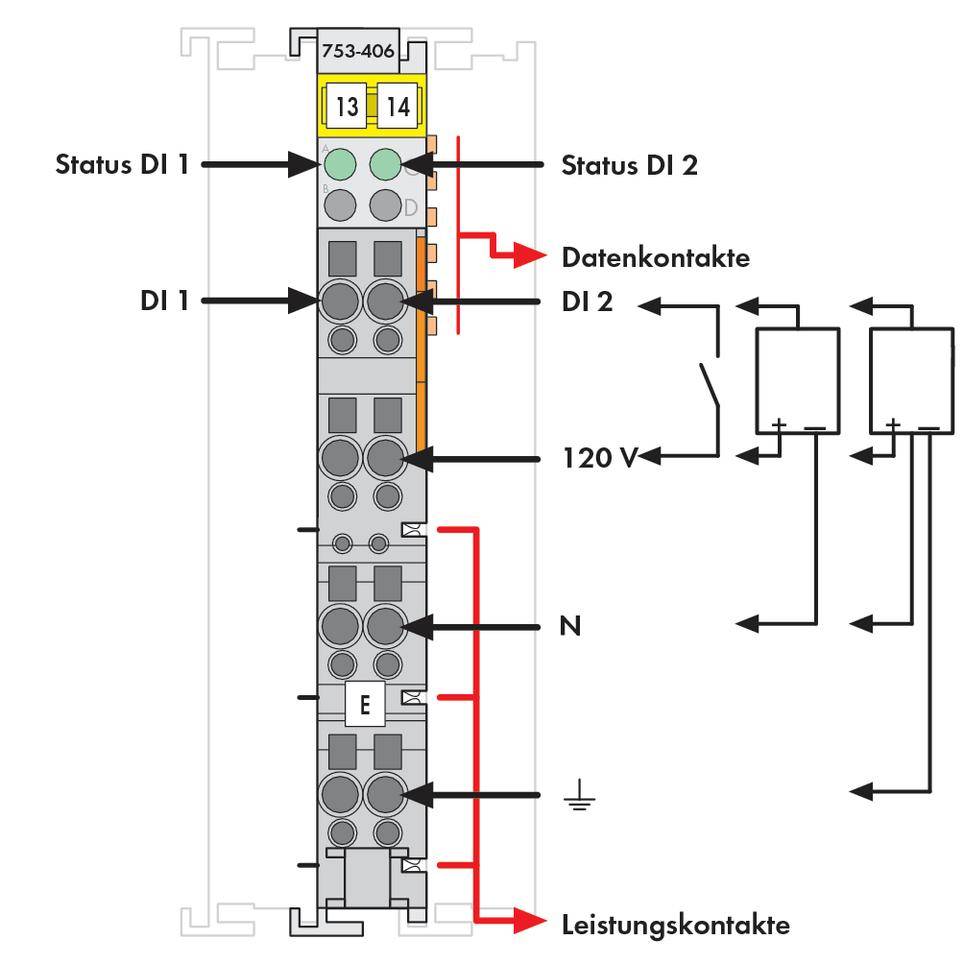

AC 120 V, positive switch 2 to 4-conductor connection, light gray.
This text is machine translated.
This text is machine translated.
