WAGO 753-428 PLC digital input module 753-428 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Technical specifications
- Color: light gray
- Cross-section 0.08 - 2.5 mm²
- AWG 28 - 14
- Stripping length: 9 - 10 mm
- Power consumption: 5 mA
- Installation type: TS 35
- Protection class: IP20
- Operating temperature: 0 to + 55 °C
- Product type
PLC digital input module
- Type
753-428
- No. of digital inputs (max.)
4
- Operating voltage
42 V DC
42 V AC
- Height
64 mm
- Length
100 mm
- Width
12 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
IP20
- Dim
(L x W x H) 100 x 12 x 64 mm
- Manufacturer part #
753-428
- Weight
50 g
- Factory colour
Light grey
- Mounting type
DIN rail
- Inputs / outputs
Inputs: 4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 192152 WAGO 753-428 PLC digital input module 753-428 1 pc(s)
User & Safety Instructions
User & Safety Instructions 192152 WAGO 753-428 PLC digital input module 753-428 1 pc(s)
Description

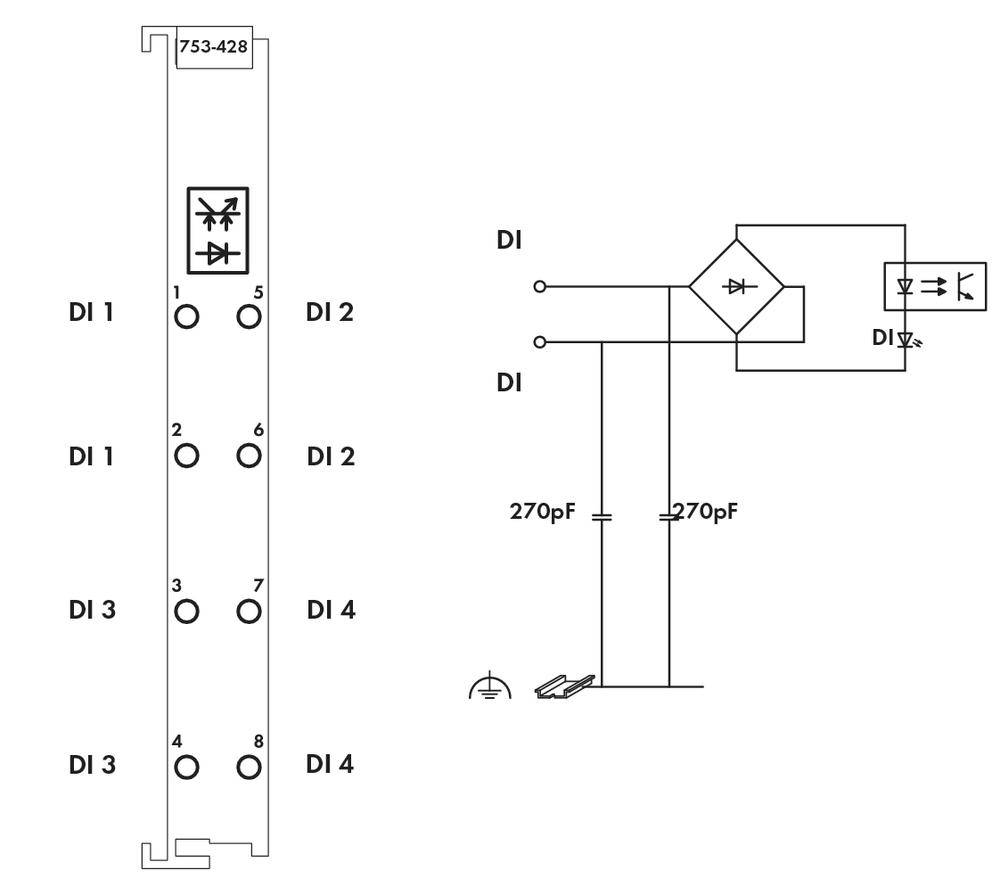

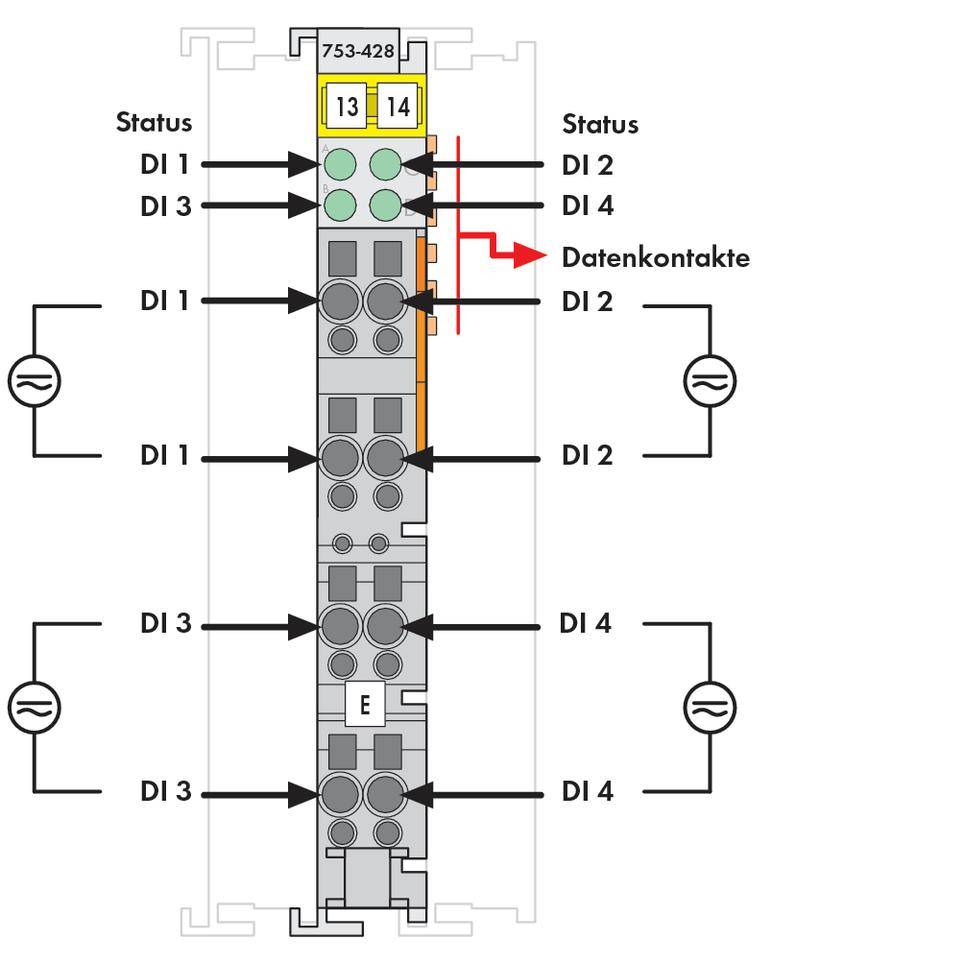

AC/DC 42 V, 2-conductor connection, light gray.
