WAGO 756-9503/040-000 Sensor/actuator splitter/adapter M12 Adapter 1 pc(s)

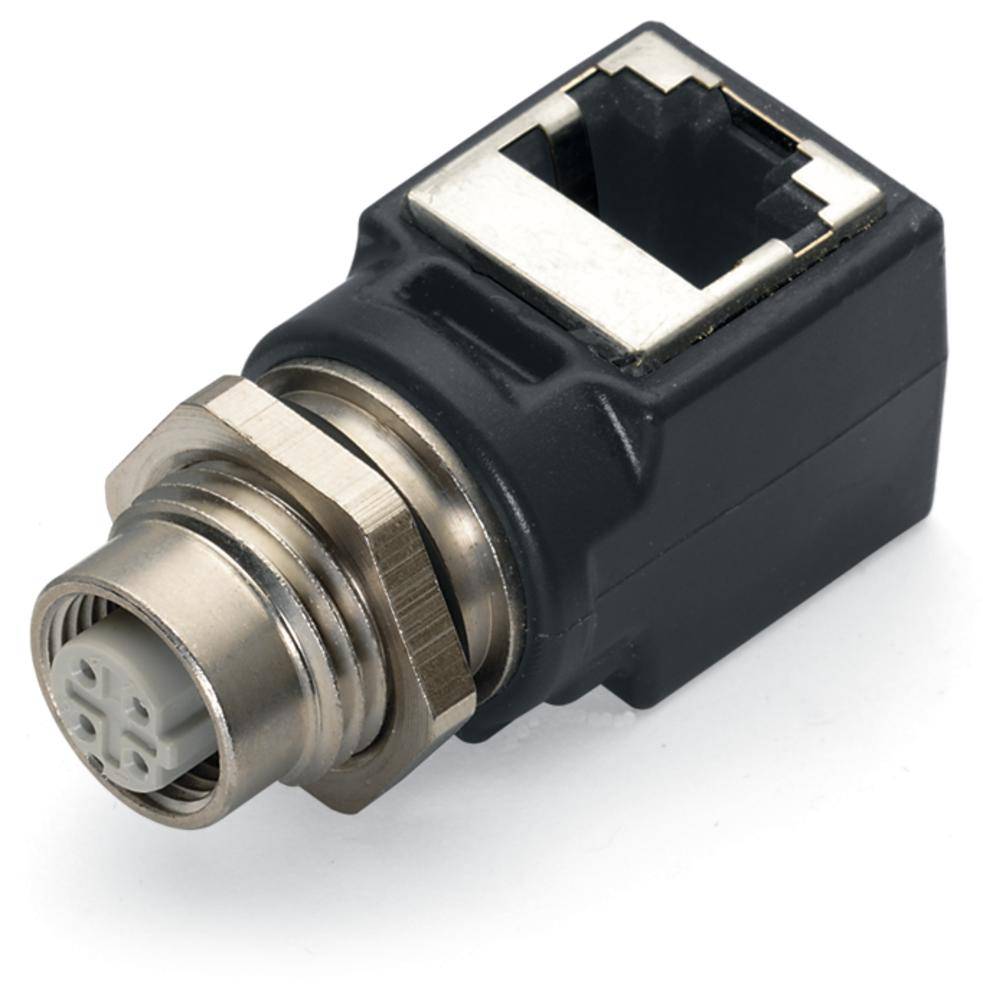

Black adapter with an RJ45 connector and a round, metallic plug connector on the other side for data transmission.
'Wiring diagram of an M12 to RJ-45 connection. M12 pins 1 to 4 are assigned to RJ-45 pins. 100-ohm resistors between pins 3-6 and 4-5.'
Technical drawing of a connector with dimensions: 46.2 mm length, 28.9 mm width, and 15 mm height. Connections: M12x1, M16x1.5.
Black and white drawing of a connector with nut and seal. Illustration shows various components in detail.
Pie chart of space allocation: 1 (bottom right) is a small room, 2 (bottom left) is larger, 3 (top left) and 4 (top right, next to small rectangle) are small.
1/5
Product type
Sensor/actuator splitter/adapter
Connector type
Adapter
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
RJ45
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 30 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 139.99 / piece)
€ 139.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • ETHERNET ADAPTER M12/RJ45 WINKL
Type

756-9503/040-000

Product type

Sensor/actuator splitter/adapter

Connector type

Adapter

Connector standard

Sensor connector

Connection side A

M12 socket, straight

Connection side B

RJ45

Thread type connection side

M12

Coding

D

Seal type

Screw-on

Manufacturer part #

756-9503/040-000

Industrial packaging

Yes

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 546648 WAGO 756-9503/040-000 Sensor/actuator splitter/adapter M12 Adapter 1 pc(s)

User & Safety Instructions

User & Safety Instructions 546648 WAGO 756-9503/040-000 Sensor/actuator splitter/adapter M12 Adapter 1 pc(s)

Description

D-coded/RJ-45 socket, angled.

This text is machine translated.
