WAGO 756-9504/040-000 Sensor/actuator splitter/adapter M12 Socket, straight 1 pc(s)

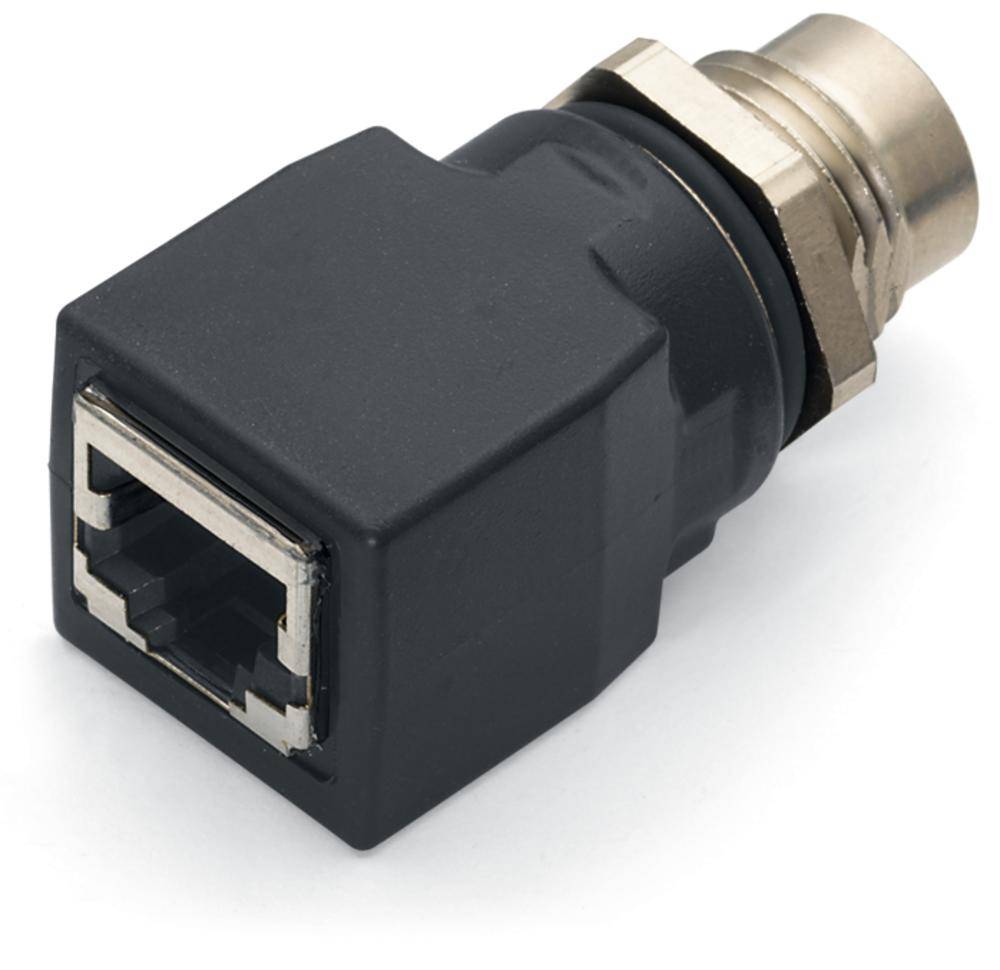

A black adapter with RJ45 and coaxial connectors, used for connecting network cables with coaxial cables.

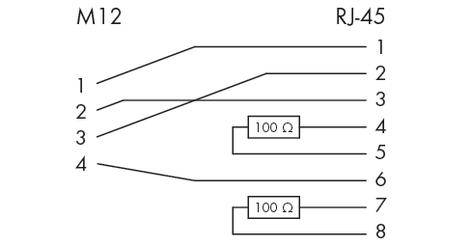

'Wiring diagram of an M12 to RJ-45 connection. M12 pins 1 to 4 are assigned to RJ-45 pins. 100-ohm resistors between pins 3-6 and 4-5.'

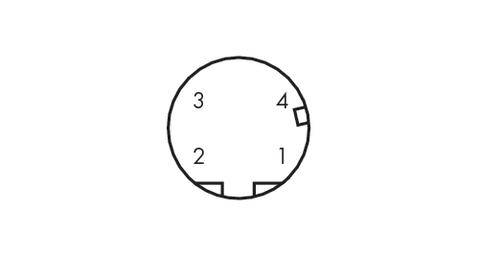

Pie chart of space allocation: 1 (bottom right) is a small room, 2 (bottom left) is larger, 3 (top left) and 4 (top right, next to small rectangle) are small.

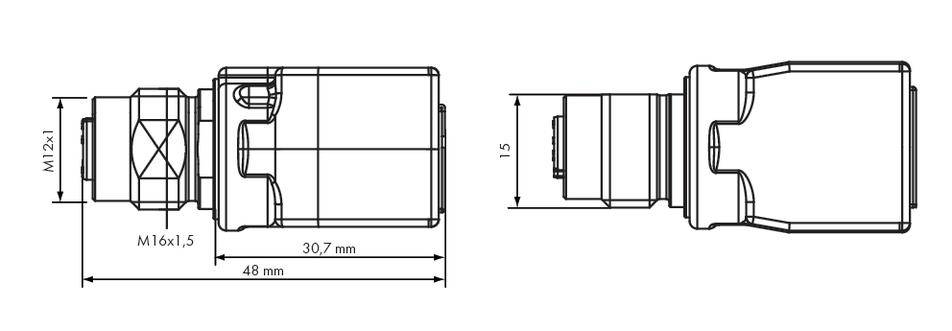

Technical drawing of a cylindrical component with length specifications: Total width 48 mm, height 15 mm, with threads M12x1 and M16x1.5.

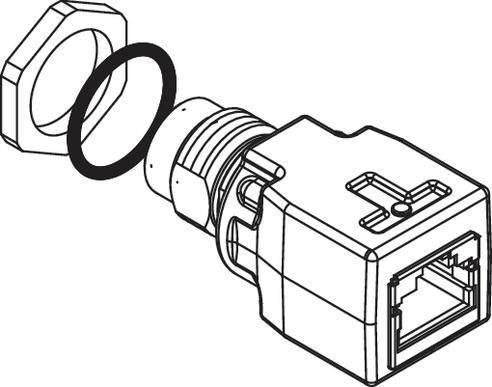

Illustration of an RJ45 plug housing with nut and seal, shown before assembly.
1/5
Product type
Sensor/actuator splitter/adapter
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
RJ45
Connection side B
RJ45
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 30 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 139.99 / piece)
€ 139.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • ETHERNET ADAPTER M12 SOCKET D-CODED
Type

756-9504/040-000

Product type

Sensor/actuator splitter/adapter

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

RJ45

Connection side B

RJ45

Thread type connection side

M12

Coding

D

Seal type

Screw-on

Manufacturer part #

756-9504/040-000

Industrial packaging

Yes

Content

1 pc(s)

TRUE

FALSE

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 546651 WAGO 756-9504/040-000 Sensor/actuator splitter/adapter M12 Socket, straight 1 pc(s)

User & Safety Instructions

User & Safety Instructions 546651 WAGO 756-9504/040-000 Sensor/actuator splitter/adapter M12 Socket, straight 1 pc(s)

Description

D-coded/RJ-45 socket, axial.
