WAGO Optocoupler relay 859-793 0.1 A Switching voltage (max.): 60 V DC 1 pc(s)

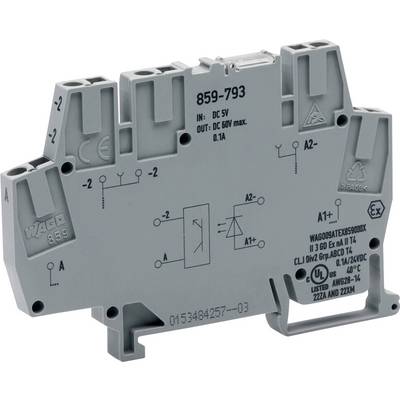

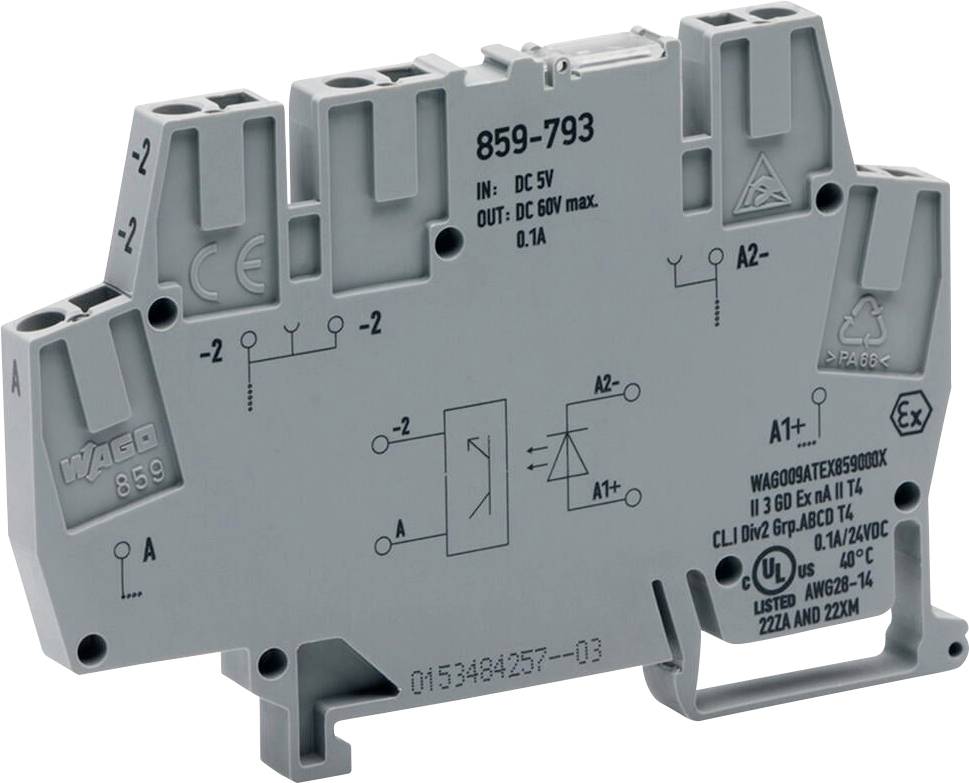

'WAGO 859-793' electronic component, labeled with connection diagrams and specifications. Gray, compact design for electrical circuits.

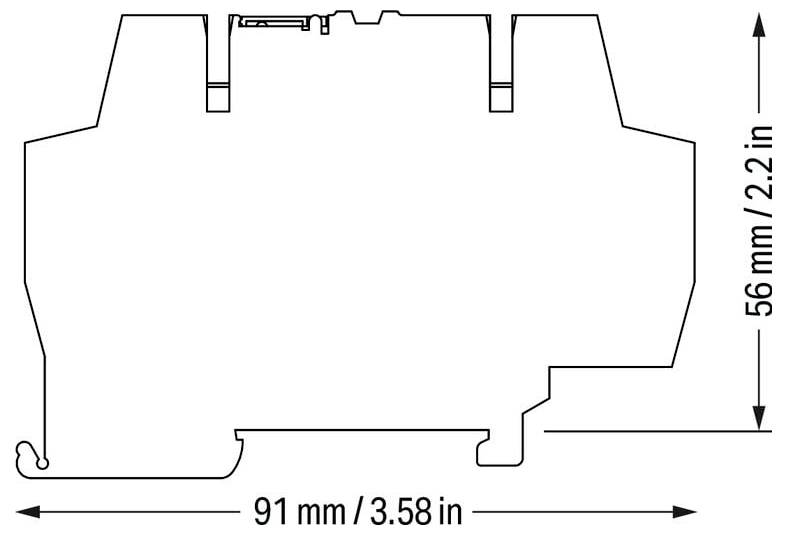

Diagram of an object with dimensions: width 91 mm (3.58 in) and height 56 mm (2.2 in).

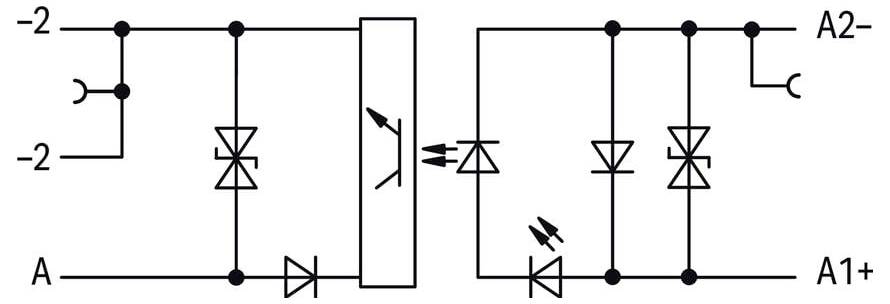

'Optocoupler circuit diagram with pin labels A, A1+, and A2-, featuring diodes, transistors, and LED indicators for signal isolation.'
'Graph showing continuous current (I in mA) vs ambient operating temperature (°C). Current decreases from 100 mA at 30°C to 50 mA at 60°C.'
Electronic component with a green circuit board and grey housing. Contains metal terminals and electronic components.
1/5
Packaging type
Piece
Product type
Optocoupler relay
Switching voltage (max.)
60 V DC
Current load (max.)
0.1 A
Output voltage (max.)
60 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 21.99 / piece)
€ 21.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Optocoupler relay

Type

859-793

Connection

Pull spring

Switching voltage (min.)

3 V DC

Switching voltage (max.)

60 V DC

Current load (max.)

0.1 A

Output voltage (min.)

3 V DC

Output voltage (max.)

60 V DC

Max. output current

0.1 A

Width

6 mm

Height

56 mm

Length

91 mm

Weight

18.4 g

Permanent current (max.)

0.1 A

Content

1 pc(s)

Nominal control voltage

5 V DC

Factory colour

Grey

Nominal voltage

5 V DC

Switching current (max.)

100 mA
