Name: WAGO Socket housing PCB 232 Total number of pins 12 Contact spacing: 5 mm 232-242/005-000 25 pc(s)
Brand: WAGO
SKU: 728647
Availability: BackOrder

Grey, plug-in printed circuit board connector with five terminals and metal pins for electrical connection, with side mounting holes.

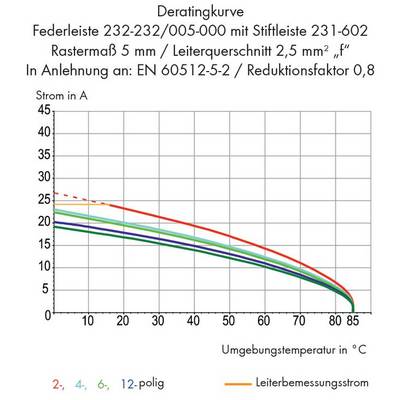

'Derating curve for spring strip 232-232/005-000, 231-602, 5mm pitch. Shows current reduction in A with increasing temperature in °C.'

Technical drawing of an electrical connector with dimensions: Width 9.8 mm, Height 5 mm, Length L, additional measurements 11.6 mm and 13.85 mm.

1/3

Product type

Socket housing PCB

Connector type

Socket, horizontal mount

No. of rows

Series

232

5 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 25 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 25 pc(s))

Set(s)

Total (€ 11.00 / piece)

€ 275.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Female connector

Content: 25 pc(s)
No. of rows: 1
Total number of pins: 12

Technical specifications

MOD F-CONN RA LONG PINS

Product type: Socket housing PCB

Connector type: Socket, horizontal mount

No. of rows: 1

Connector system: wire-to-board

Series: 232

CS: 5 mm

Pins per row: 12

Total number of pins: 12

Width: 61.50 mm

Content: 25 pc(s)

Dim: (L x W x H) 18.25 x 61.50 x 26.10 mm

Connection: Print

Manufacturer part #: 232-242/005-000

Factory colour: Grey

Industrial packaging: Yes

Contact material: Cathode copper, tin plated

Board contact surface: Tin plated

Connector contact surface: Tin plated

Nominal voltage: 320 V

Height: 26.10 mm

Length: 18.25 mm

Depth: 18.25 mm

Connector orientation: Parallel (to the PCB)

Type: 232-242/005-000

UKCA: not relevant
