Name: Weidmüller 1252210000 PTSI 4/LD 36V AC/DC Fuse connector flexible: 0.5-4 mm² fixed: 0.5-4 mm² Number of pins: 5 1 pc(s)
Brand: Weidmüller
SKU: 202018
Availability: InStock

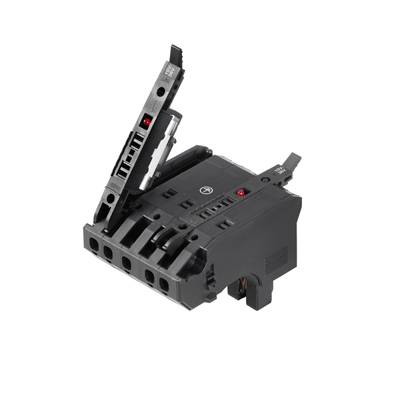

A black triple-pole circuit breaker with levers in different positions, showing mechanical components for electrical circuit control.

Packaging type

Piece

Product type

Fuse connector

Cross section (flexible) (min.)

0.5 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.5 mm²

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 67.99 / piece)

€ 67.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Connectors

Fuse connector
Number of pins: 5

Technical specifications

Flammability class according to UL 94: V-0
Conductor outlet direction: 90°
Mounting type: Plugged in
2 mm test tap
Clamping range, max. push in connection: 4 mm²
Clamping range, min. Push in port 0.5 mm²
Blade size, push-in connection: 3.0 x 0.5 mm
Conductor cross-section push-in connection, single-wire, max. 4 mm²
Conductor cross-section push-in connection, single-wire, min.: 0.5 mm²
Conductor cross-section, fine strand, push-in connection, max. 4 mm²
Conductor cross-section, fine strand, push-in connection, min. 0.5 mm²
Rated cross-section: 4 mm²
Dimensioning surge voltage: 6 kV
Failure indicator: Red LED

Packaging type: Piece

Product type: Fuse connector

Cross section (flexible) (min.): 0.5 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.5 mm²

Cross section (inflexible) (max.): 4 mm²

Number of pins: 5

Factory colour: Black

Nominal current: 12 A

Nominal current - rounded value: 12 A

Content: 1 pc(s)

Manufacturer part #: 1252210000

Stripping length: 12 mm

Connection: Push-in connector

Nominal voltage: 36 V

RoHS-compliant: Yes

Temperature range: -50 °C - +120 °C

Connector clip features: Test window

UKCA: yes
