Name: Weidmüller 1531180000 Power strip Total number of pins 10 20 pc(s)
Brand: Weidmüller
SKU: 1765770
Availability: BackOrder

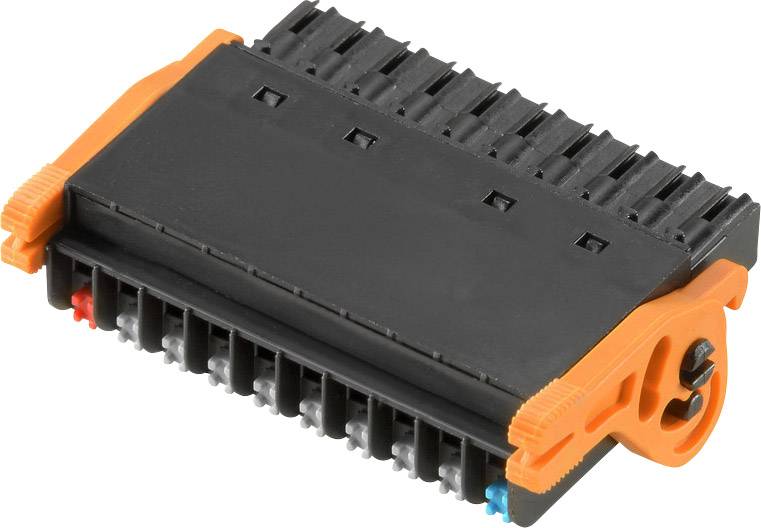

Black electrical connector with orange elements, used for connecting cables in electrical or electronic applications.

Image similar

Product type

Power strip

Total no. of pins

3.5 mm

Content

20 pc(s)

Total number of pins

Datasheet (PDF)

Dispatches on Thu 10 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 20 pc(s))

Set(s)

Total (€ 6.75 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Pcb connector, latch, 3.50 mm, number of poles: 10, tin-plated, black, Box

Total number of pins 10
Content 20 pc(s)

Our service for you

Technical specifications

Depth: 29.1 mm
Insulation material: PBT
Storage temperature: -25 °C to +55 °C.
Stripped length: 8 mm
Conductor connection technology: PUSH-IN, spring connection
Conductor outlet direction: 180°
Touch protection: IP20
Plug power/pole 6 N.
Pulling power/pole: 6 N.
Short-term current strength: 3 x 1s with 120 A.
Actuator color: Gray, blue, red
Actuator material: PBT
Mandrel: 2.4 mm x 1.5 mm, 1.9 mm
Contact base material: CU-leg

Product type: Power strip

Total no. of pins: 10

Total number of pins: 10

CS: 3.5 mm

Nominal current: 5 A

Nominal current - rounded value: 5 A

DIN standard: DIN 5264

Connection: Push-in connector
Spring-loaded terminal

Factory colour: Black

Case material: PA

Manufacturer part #: 1531180000

Content: 20 pc(s)

Contact material: Copper

Width: 42.3 mm

Height: 14.5 mm

Max. temperature: +75 °C

Min. temperature: -50 °C

Type: BL-I/O 3.50/10/180LR SN BK BX

: 24 AWG - 16 AWG

Dim: (W x H) 42.3 mm x 14.5 mm

Resistance: 5 mΩ

Insulation resistance: 100 MΩ

Clamping range diameter mm: 0.2 mm² - 1.5 mm²

Connector contact surface: Tin plated

Dimensions: 42.3 mm x 14.5 mm x 29.1 mm

Nominal voltage: 50 V

Number of pins: 10

Cross section: 1 mm²

RoHS-compliant: Yes

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Content

Total no. of pins

Weidmüller 1003510000 Power strip Total number of pins 2 No. of rows 1 132 pc(s)

Item no:1765775

Dispatches on Fri 27 Nov

Conrad Electronic

10 A

132 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Weidmüller 1039270000 Power strip Total number of pins 4 No. of rows 2 50 pc(s)

Item no:1765972

Dispatches on Wed 9 Dec

Conrad Electronic

11 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

Weidmüller 1039290000 Power strip Total number of pins 8 No. of rows 2 50 pc(s)

Item no:1765786

Dispatches on Thu, 28 Jan 2027

Conrad Electronic

11 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 169.99^*

Weidmüller 1043670000 Power strip Total number of pins 2 No. of rows 1 72 pc(s)

Item no:1765787

Dispatches on Wed 9 Dec

Conrad Electronic

20 A

72 pc(s)

7.62 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Weidmüller 1060780000 Power strip Total number of pins 10 No. of rows 1 50 pc(s)

Item no:1765593

Dispatches on Fri 27 Nov

Conrad Electronic

10 A

50 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 154.99^*

Weidmüller 1060820000 Power strip Total number of pins 16 No. of rows 1 50 pc(s)

Item no:1766196

Dispatches on Fri 27 Nov

Conrad Electronic

10 A

50 pc(s)

3.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

Weidmüller 1231360000 Power strip Total number of pins 6 No. of rows 1 50 pc(s)

Item no:1766209

Dispatches on Wed 9 Dec

Conrad Electronic

11 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 255.00^*

Weidmüller 1231430000 Power strip Total number of pins 12 No. of rows 1 50 pc(s)

Item no:1765989

Dispatches on Wed 9 Dec

Conrad Electronic

11 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 489.00^*

Weidmüller 1231470000 Power strip Total number of pins 16 No. of rows 1 50 pc(s)

Item no:1765990

Dispatches on Wed 9 Dec

Conrad Electronic

11 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

Weidmüller 1231760000 Power strip Total number of pins 12 No. of rows 1 50 pc(s)

Item no:1766210

Dispatches on Wed 9 Dec

Conrad Electronic

11 A

50 pc(s)

3.81 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 475.00^*

Documents & Downloads

Datasheet

Datasheet 1765770 Weidmüller 1531180000 Power strip Total number of pins 10 20 pc(s)

User & Safety Instructions

User & Safety Instructions 1765770 Weidmüller 1531180000 Power strip Total number of pins 10 20 pc(s)

Description

Pluggable PCB connection technology for a safe and with innovatively ever intuitive handling.

This text is machine translated.

Description

Pluggable PCB connection technology for a safe and with innovatively ever intuitive handling.

This text is machine translated.
