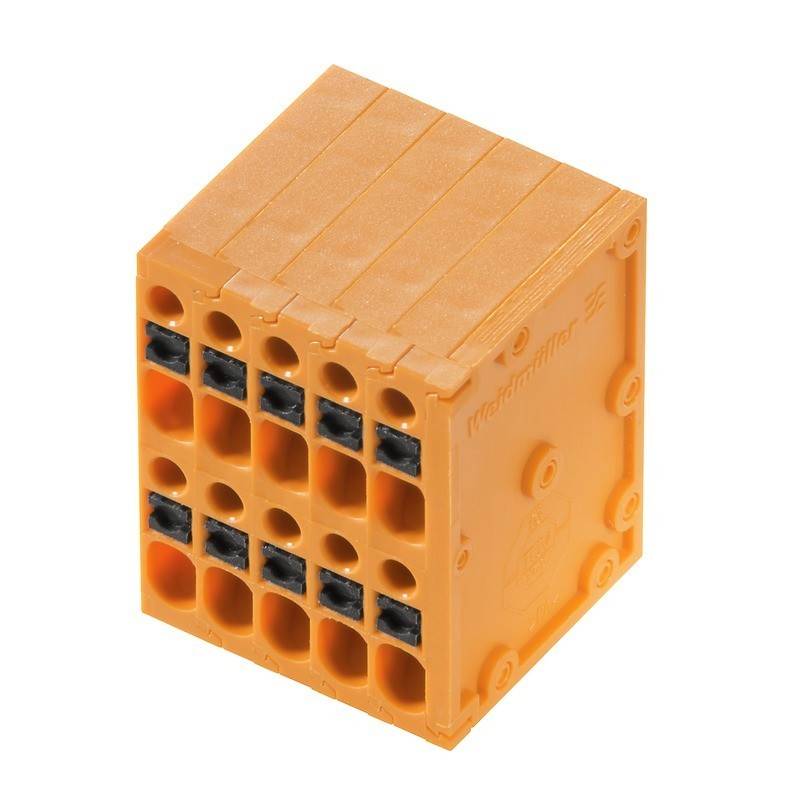

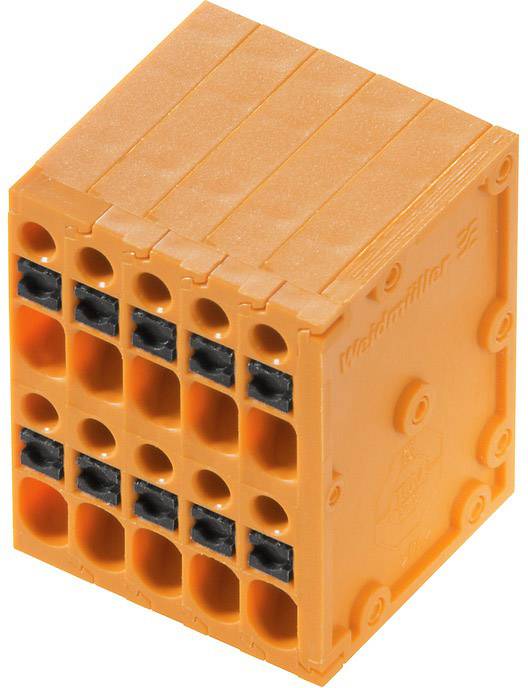

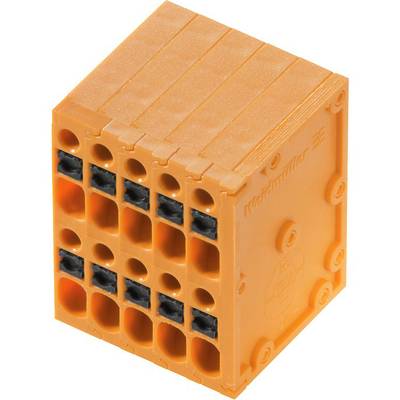

Weidmüller 2000980000 Spring-loaded terminal 1.5 mm² Number of pins 12 Orange 50 pc(s)
Product type
Spring-loaded terminal
CS
3.5 mm
Pins per row
12
Number of pins
12
Connection
Print
Push-in connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 3.90 / piece)
€ 194.99
incl. VAT
14-day return policy included
Highlights & Details
Spring-loaded terminal
Our service for you
Technical specifications
- Type
LS2HF 3.50/12/90 3.5SN OR BX
- Product type
Spring-loaded terminal
- CS
3.5 mm
- No. of rows
2
- Pins per row
12
- Number of pins
12
- Series
LS
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Connection
Print
Push-in connector
- Nominal current
12.5 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
12.5 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
1.5 mm²
- Cross section (inflexible) (max.)
1.5 mm²
- AWG (min.)
26
- Connector orientation
Parallel (to the PCB)
- AWG max.
16
- Contact material
Copper alloy
- Enclosure material
Polyamide
- Factory colour
Orange
- Weight
11.18 g
- Manufacturer part #
2000980000
- Industrial packaging
Yes
- Content
50 pc(s)
- Nominal voltage
150 V
- Width
26 mm
- Height
27.7 mm
- Length
18 mm
- Type
LS2HF 3.50/12/90 3.5SN OR BX
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1513799 Weidmüller 2000980000 Spring-loaded terminal 1.5 mm² Number of pins 12 Orange 50 pc(s)
User & Safety Instructions
User & Safety Instructions 1513799 Weidmüller 2000980000 Spring-loaded terminal 1.5 mm² Number of pins 12 Orange 50 pc(s)
